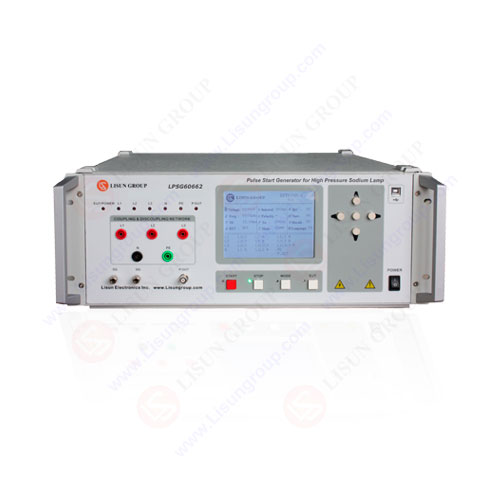

LISUN LPSG60662 pulse start generator for high-pressure sodium lamp starting tests to IEC 60662: 0.1–3kV pulses on the sine wave, 0–360° phase, 16A CDN.
Enquire About This Product
High-pressure sodium (HPS) lamps need a high-voltage pulse from the ignitor to start. The LPSG60662 superimposes a controlled pulse of 0.1 to 3kV on the mains sine wave, at a set phase angle, to test lamp starting performance to IEC 60662:2011 and GB/T 13259-2005.
The pulse-forming circuit uses an imported high-voltage discharge switch for stable output over long test runs and consistent waveforms. Phase is adjustable from 0° to 360° in 1° steps, the output impedance is 40Ω, and a 16A single-phase coupling/decoupling network is built in. Test modes are programmable, and parameters can be updated as standards change.
| Specification | LPSG60662 |
|---|---|
| Waveform | Pulse superimposed on the sine wave |
| Open-circuit output voltage | 0.1~3kV |
| Burst period | 20ms |
| Polarity | Positive |
| Phase | Synchronised, 0°~360° in 1° steps |
| Output impedance | 40Ω |
| Coupling/decoupling network | 16A single phase, built in |
| Supply | AC 220V (110V option) ±10%, 50/60Hz |
IEC 60662:2011 (high-pressure sodium vapour lamps performance) and the Chinese equivalent GB/T 13259-2005.
LISUN states it can test various types of lighting, and parameters can be upgraded to suit other standards.
