LISUN PRC-6M Photometric Calibration System

Overview

The PRC-6M is a photometric bench for checking and calibrating illuminance meters, illuminance probes and luminous intensity across the visible range (380–780nm). It is a core piece of equipment for photometry labs and calibration bodies, and meets the requirements of JJG 245 (verification of illuminometers) and JJG 246 (luminous intensity standard lamps).

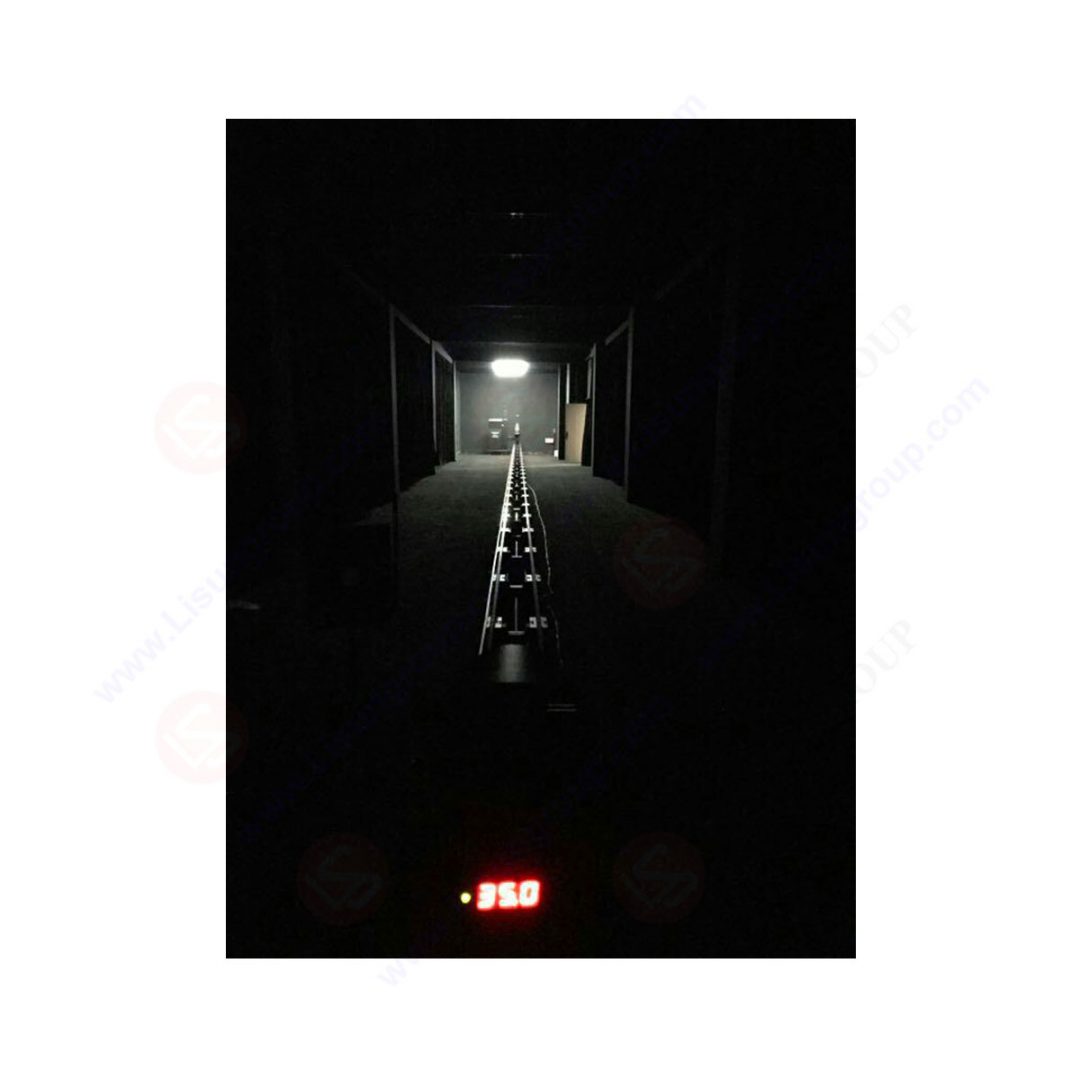

The system is a 6m optical rail with four baffles, an adjustable lamp holder, a rotating mount that switches the reference and test illuminometers onto the same axis, a 2856K luminous intensity standard lamp of about 500cd and a reference illuminometer (0.1 to 200,000 lx), both with NIM calibration certificates, and a precision DC supply. The PRC-2M and PRC-4M have the same configuration on 2m and 4m rails.

Key Specifications

ItemQtySpecification
Optical rail1 set6m long (PRC-4M: 4m; PRC-2M: 2m), 6060 aluminium profile base
Baffles4Φ18cm aperture, V-block base
Intensity lamp adjuster1 setHeight and universal adjustment
Illuminometer rotating device1 setCoaxial switching of reference and test illuminometers
Luminous intensity standard lamp1LISL-400, 2856K, about 500cd, NIM calibration certificate
Reference illuminometer1 set0.1~200,000 lx, NIM calibration certificate
DC power supply1 set1mV / 0.1mA accuracy

Darkroom requirement: 3m wide by rail length plus 2m long, with matte black walls, ceiling and floor and controlled ambient temperature.

Features

Applications

Frequently asked questions

What room do I need?

A darkroom 3m wide and 2m longer than the rail, painted matte black throughout, with controlled temperature. For the PRC-6M that is about 3×8m.

Is the standard lamp traceable?

Yes. The LISL-400 standard lamp and the reference illuminometer come with NIM (China National Institute of Metrology) calibration certificates.
