PHOTO-200 Lux, PPFD and UV Irradiance Meters – LISUN

PHOTO-200 / 200L / 200P / 200DLI / 200B / 200UV / 200UVZ / 200R / 200IR / 200IRZ

LISUN PHOTO-200 pocket meters: lux, luminance, PPFD/DLI, blue, red, UV (222/254/365nm) and NIR irradiance. Class A, Bluetooth and USB, 100g.

Lighting & Photometric Test Instruments
Lux / Irradiance Meter
Pocket / Handheld
Class A photometer (±4% reading ±1 digit)
Enquire About This Product
LISUN PHOTO-200 Lux, PPFD and UV Irradiance Meters

Overview

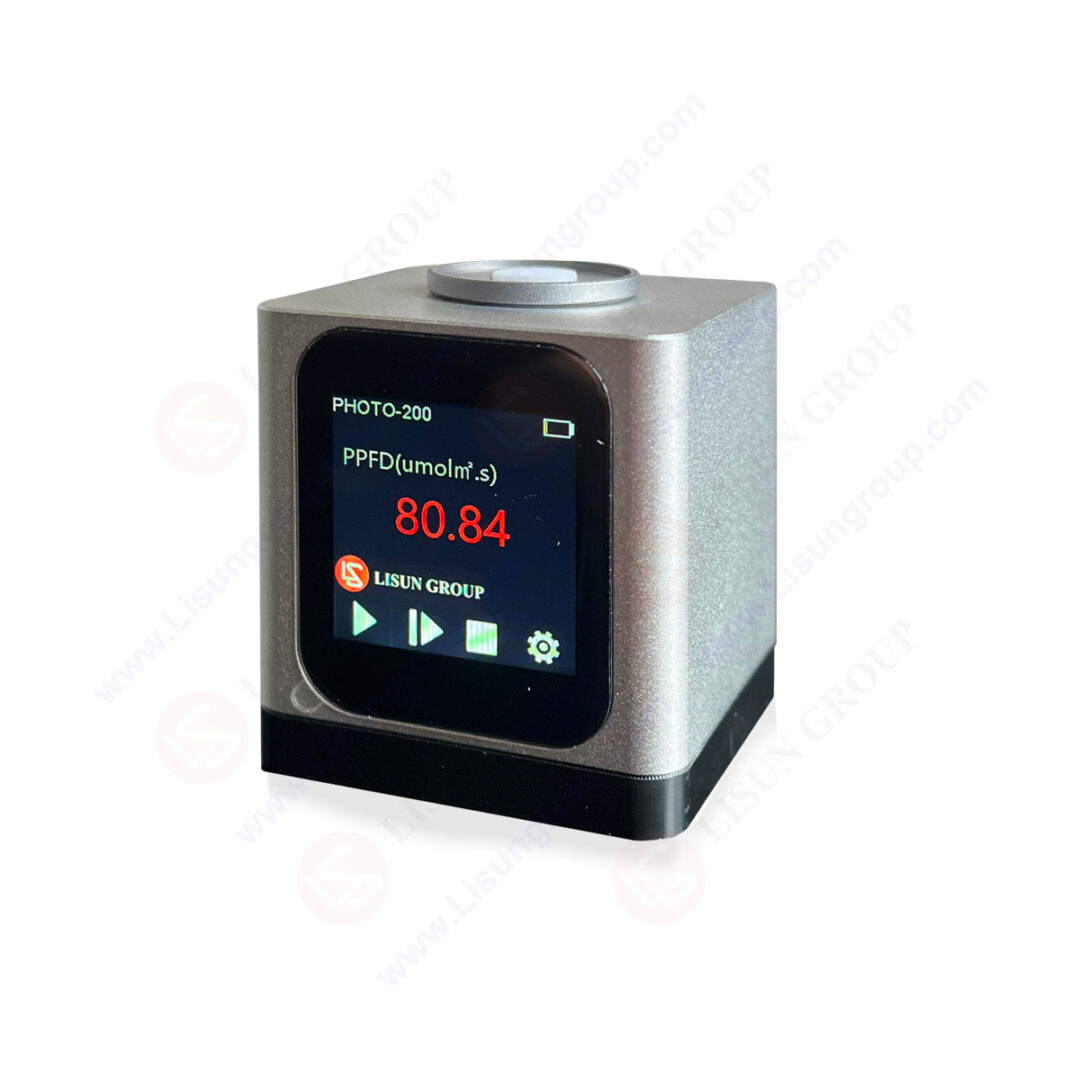

The PHOTO-200 series are 100g pocket light meters in an aluminium body, with a 1.54-inch rotating touch screen, Bluetooth and USB, and 12 hours of use per charge. Ten versions cover illuminance, luminance, horticultural PPFD and DLI, blue and red light, UV and near-infrared irradiance, all with Class A detector accuracy and ±0.5% reproducibility.

Each meter shows the reading plus average, maximum and minimum values, supports upper and lower limits for pass/fail sorting, and logs light change curves in the PC software or mobile app. They are used for on-site lighting checks, light source R&D, production quality monitoring and plant factories. Secondary development is supported.

Key Specifications

Models

ModelMeasuresRange
PHOTO-200Illuminance (380–780nm)0.1~500,000 lx
PHOTO-200LLuminance (380–780nm)0.1~500,000 cd/m²
PHOTO-200PIlluminance and PPFD (400–700nm)0.1~500,000 μmol/m²·s
PHOTO-200DLIPPFD and daily light integral0.1~500,000 μmol/m²·s; μmol/m²·d
PHOTO-200BBlue light irradiance (peak 460nm)0.1~200,000 μW/cm²
PHOTO-200UVUV irradiance (222, 254 or 365nm)0.1~500,000 μW/cm²
PHOTO-200UVZUV irradiance, 254nm and 365nm0.1~500,000 μW/cm²
PHOTO-200RRed light irradiance (peak 650nm)0.1~200,000 μW/cm²
PHOTO-200IRNIR irradiance (850 or 940nm)0.1~500,000 μW/cm²
PHOTO-200IRZNIR irradiance, 850nm and 940nm0.1~500,000 μW/cm²

Common specifications

SpecificationPHOTO-200 series
Detector accuracyClass A (±4% reading ±1 digit)
Reproducibility±0.5%
Display1.54-inch IPS touch screen, rotates 180°; PC and mobile app
Communication / chargingUSB, Bluetooth; Type-C
Battery1,600mAh lithium, 12 hours continuous use
Size / weight65×60×60mm; 100g, aluminium alloy body

Features

Applications

Frequently asked questions

Which PHOTO-200 measures grow lights?

The PHOTO-200P measures PPFD and illuminance; the PHOTO-200DLI adds the daily light integral.

Can it measure UVC lamps?

Yes. The PHOTO-200UV is available at 222nm or 254nm (UVC) or 365nm (UVA), and the PHOTO-200UVZ measures 254nm and 365nm together.
