PFM61000-8 Power Frequency Magnetic Field Generator – LISUN

PFM61000-8A / PFM61000-8B

LISUN PFM61000-8 power frequency magnetic field immunity generators to IEC 61000-4-8, ISO 11452-8 and MIL-STD-461G: up to 1000A/m, 50/60Hz, 1m coil.

EMC & EMI Test Equipment
Magnetic Field Generator
Floor-Standing System
IEC 61000-4-8:2020; EN 61000-4-8:2021; ISO 11452-8:2015; MIL-STD-461G; GB/T 17626.8-2006; GJB 151B-2013
Enquire About This Product

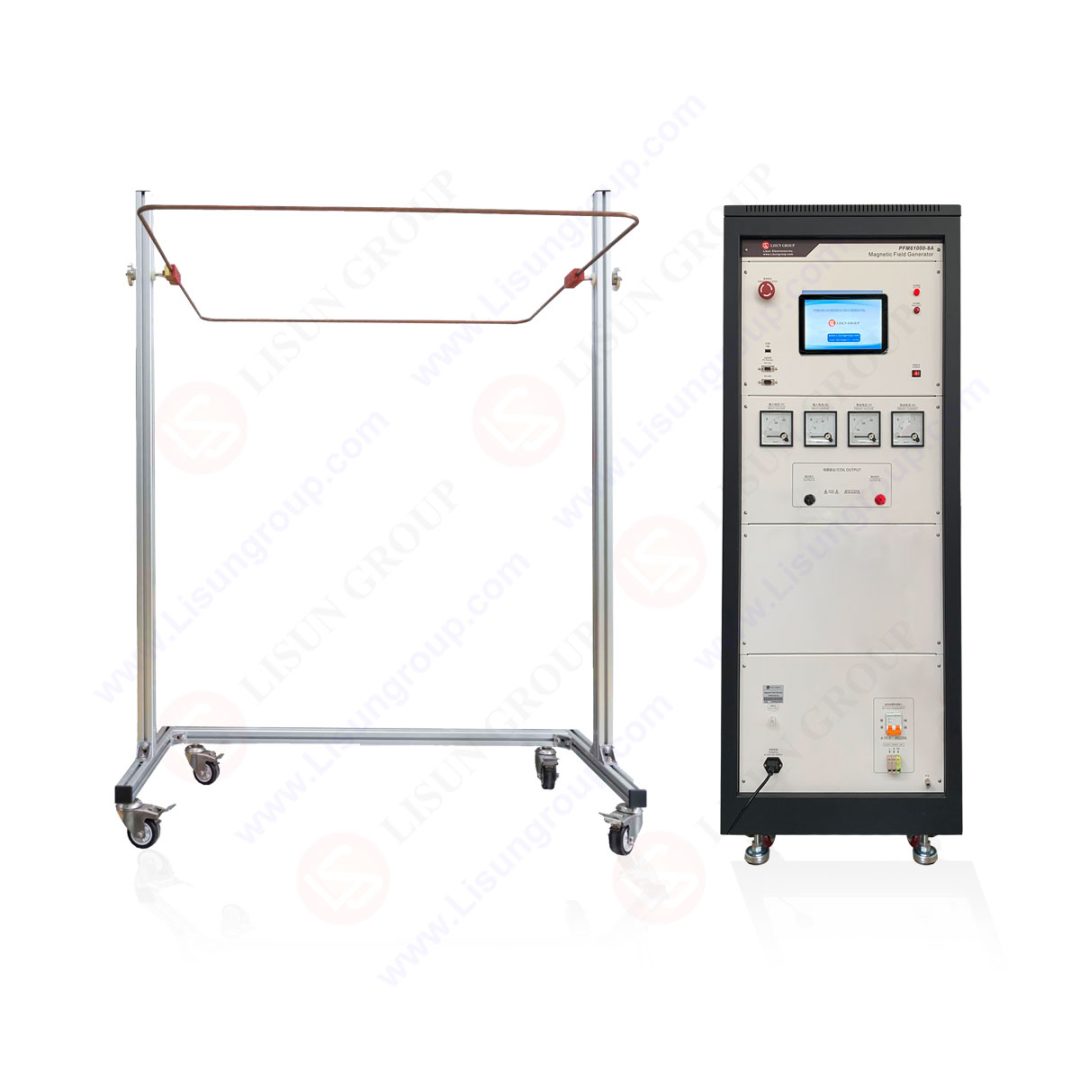

LISUN PFM61000-8 Power Frequency Magnetic Field Generator

Overview

The PFM61000-8 series produces 50Hz or 60Hz magnetic fields like those near power cables, transformers and switchgear, to test how electronic equipment behaves in them. It follows IEC 61000-4-8 for general equipment, ISO 11452-8 for automotive components and MIL-STD-461G for military equipment.

Long-duration fields from 1A/m and short-duration fields up to 1000A/m are generated in a 1×1m induction coil that can be set horizontal, vertical or at any angle and raised or lowered, supporting both immersion and proximity test methods. Output current distortion is under 8%. An Android touch screen in English and Chinese controls the test.

Key Specifications

SpecificationPFM61000-8APFM61000-8B
Field strength, long duration1~100A/m1~400A/m
Field strength, short duration100~1000A/m400~1000A/m
DurationLong: 1s~999min; short: 1s~5s
Output current THD<8%
Coil orientationHorizontal, vertical or any angle through 360°, height adjustable; immersion and proximity methods
Frequency50Hz / 60Hz
Coil1×1m single-turn1×1m multi-turn
ControlAndroid touch screen, English and Chinese

Features

Applications

Frequently asked questions

What is the difference between the A and B models?

The PFM61000-8B uses a multi-turn coil and reaches 400A/m continuously; the PFM61000-8A uses a single-turn coil and reaches 100A/m continuously. Both reach 1000A/m for short durations.

Can it be used for automotive testing?

Yes. LISUN lists ISO 11452-8:2015 among its standards.
