OTC-150A Ozone Aging Test Chamber – LISUN

OTC-150A / OTC-500A

LISUN OTC ozone chambers for rubber, cable and textiles to ISO 1431-1, ASTM D1149 and IEC 60811-403: 10–1000pphm, 0–60°C, static and dynamic stretching.

Environmental Test Chambers
Ozone Test Chamber
Floor-Standing Chamber
ISO 1431-1:2012; ASTM D1149-2020; ASTM D1171-2020; ASTM D3395-2014; ASTM D518-2016; ASTM D3041-1999; IEC 60811-403; DIN 53509-2:2001; AATCC 109-2016; AATCC 129-2016; ISO 105-G03:1993
Enquire About This Product

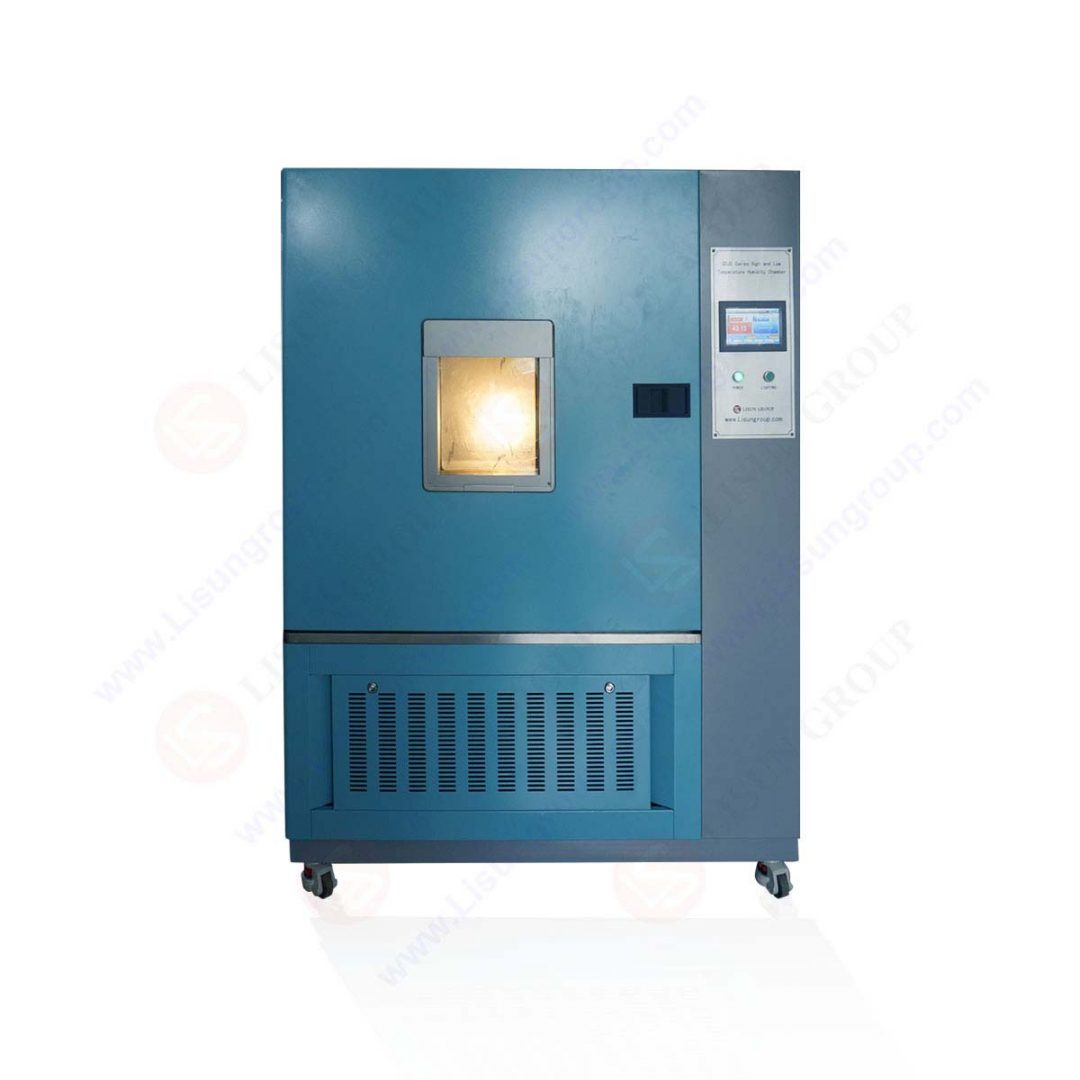

LISUN OTC-150A Ozone Aging Test Chamber

Overview

Ozone in the air attacks rubber and some polymers, causing surface cracks, especially where the material is stretched. It also fades some dyed textiles. The LISUN OTC ozone chamber reproduces this in the laboratory. A silent-discharge tube generates ozone at a controlled concentration while temperature and humidity are held steady, and samples can be held stretched or flexed to simulate stress in service.

Typical uses are ozone cracking of automotive rubber seals, ozone ageing of cable sheaths to IEC 60811-403, ozone colour fastness of outdoor textiles to AATCC 109, AATCC 129 and ISO 105-G03, and rubber testing to ISO 1431-1, ASTM D1149, ASTM D3395 and DIN 53509-2.

Stretching modes

Ozone concentration, temperature and humidity are monitored continuously. A 7-inch touchscreen controls the test, and data can be exported to Excel by USB or stored on a remote computer over Ethernet. At the end of the test an exhaust cycle clears the ozone before the chamber is opened.

Key Specifications

ModelOTC-150AOTC-500A
Working space500 × 500 × 600mm700 × 800 × 900mm
PowerSingle phase 220–240V, 50/60Hz, 5kVAThree phase 380V, 50/60Hz, 6.5kVA
Ozone concentration10–1000pphm (±2–3pphm)
Temperature range0–60°C (±1°C)
Humidity range20–90%RH (±5%RH, at 20–40°C)
Stretching modesStatic, dynamic, intermittent dynamic
Elongation5–45%
Stretching frequency0–30 cycles/min
Maximum stretch length0–90mm, adjustable
Sample travel speed8–25mm/s
Air flow velocity600 ±100mm/s, forced circulation
Control7-inch touchscreen
Data exportUSB (Excel) and RJ45
Operating environment0–30°C, ≤85%RH; noise ≤75dB

Features

Applications

Frequently asked questions

What ozone concentration is typical?

Many rubber methods use 50pphm, but standards vary from about 25 to 200pphm. The OTC chamber covers 10 to 1000pphm.

What is the difference between the two models?

Working volume and supply: the OTC-150A is 500 × 500 × 600mm on single phase, the OTC-500A 700 × 800 × 900mm on three phase.
