IMF61000-9 and DOMF61000-10 Magnetic Field Immunity – LISUN

IMF61000-9 / IMF61000-9A / DOMF61000-10

LISUN impulse (IEC 61000-4-9) and damped oscillatory (IEC 61000-4-10) magnetic field immunity generators: up to 3000A/m impulse, 100kHz/1MHz damped, 1m coil.

EMC & EMI Test Equipment
EMS Test System
Floor-Standing System
IEC 61000-4-9:2016; EN 61000-4-9:2016; IEC 61000-4-10:2016; EN 61000-4-10:2017; ANSI C37.90; GB/T 17626.9-2025; GB/T 17626.10-2017; GB/T 14598.13-2008
Enquire About This Product
LISUN IMF61000-9 and DOMF61000-10 Magnetic Field Immunity

Overview

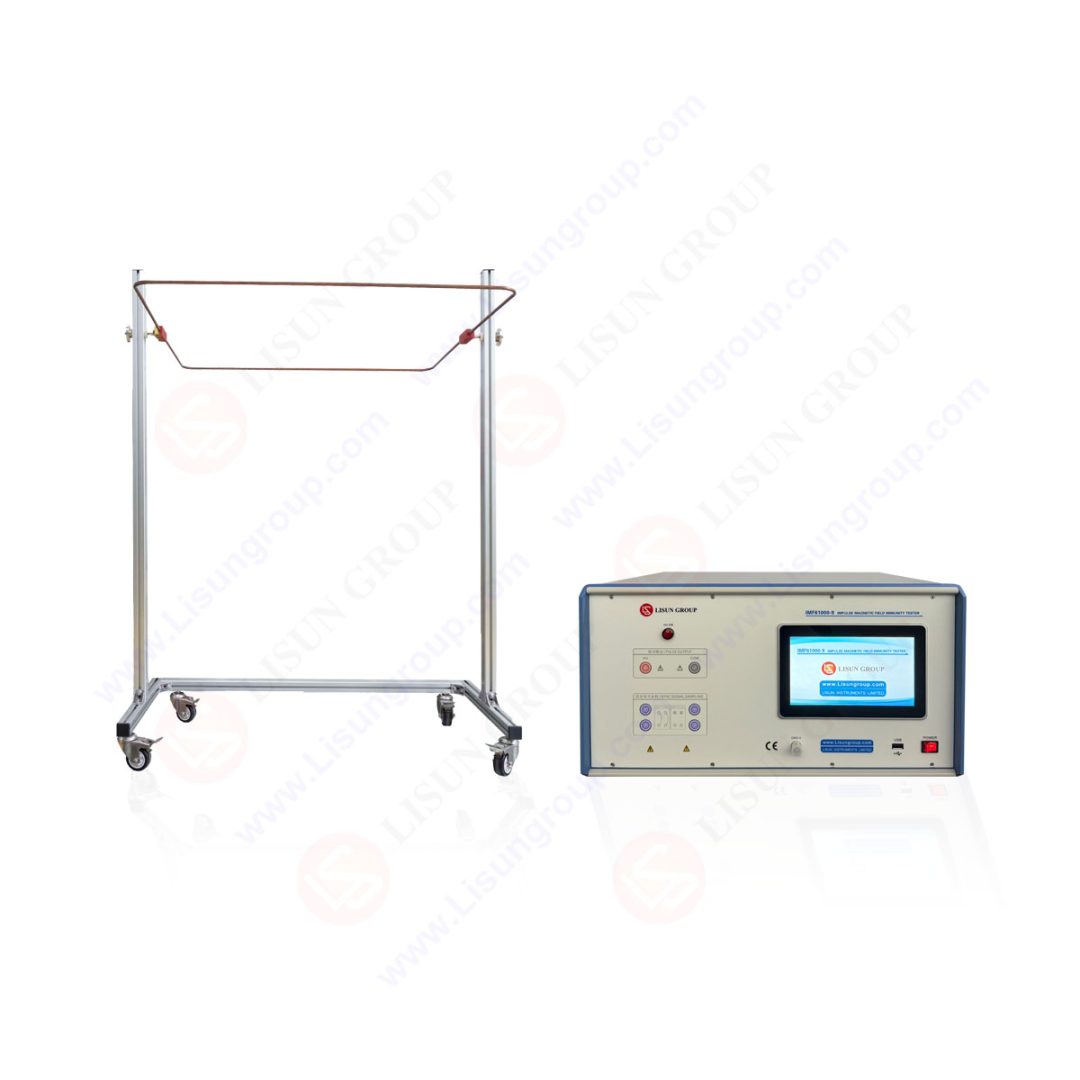

Two LISUN systems cover the transient magnetic field immunity tests in the IEC 61000-4 series, both using a 1×1m single-turn coil and a 10-inch Android touch screen in English and Chinese.

IMF61000-9 impulse magnetic field generator

The IMF61000-9 produces the impulse magnetic field of IEC 61000-4-9, which simulates the field from lightning strikes on buildings and faults in power systems. A high-voltage pulse discharge drives the coil with a 6.4/16μs current waveform, giving 100 to 1,200A/m (IMF61000-9) or 100 to 3,000A/m (IMF61000-9A), with programmable polarity, phase, count and interval.

DOMF61000-10 damped oscillatory magnetic field system

The DOMF61000-10 produces the damped oscillating field of IEC 61000-4-10, which simulates fields from switching operations in high-voltage substations. It generates 100kHz or 1MHz damped oscillations up to 120A/m, decaying to 50% within 3 to 6 cycles, and also covers ANSI C37.90 for protective relays.

Key Specifications

IMF61000-9 impulse magnetic field

SpecificationIMF61000-9IMF61000-9A
Field strength100~1,200A/m ±10%100~3,000A/m ±10%
Short-circuit current waveform6.4μs ±30% / 16μs ±30%
Open-circuit voltage waveform1.2μs ±20% / 50μs ±20%
Output impedance2Ω ±0.25Ω
PolarityPositive, negative, automatic
Phase angle0~360°
Discharge count / interval1~9,999 / 5~9,999s
Coil1×1m single turn

DOMF61000-10 damped oscillatory magnetic field

SpecificationDOMF61000-10
Field strength0~120A/m, continuously adjustable
WaveformDamped oscillating sine wave, decaying to 50% of first peak within 3–6 cycles
Oscillation frequency100kHz and 1MHz, ±10%
Repetition rate≥40/s at 100kHz; ≥400/s at 1MHz
Rise time75ns ±20%
Test duration / interval1~9,999s / 1~9,999s
Coil1×1m single turn

Features

Applications

Frequently asked questions

When is each test required?

IEC 61000-4-9 (impulse) and IEC 61000-4-10 (damped oscillatory) apply mainly to equipment installed in power stations, substations and heavy industrial sites. Your product standard will say which levels apply.

What is the difference between IMF61000-9 and IMF61000-9A?

The A model reaches 3,000A/m instead of 1,200A/m.
