M9822 Series — LISUN Programmable DC Electronic Load
LISUN M9822 Series Programmable DC Electronic Load — 8 models from 300W/30A to 4500W/240A, 0.1mV/0.1mA resolution, CR-LED test mode, CC/CV/CR/CP modes, battery test. For LED driver, power supply and charger testing.
Enquire About This Product
Overview
The M98 series programmable electronic load uses AD+DA technology to achieve fast, high-precision measurement. The 0.1mV/0.1mA resolution lets the instrument display small changes in voltage and current that a coarser load would miss. The CR-LED test mode simulates the diode turn-on voltage rise that a real LED load presents, giving stable, repeatable test voltage and current instead of the instability a traditional fixed-resistor load produces — a genuine reflection of LED driver load conditions rather than an approximation of one.

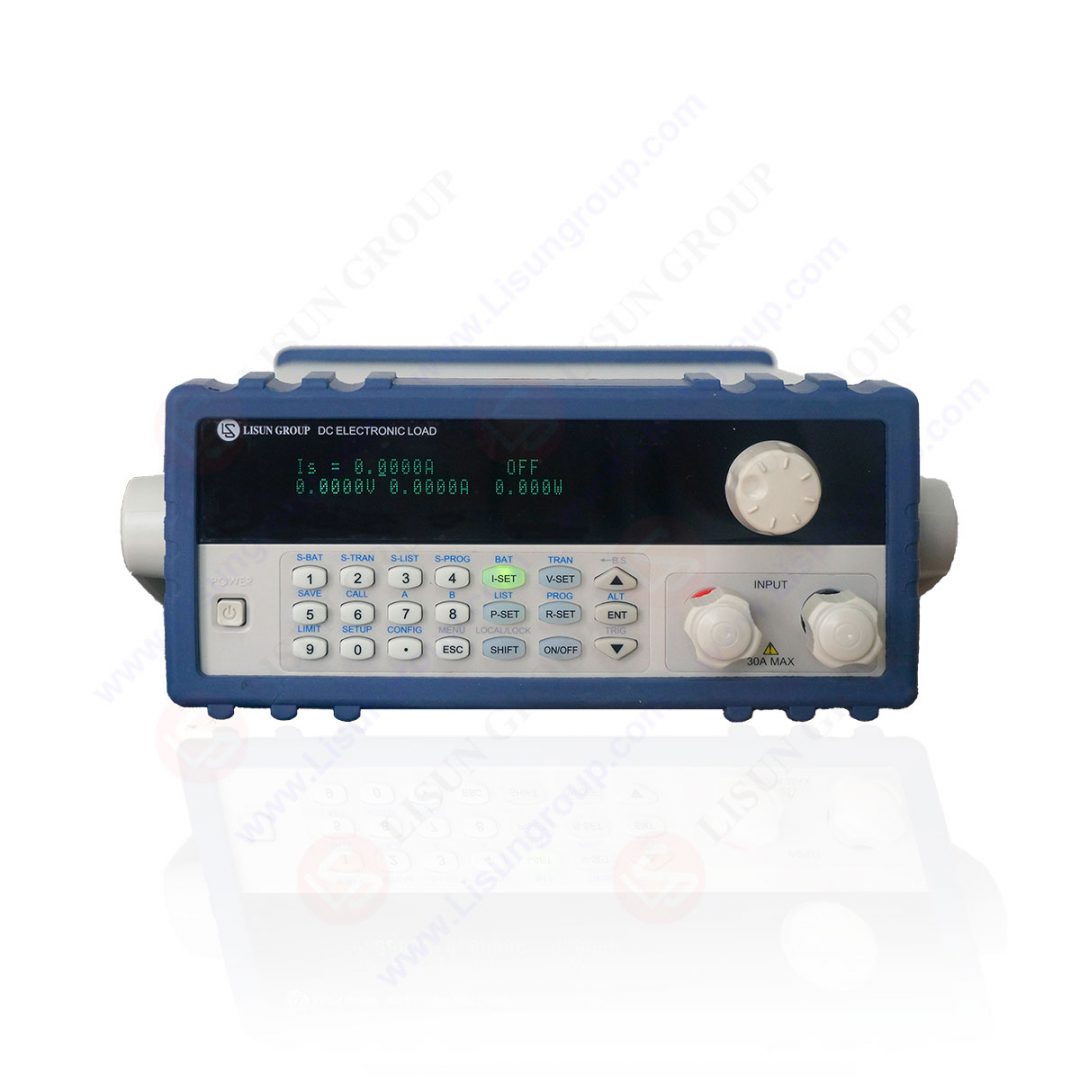

The series spans 8 models covering 300W to 4500W and up to 240A, sharing the same core measurement technology and test modes. Lower-power models (M9822, M9822B) use a VFD display; higher-power models from M9822A upward use an LCD touch screen. See the table below for how the models differ.
All models share: 500kHz high-speed sampling AD with real-time Vpp/Vp+/Vp-/Ipp/Ip+/Ip- measurement; CR-LED test mode; OCP test function with automatic protection-point and Pmax capture; up to 50kHz dynamic load frequency with settable current slope; time measurement for OVP protection point, power start-up and hold time; battery test mode with capacity, internal resistance and curve drawing; list test mode for multi-condition pass/fail sequencing; USB HOST with one-button screen copy; 100 internal + 500 external (U disk) setting files; Handler and RS232C interfaces standard.
Key Specifications
| Model | Voltage | Current | Power | Display |
|---|---|---|---|---|
| M9822 | 0–150V | 0.1mA–30A | 300W | VFD |
| M9822B | 0–500V | 0.1mA–15A | 300W | VFD |
| M9822A | 0–500V | 0.1mA–60A | 600W | LCD Touch |
| M9823 | 0–150V | 0.1mA–120A | 1200W | LCD Touch |
| M9823A | 0–500V | 0.1mA–120A | 1200W | LCD Touch |
| M9824A | 0–500V | 0.1mA–120A | 2400W | LCD Touch |
| M9835A | 0–500V | 0.1mA–240A | 2400W | LCD Touch |
| M9843A | 0–500V | 0.1mA–240A | 4500W | LCD Touch |
Voltage/current accuracy ±(0.05%+0.03–0.05%FS) across all models. Exact figures confirmed at quote stage.
Features
- 8 models spanning 300W to 4500W, up to 240A
- CR-LED test mode — true LED load simulation, not fixed-resistor approximation
- 500kHz sampling AD; real-time Vpp/Ip peak measurement
- 0.1mV / 0.1mA resolution
- OCP test with automatic protection-point and Pmax capture
- Battery test mode: capacity, internal resistance, discharge curve
- List test mode with pass/fail comparator
- CC, CV, CR, CP operation modes
- USB HOST, RS232C, Handler interface standard
Applications
LED driver load simulation and testing; Switching power supply and charger testing; Battery discharge and capacity testing; Production line load QC; R&D power supply characterisation
