LSP-KVAS PWM Type AC Power Supply (3kVA–180kVA) – LISUN

LSP-3KVAS to LSP-60KVAS (single phase) / LSP-15KVAST to LSP-180KVAST (three phase)

LISUN LSP-KVAS variable frequency AC power supplies: 3kVA to 60kVA single phase and 15kVA to 180kVA three phase, 0–300V, 40–70Hz, distortion ≤1%.

AC & DC Power Supply
AC Power Source
Floor-Standing Instrument
CE
Enquire About This Product

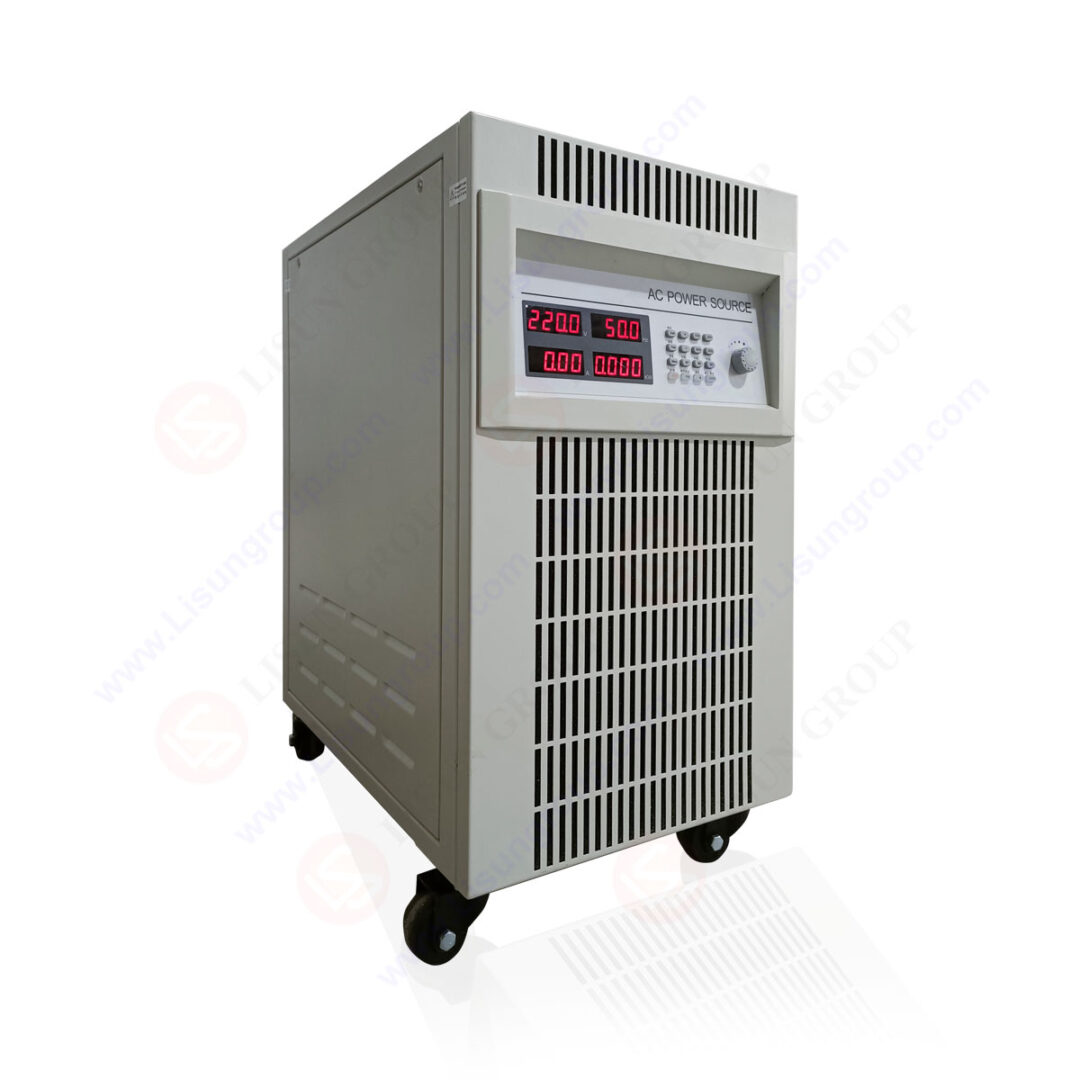

LISUN LSP-KVAS PWM Type AC Power Supply (3kVA–180kVA)

Overview

The LSP-KVAS series are high-power variable frequency AC power supplies built for testing household appliances, motors and compressors. They replace traditional voltage regulators and frequency converters with an accurate, efficient source that can simulate any mains voltage and frequency in the world.

An IGBT SPWM design gives output distortion of 1% or less, efficiency of at least 86%, and transient recovery within 20ms. Output is 0–150V or 0–300V, adjustable from 40Hz to 70Hz, with an adjustable current protection limit and overload protection. Single-phase models run from 3kVA to 60kVA and three-phase models from 15kVA to 180kVA, all on wheels for moving between labs. 110V or 220V input versions can be built for US-standard countries.

Key Specifications

Single-phase models

ModelLSP-3KVASLSP-5KVASLSP-10KVASLSP-15KVASLSP-20KVASLSP-30KVASLSP-45KVASLSP-60KVAS
Output power3kVA5kVA10kVA15kVA20kVA30kVA45kVA60kVA
InputSingle phase 220V ±10%Three phase 380V ±10%
Current (0~150V)27A45A90A136A182A272A408A544A
Current (150~300V)13.5A22.5A45A68A91A136A204A272A
Size W×H×D (mm)350×635×530470×875×700530×1010×800600×1210×900

Three-phase models

ModelLSP-15KVASTLSP-30KVASTLSP-45KVASTLSP-60KVASTLSP-90KVASTLSP-120KVASTLSP-150KVASTLSP-180KVAST
Output power15kVA30kVA45kVA60kVA90kVA120kVA150kVA180kVA
InputThree phase 380V ±10%, 50/60Hz
Current (low range)27A45A90A136A182A272A408A544A
Current (high range)13.5A22.5A45A68A91A136A204A272A
Size W×H×D (mm)600×1135×1010700×1385×1240750×1445×1385800×1845×1400

Common specifications

SpecificationValue
Output voltage0~150V / 0~300V, ≤±(0.2% + 0.2% FS)
Output frequency40~70Hz, stability ≤±0.1%
Waveform distortion≤1% (resistive load)
Transient recovery≤20ms
Efficiency≥86%
Overload100~110% for 30s; 110~120% for 10s; >120% immediate protection
ProtectionOver-voltage, over-current, overload, short circuit with alarm

Features

Applications

Frequently asked questions

Which size do I need?

Choose a model rated above the apparent power (kVA) of the product under test, allowing for its starting current.

Can it supply 110V/60Hz products?

Yes. Output is adjustable from 0 to 300V and 40 to 70Hz, so it can simulate any national mains supply.
