LS9955 / LS9956 Automatic Electrical Safety Tester – LISUN

LS9955 / LS9956

LISUN LS9955/LS9956 safety testers: AC/DC hipot to 4kV, insulation resistance, leakage current, ground bond to 30A and power test (LS9956), 50 programs.

Electrical Safety Test Equipment
Automatic Safety Test System
Bench-top Instrument
IEC/EN 60335-1; IEC 60598-1; UL 60335-1; IEC/EN 60950-1; IEC 60601-1; GB 4706.1-2024; GB 7000.1-2023; GB 4943.1-2022; GB 9706.1-2020; GB 19212.1-2021
Enquire About This Product

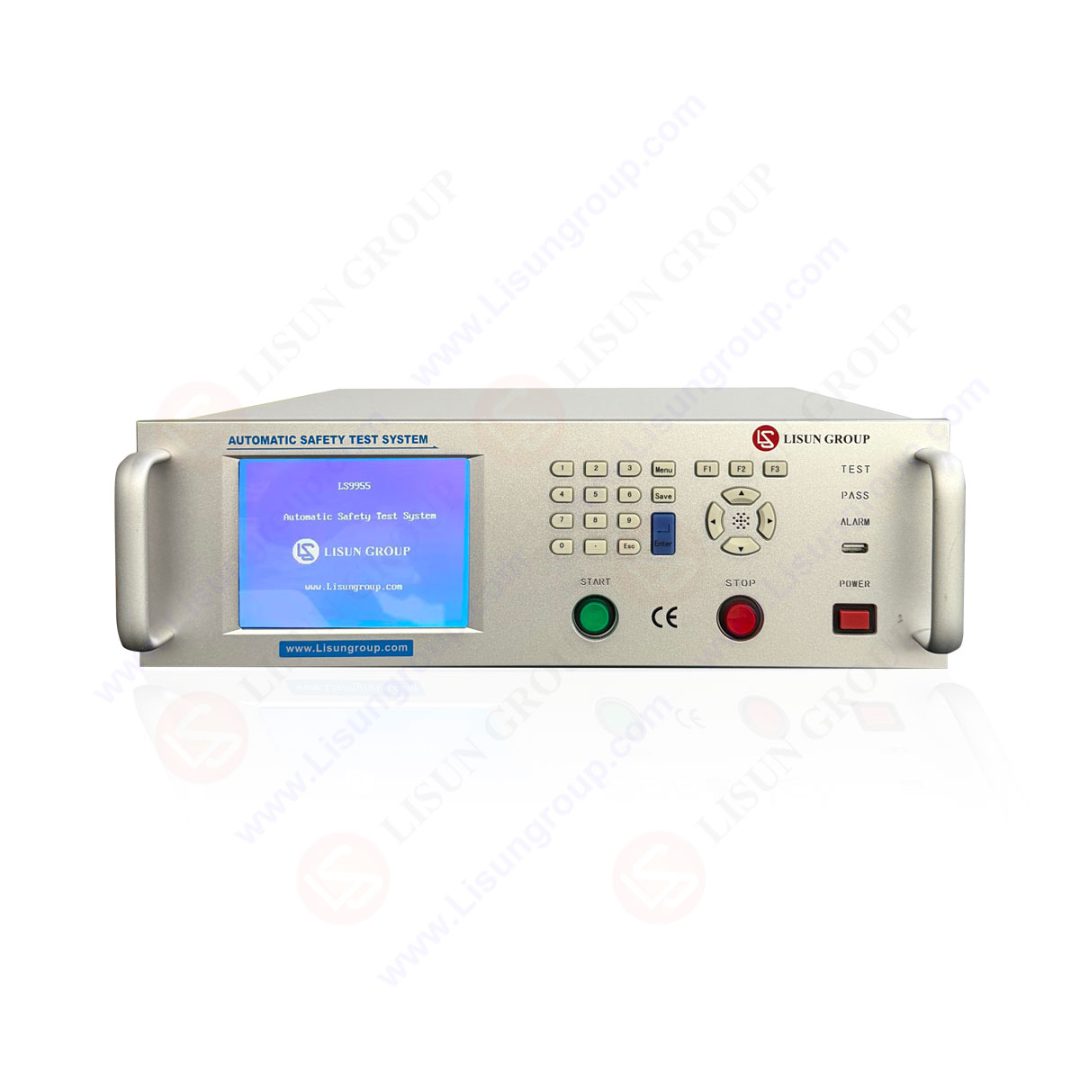

LISUN LS9955 / LS9956 Automatic Electrical Safety Tester

Overview

Production-line safety testing of electrical products usually needs several instruments. The LS9955 and LS9956 combine them: AC/DC withstand voltage (hipot), insulation resistance, leakage current and ground bond resistance in one unit, with the LS9956 adding a power test, so no separate instruments are needed.

Test parameters are set visually, results are shown in real time, and failures trigger audible and visual alarms. 50 test programs of up to 8 steps each can be stored, covering both batch testing on production lines and custom sequences in R&D labs, such as multi-step hipot tests.

For the leakage current test, LISUN specifies its ITEU-SP1KS or ITUS-SP1KS isolation transformer or LSP-1KVAS AC source; the LS9956 power test also needs the LSP-1KVAS. LISUN recommends confirming which standards each model meets for your application, as requirements differ between standards.

Key Specifications

TestRangeAccuracy
Withstand voltage100~4000V AC/DC; AC 0.10~20.00mA, DC 0.10~12.00mA±3%
Insulation resistance1.00~2000MΩ at DC 100~1000V±3%
Leakage current0.10~20mA at AC 10~300V±0.3%
Ground bond0~600mΩ at AC 1~30A±3%
Power (LS9956 only)10~300V, 0.01~20A, 1~6000W, PF 0.2~1.0Class 0.5
Test time0~999.9s–
Memory50 programs × 8 steps–

Features

Applications

Frequently asked questions

What is the difference between the LS9955 and LS9956?

The LS9956 adds a power test (voltage, current, watts and power factor). The LS9955 does hipot, insulation resistance, leakage current and ground bond.

Do I need extra equipment?

For leakage current testing, LISUN specifies an ITEU-SP1KS or ITUS-SP1KS isolation transformer or an LSP-1KVAS AC source. The LS9956 power test needs the LSP-1KVAS.
