LS9923 Programmable Hipot and Insulation Tester – LISUN

LS9923

LISUN LS9923 combined hipot and insulation resistance tester: AC/DC 0-5kV with 20mA AC and 10mA DC, IR 1-2000MΩ at up to 1kV DC, 0-999.9s timer.

Electrical Safety Test Equipment
Withstanding Voltage & Insulation Tester
Bench-top Instrument
IEC/EN 60335-1; IEC 60598-1; UL 60335-1; IEC/EN 60950-1; IEC 60601-1; GB 4706.1-2024; GB 7000.1-2023; GB 4943.1-2022; GB 9706.1-2020; GB 19212.1-2021
Enquire About This Product

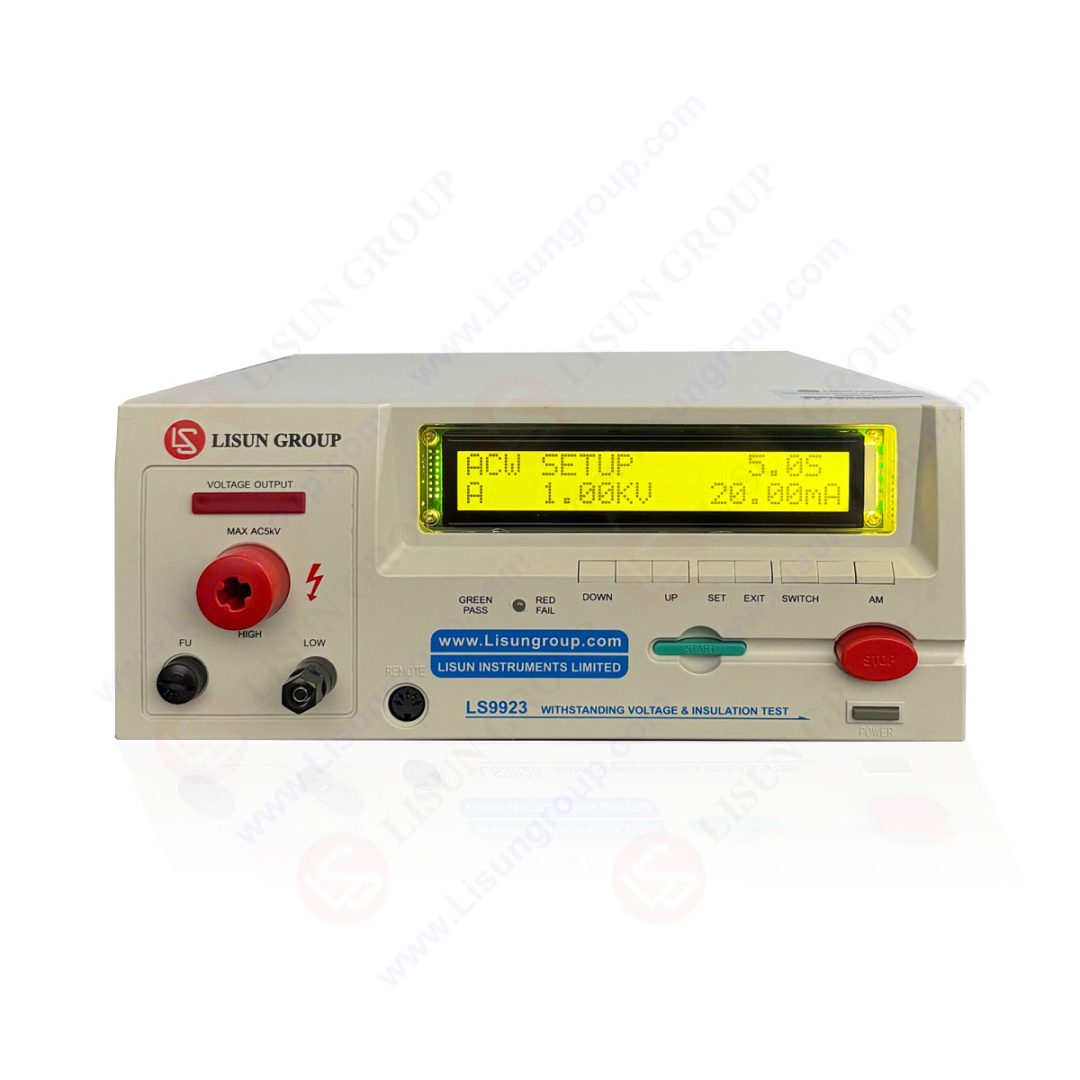

LISUN LS9923 Programmable Hipot and Insulation Tester

Overview

Most product safety standards call for both an insulation resistance test and a withstand voltage (hipot) test. The LS9923 combines them in one instrument, so both can be run in sequence without reconnecting the product.

It tests at AC or DC up to 5kV for withstand voltage, with trip currents up to 20mA AC and 10mA DC, and measures insulation resistance from 1 to 2000MΩ at up to 1kV DC. Overcurrent cut-off responds within milliseconds to limit damage to the product, and remote control, audible and visual alarms and automatic test timing make it suitable for production lines as well as labs.

Key Specifications

FunctionItemSpecification
Withstand voltageOutputAC/DC 0~5.00kV, ±(3% + 3 digits)
Withstand voltageTrip currentAC max 20mA; DC max 10mA
Withstand voltageTest time0~999.9s
Withstand voltageFrequency50Hz / 60Hz
Insulation resistanceOutputDC 0~1.00kV, ±(2% + 3 digits)
Insulation resistanceRange1.0~2000MΩ
Insulation resistanceAccuracy±(5% + 3 digits) below 100MΩ; ±(10% + 5 digits) above 100MΩ
Insulation resistanceTest time0~999.9s

Features

Applications

Frequently asked questions

How does it differ from the LS9955?

The LS9923 covers hipot and insulation resistance. The LS9955 adds leakage current and ground bond testing, and the LS9956 adds power measurement.
