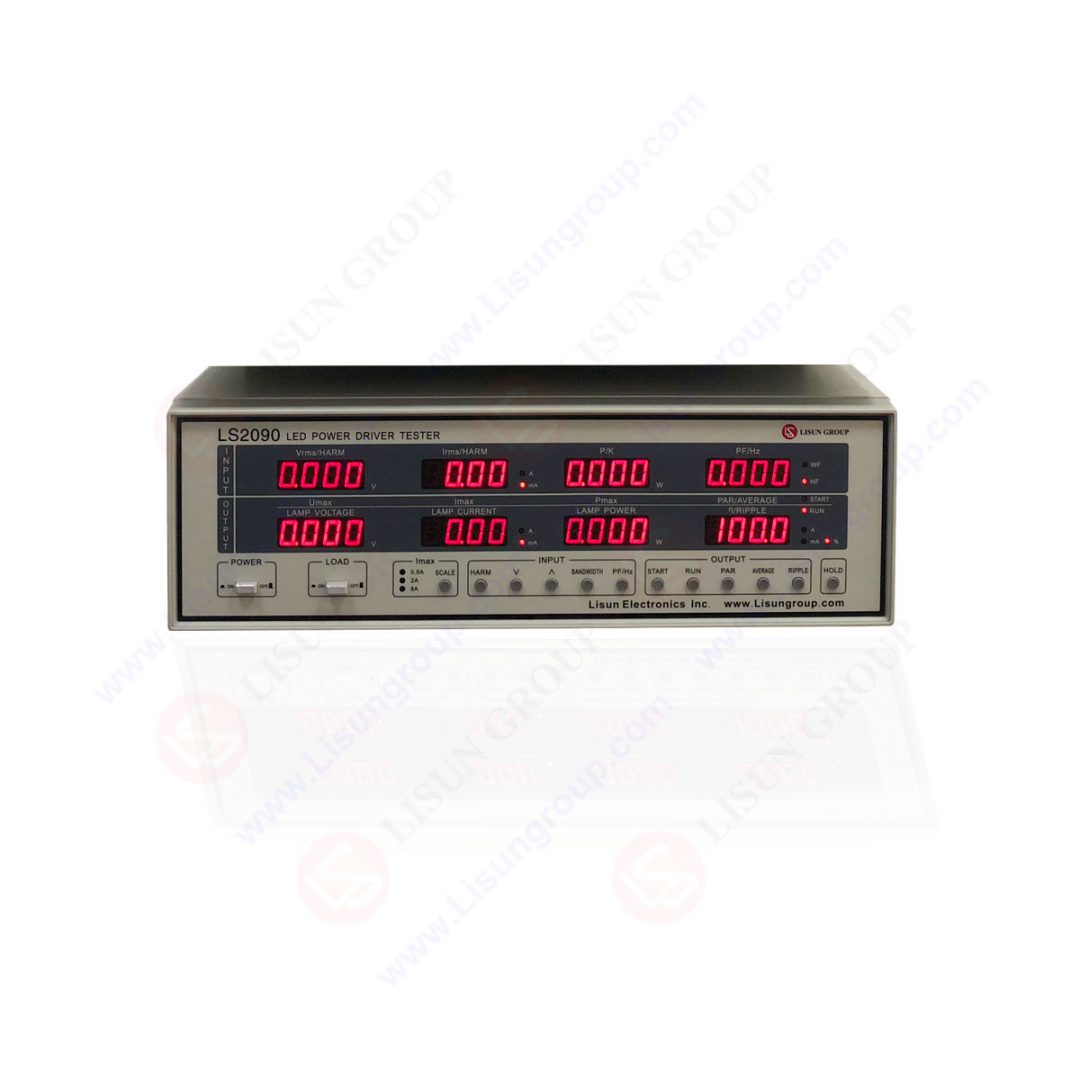

LISUN LS2090 LED Driver Tester

Overview

The LS2090 tests the performance of LED drivers (control gear for LED modules) to IEC 62384. It measures AC and DC input characteristics, AC and DC output characteristics including ripple current, the DC output start-up behaviour over the first 2 seconds, harmonics from the 0th to 50th order and the displacement factor, then generates a complete report.

It is normally used with a LISUN LSP-500VARC pure sine AC source and an M9822 DC electronic load to form a complete LED driver test system, with PC software in English and Chinese. Lighting manufacturers, test laboratories and research institutions use it for benchmarking, failure analysis and compliance checks. The optional LS2090-IEC software adds full-compliance harmonic testing to IEC 61000-3-2.

Key Specifications

TestMeasured parametersRange
Input (AC)Voltage, current, power, power factor, frequency; fundamental 45~65Hz, narrowband to 5kHz, wideband to 1MHz3~300V (CF 1.67); 5mA~2.7A (CF 3); 0.015~800W; PF 0~1.000
Input (DC)Voltage, current, power3~500V; 5mA~8A; 0.015W~4kW
Output (AC)Lamp voltage, current, power3~300V (CF 3); 5mA~2.7A (CF 3); 0.015~800W
Output (DC)Voltage, current, power, ripple current3~500V; 5mA~8A; 0.015W~4kW; ripple 5mA~2.5A
DC start-upLamp voltage and current curves over 0–2s3~500V; 5mA~8A
HarmonicsRatio, initial phase and peak phase, 0th to 50th order–
Displacement factorSupported–
SoftwareEnglish and Chinese; Windows 7/8/10/11–
OptionLS2090-IEC software for full IEC 61000-3-2 harmonic compliance–

Features

Applications

Frequently asked questions

What else do I need to test LED drivers?

LISUN pairs the LS2090 with an LSP-500VARC AC source to supply the driver and an M9822 DC electronic load to simulate the LED load.

Can it do IEC 61000-3-2 harmonic compliance testing?

It measures harmonics to the 50th order as standard. Full-compliance IEC 61000-3-2 testing needs the optional LS2090-IEC software.
