LPCE-3 Compact Integrating Sphere LED Test System – LISUN

LPCE-3 (LMS-7000)

LISUN LPCE-3 all-in-one LED test system: LMS-7000 spectroradiometer and molded integrating sphere built into one cabinet for flux, CCT, CRI and power.

Lighting & Photometric Test Instruments
LED Integrating Sphere Spectroradiometer System
Cabinet / Bench-top All-in-One System
CIE 13.3:1995; CIE 177:2007; CIE 84:1989; ANSI C78.377-2024; ANSI/IES LM-79-24; ANSI/IES LM-80-21; (EU) 2019/2015; GB/T 5702-2019; GB/T 24824-2022
Enquire About This Product

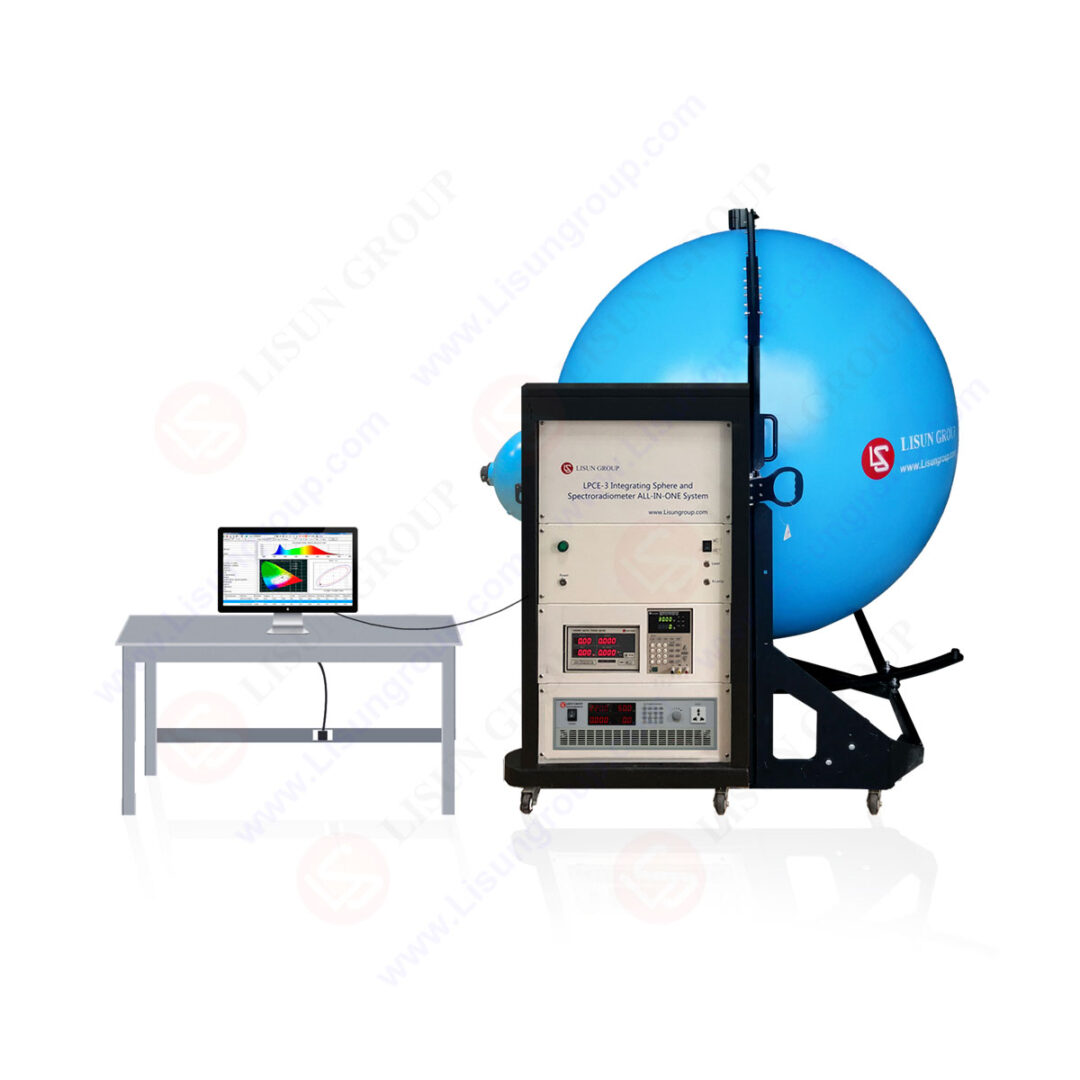

LISUN LPCE-3 Compact Integrating Sphere LED Test System

Overview

The LPCE-3 is LISUN's patented all-in-one optical, colour and electrical test platform. The integrating sphere, sample stage and test instruments are built into a single cabinet, so there is nothing to assemble: it is quick to install, takes up little lab space and is ready to measure individual LEDs and LED luminaires.

At its core is the LMS-7000 industrial CCD spectroradiometer, with an LS2012 power meter, AC and DC sources, a NIM/NIST-traceable standard lamp and an auxiliary lamp for self-absorption correction. It is aimed at small and medium-sized manufacturers who need R&D, incoming quality control and routine production testing on a limited budget.

What it measures

Key Specifications

ComponentLPCE-3 (LMS-7000)
CCD spectroradiometerLMS-7000 basic industrial grade, VIS, UV-VIS or VIS-NIR; ±0.5nm wavelength accuracy; CCT ±0.5%
Digital power meterLS2012: AC/DC voltage, current, power, PF and frequency
Optical fibreCFO-1.5M (or CFO-1.5MY Y-fibre for two spheres)
AC power sourceLSP-500VAS/LSP-1KVAS
DC power sourceDC-S series for standard lamps, auxiliary lamps and DC sources
Integrating sphereIS-1.5MA-CASE/IS-0.3M molded sphere with built-in sample stage, housed in the cabinet
Standard lampSLS-50W/SLS-10W, traceable to NIM/NIST
Auxiliary lampRLS-100W/RLS-50W for self-absorption correction
SoftwareEnglish and Chinese; Windows 7/8/10/11; PDF/Excel reports

Features

Applications

Frequently asked questions

How is the LPCE-3 different from the LPCE-2?

The LPCE-3 is a compact all-in-one cabinet built around the entry-level LMS-7000. The LPCE-2 is a rack system with the higher-accuracy LMS-9000C or LMS-9500C, suited to certification labs.

Can it test both single LEDs and complete lamps?

Yes. LISUN supplies it with a large molded sphere and a small IS-0.3M sphere, and the CFO-1.5MY Y-fibre lets the spectroradiometer connect to both.
