LMS-9000C High Precision CCD Spectroradiometer – LISUN

LMS-9000C / LMS-9000CUV-VIS / LMS-9000CVIS-NIR / LMS-9000CUV

LISUN LMS-9000C CCD spectroradiometer for LM-79 testing: ±0.3nm wavelength accuracy, Δxy ±0.002, CCT, CRI, TM-30 and flux with an integrating sphere.

Lighting & Photometric Test Instruments
CCD Spectroradiometer
Bench-top Instrument
CIE 13.3:1995; CIE 177:2007; CIE 84:1989; ANSI C78.377-2024; ANSI/IES LM-79-24; ANSI/IES LM-80-21; (EU) 2019/2015; GB/T 5702-2019; GB/T 24824-2022
Enquire About This Product
LISUN LMS-9000C High Precision CCD Spectroradiometer

Overview

The LMS-9000C is LISUN's industrial-grade CCD spectroradiometer for lighting R&D, production-line quality control and routine certification testing. It uses a flat-field corrected holographic grating with a high-performance array CCD detector, a band-pass filter wheel for calibration and an enhanced NIST-based stray-light correction algorithm. The result is fast, accurate measurement of photometric, colorimetric and spectral power distribution data for LEDs, energy-saving lamps, HID, halogen and tungsten lamps.

Measurements are traceable to China's National Institute of Metrology (NIM) and the US National Institute of Standards and Technology (NIST), which matters when the results go into accredited laboratory reports.

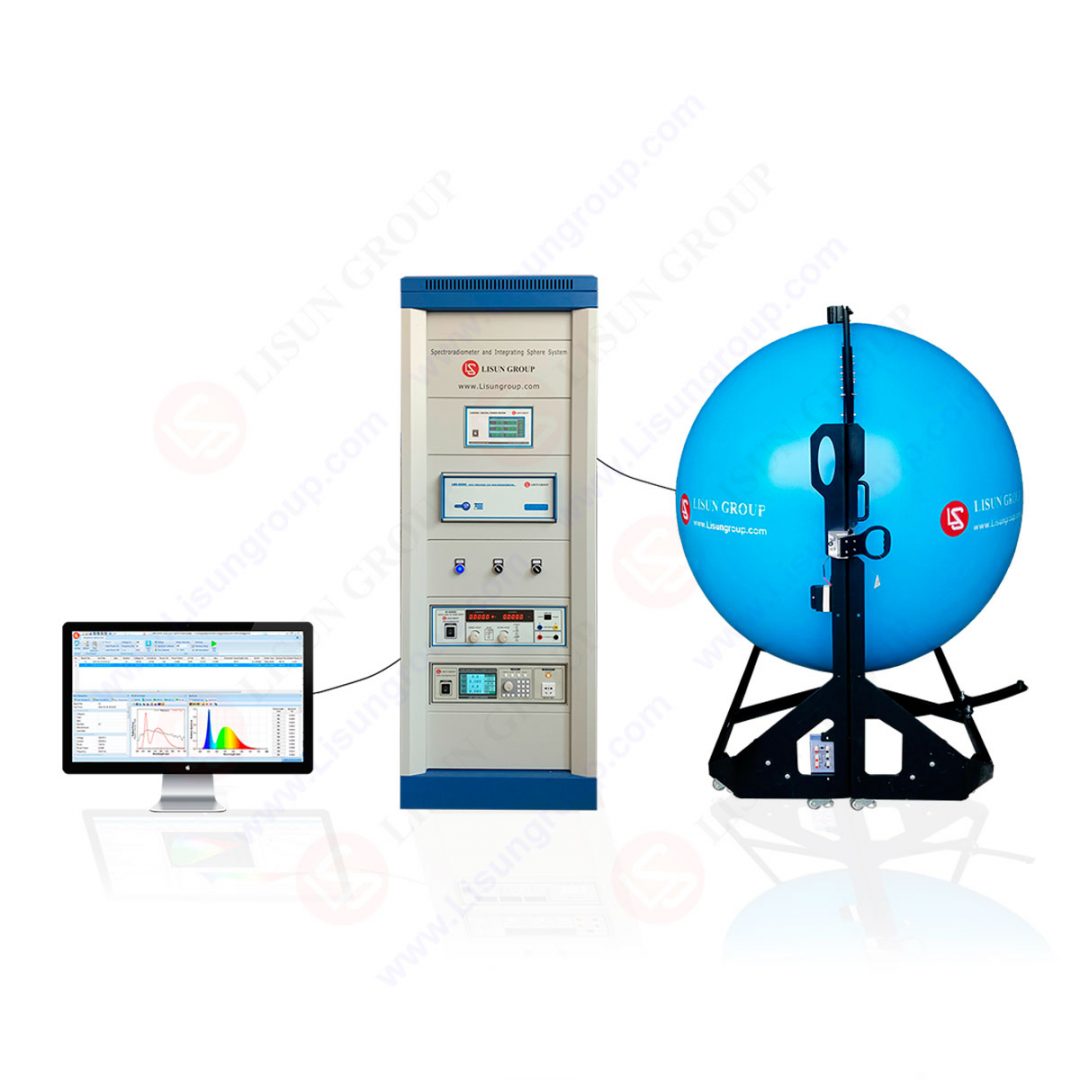

Building a complete LM-79 test system

On its own the LMS-9000C measures the spectrum. Paired with an IS-*MA integrating sphere, an SLS-50W standard lamp and a power meter, it becomes the LPCE-2 (LMS-9000C) system, which measures luminous flux, efficacy, chromaticity, CCT, CRI and electrical parameters together and produces LM-79 reports directly.

Four spectral ranges

Key Specifications

SpecificationLMS-9000CLMS-9000CUV-VISLMS-9000CVIS-NIRLMS-9000CUV
Wavelength range350~800nm200~800nm350~1050nm200~400nm
Wavelength accuracy±0.3nm
Wavelength resolution±0.1nm
Scan interval0.1nm (adjustable)
Chromaticity accuracyΔx, Δy ≤ ±0.002
CCT range / accuracy1,500K~100,000K / ±0.3%
Colour rendering index0~100.0, accuracy ±(0.3% rd ±0.3)
Luminous flux range0.01~200,000 lm (depends on sphere size)N/A
Photometric linearity±0.5%
Stray light<0.015% at 600nm; <0.03% at 435nm
Integration time0.1~10,000ms
Flux calculationSpectroscopic, photometric, and combined spectroscopic-photometric correction
SoftwareEnglish and Chinese; Windows 7/8/10/11; exports spectral curves and PDF/Excel reports

Features

Applications

Frequently asked questions

What is the difference between the LMS-9000C and LMS-9500C?

The LMS-9000C is LISUN's high-end industrial model (±0.3nm wavelength accuracy, ±0.3% CCT accuracy). The LMS-9500C is the scientific-grade model with a Hamamatsu TE-cooled CCD, ±0.2nm wavelength accuracy and ±0.2% CCT accuracy.

Can the LMS-9000C measure luminous flux on its own?

No. Luminous flux needs an integrating sphere and standard lamp. With an IS-*MA sphere it measures 0.01 to 200,000 lm, depending on sphere size.

Which version suits plant lighting?

The LMS-9000CVIS-NIR covers 350–1050nm, which LISUN recommends for infrared fill light and horticultural lighting.
