LMS-7000 CCD Spectroradiometer – LISUN

LMS-7000VIS / LMS-7000UV / LMS-7000UV-VIS / LMS-7000VIS-NIR / LMS-7000UV-VIS-NIR

LISUN LMS-7000 entry-level CCD spectroradiometer: SMA905 fibre input, USB 2.0, DLL SDK, five spectral ranges from 200 to 1050nm for LED testing.

Lighting & Photometric Test Instruments
CCD Spectroradiometer
Bench-top Instrument
CIE 13.3:1995; CIE 177:2007; CIE 84:1989; ANSI C78.377-2024; ANSI/IES LM-79-24; ANSI/IES LM-80-21; (EU) 2019/2015; GB/T 5702-2019; GB/T 24824-2022
Enquire About This Product

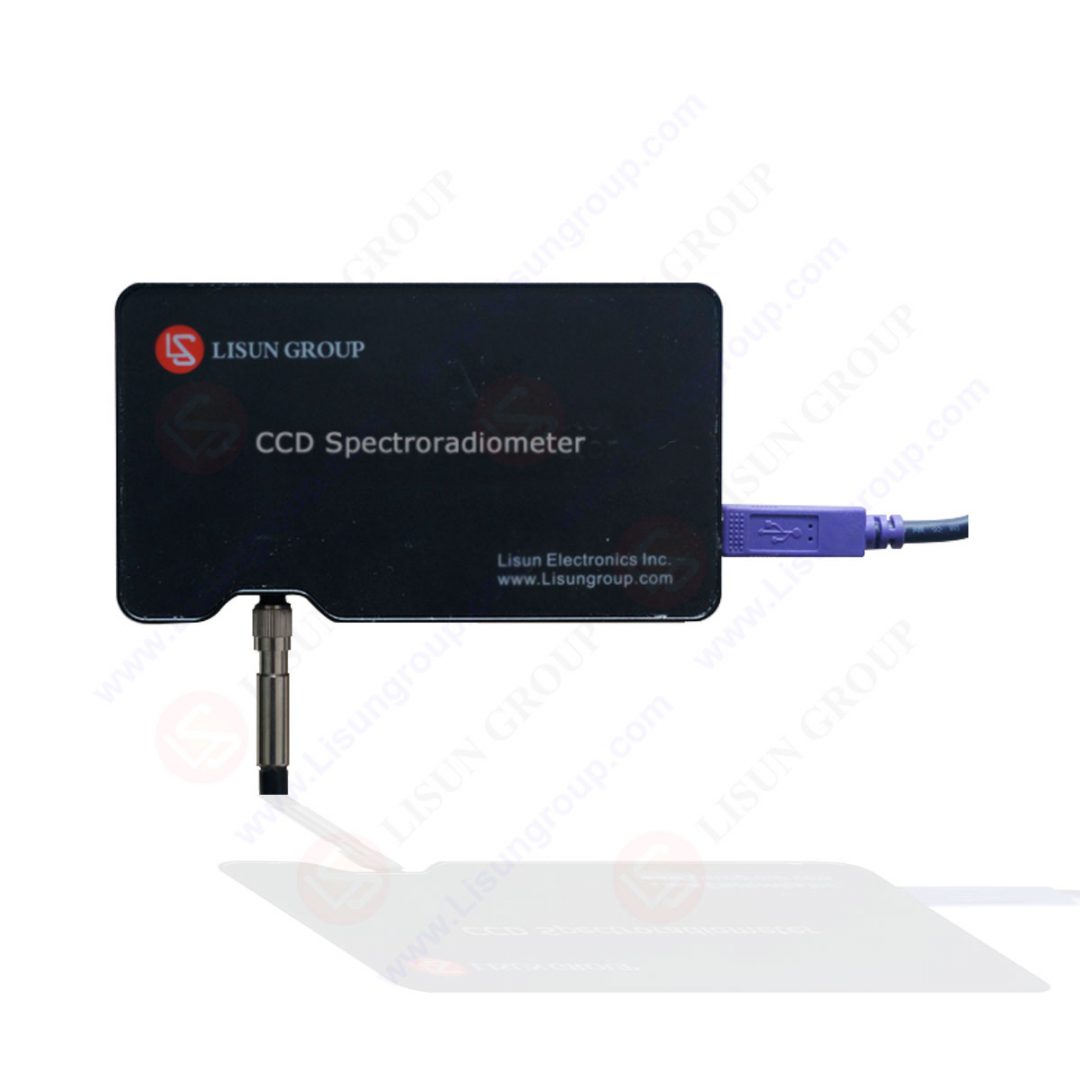

LISUN LMS-7000 CCD Spectroradiometer

Overview

The LMS-7000 is LISUN's entry-level industrial spectroradiometer and a common choice for LED manufacturers who need fast, repeatable colour and flux readings without laboratory-grade cost. It uses an original Japanese-made CCD detector, takes light in through a standard SMA905 fibre-optic connector and talks to a PC over USB 2.0.

Combined with an integrating sphere and standard lamp it forms the LPCE-3 compact system for photometric, colorimetric and electrical testing of LED sources and luminaires. Because LISUN supplies a DLL software development kit, the LMS-7000 can also be built into your own test fixtures for in-line production testing or quick on-site comparisons.

Five spectral ranges

Key Specifications

SpecificationLMS-7000VISLMS-7000UVLMS-7000UV-VISLMS-7000VIS-NIRLMS-7000UV-VIS-NIR
Wavelength range350~950nm200~400nm200~800nm350~1050nm200~1050nm
Wavelength accuracy±0.5nm
Wavelength repeatability±0.2nm
Scan interval0.1nm (adjustable)
Chromaticity accuracyΔx, Δy ≤ ±0.003
CCT range / accuracy1,500K~100,000K / ±0.5%
Colour rendering index0~100.0, accuracy ±(0.3% rd ±0.3)
Luminous flux range0.01~200,000 lm (depends on sphere size)
Photometric linearity±0.5%
Stray light<0.015% at 600nm; <0.03% at 435nm
Integration time0.5~1,000ms
Flux calculationSpectroscopic method
InterfaceSMA905 fibre input; USB 2.0
SoftwareEnglish and Chinese; Windows 7/8/10/11; PDF/Excel export; DLL for secondary development

Features

Applications

Frequently asked questions

Can I integrate the LMS-7000 into my own equipment?

Yes. LISUN supplies a DLL software development package for custom software and system integration.

How does it compare with the LMS-9000C?

The LMS-7000 is the entry-level model (±0.5nm wavelength accuracy, ±0.5% CCT). The LMS-9000C has a holographic grating, filter wheel and tighter accuracy (±0.3nm, ±0.3%) for certification testing.
