LMS-6000 Portable CCD Spectroradiometer – LISUN

LMS-6000 / 6000C / 6000UV / 6000F / 6000L / 6000B / 6000BF / 6000P / 6000S / 6000SF / 6000TLCI / 6000I

LISUN LMS-6000 handheld spectroradiometer: lux, CCT, CRI, TM-30, flicker, blue-light hazard and PPFD versions, 5-inch touch screen, 20-hour battery.

Lighting & Photometric Test Instruments
Portable CCD Spectroradiometer
Handheld Portable Instrument
CIE 13.3; CIE 177; IES TM-30; CIE S009/E:2002 (blue light hazard, LMS-6000B); GB/T 20145
Enquire About This Product

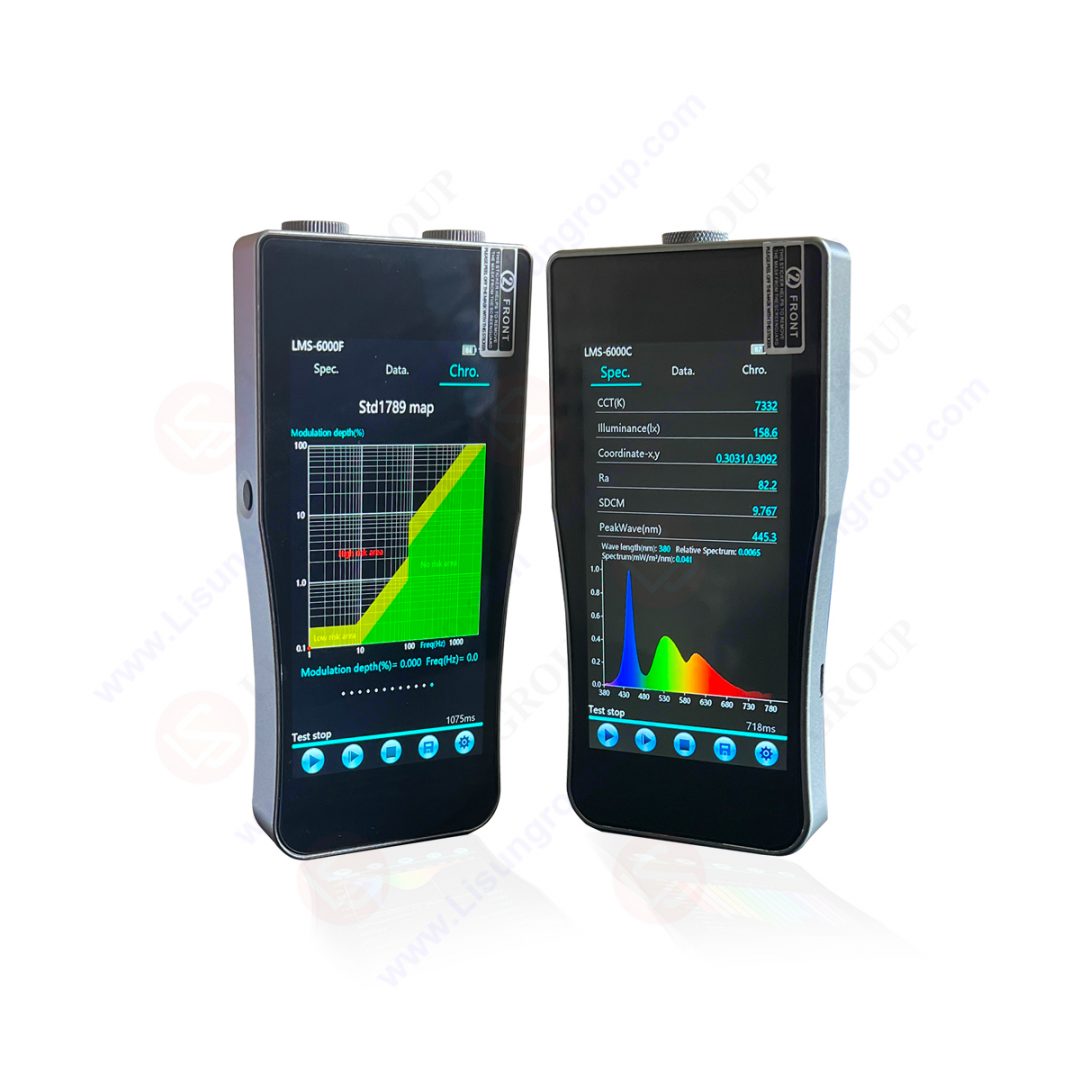

LISUN LMS-6000 Portable CCD Spectroradiometer

Overview

The LMS-6000 series brings a laboratory-style spectroradiometer into a 135×80×23mm handheld unit. Its long-focal-length, crossed asymmetric Czerny-Turner optical bench measures illuminance, CCT, chromaticity coordinates, CRI, TM-30 (Rf/Rg), peak and dominant wavelength, FWHM, SDCM colour tolerance and the full spectral distribution, shown on a 5-inch IPS touch screen.

A 4,000mAh battery gives up to 20 hours of continuous use and 8GB of storage holds thousands of test reports, which can be moved to Windows PC software for analysis. It is used for site inspections, project acceptance testing, production-line checks and R&D benchmarking.

Twelve versions for different jobs

The series is modular, so you buy only the functions you need:

Key Specifications

SpecificationLMS-6000 series
Optical platformLong-focal-length crossed asymmetric Czerny-Turner spectrometer
Wavelength range380~780nm standard; 200~400nm (UV); 350~800nm (B/BF); 350~850nm (P); 350~950nm (S/SF)
Wavelength accuracy±0.5nm
Spectral resolution±0.2nm
Scan interval0.1nm (adjustable)
Chromaticity accuracyΔx, Δy ≤ ±0.005
CCT range / accuracy1,500K~100,000K / ±0.6%
Colour rendering index0~100.0, accuracy ±(0.3% rd ±0.3)
Photometric linearity±0.6%
Stray light<0.015% at 600nm; <0.03% at 435nm
Integration time0.1ms~5s
Display5-inch HD IPS capacitive touch screen, 480×854
Battery4,000mAh lithium, up to 20 hours continuous use
Storage8GB, 5,000 to 100,000 test reports
Dimensions135×80×23mm
PC softwareEnglish and Chinese; Windows 7/8/10/11; report export

Features

Applications

Frequently asked questions

Which LMS-6000 version measures PPFD for grow lights?

The LMS-6000P (350–850nm) measures PAR, PPFD, YPFD and the red-to-blue ratio. The LMS-6000S adds blue-light hazard, and the LMS-6000SF adds flicker as well.

Can the LMS-6000 measure flicker?

Yes, the LMS-6000F, LMS-6000BF and LMS-6000SF versions measure flicker depth and flicker index.

Does it work with a PC?

Yes. Reports stored on the instrument can be transferred to LISUN's Windows software (not included with the economy LMS-6000C).
