LISUN LFCI61000-19 Low Frequency Diff-Mode Immunity

Overview

Power grid switching, mains signalling and power electronic converters put differential-mode voltages and currents onto AC supply lines in the 2kHz to 150kHz range. IEC 61000-4-19 tests whether equipment connected to those lines keeps working.

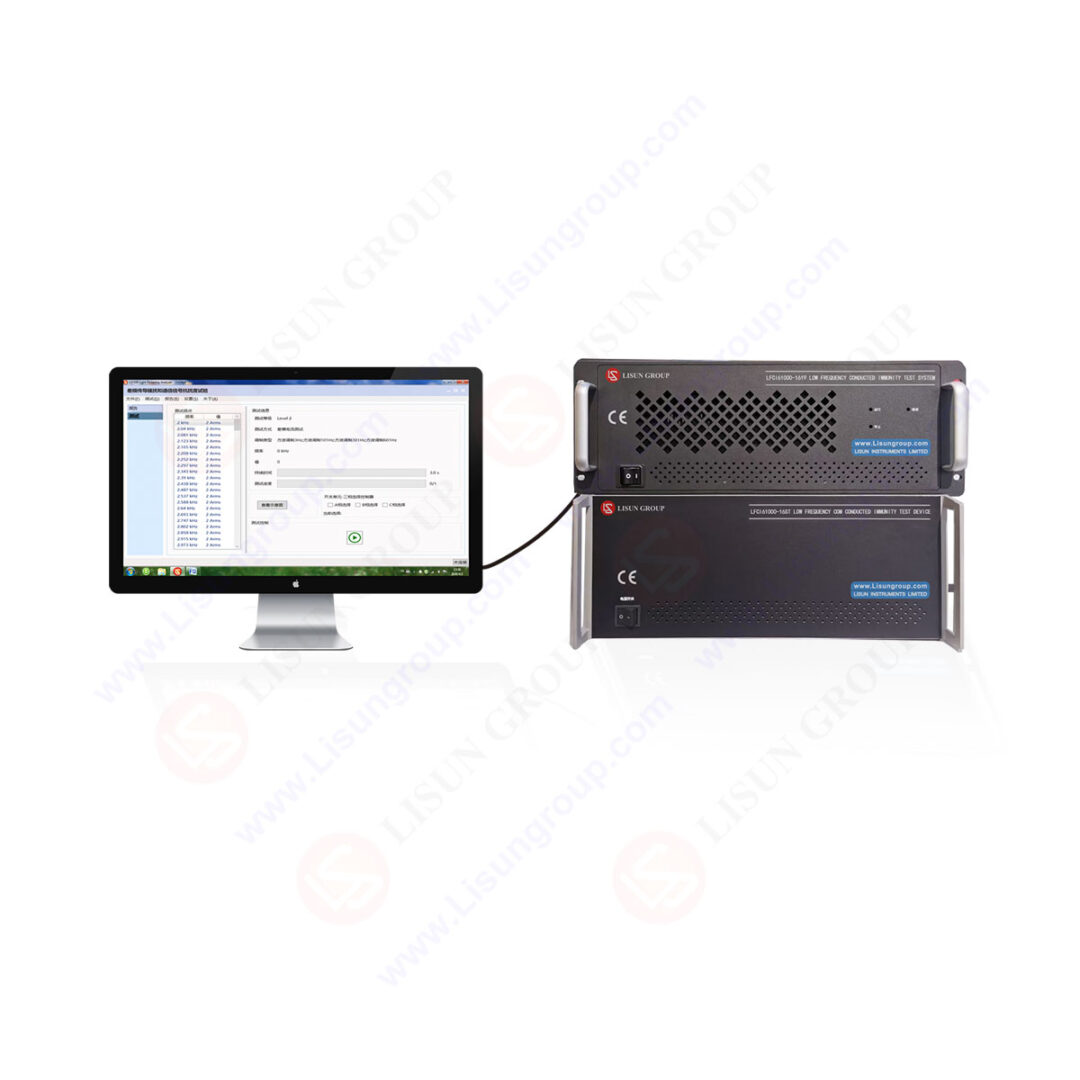

The LFCI61000-19 combines a signal source, power amplifier and single-phase coupling/decoupling network. It covers both tests in the standard: the differential-mode voltage test (Table 1) at up to 30V, and the differential-mode current test (Table 2) at up to 6A, with pulse modulation from 3Hz to 1kHz. It is run from a 10.1-inch English/Chinese touch screen or from a PC.

It is used for EMC type testing of electricity meters, industrial controls, relays, power electronics and instruments, in test labs and manufacturers' R&D and quality departments.

Key Specifications

ParameterSpecification
Differential-mode voltage test (IEC 61000-4-19 Table 1)
Frequency range2kHz~180kHz
Open-circuit voltage0.1~30V ±5%
Harmonic distortion<5% (sine)
Pulse modulation3Hz~1kHz
Output impedance10Ω ±30%
Differential-mode current test (IEC 61000-4-19 Table 2)
Frequency range2kHz~180kHz
Current6A
Load output impedance1Ω ±0.3Ω
General
Pulse modulation duty cycle0.5
EUT supplyBuilt-in CDN, single phase 240V / 16A
Control10.1-inch Android touch screen (English/Chinese), PC remote software
InterfacesLAN, USB, RS485
Environment10~40℃, 30~70% RH
SupplyAC 110~250V / 10A, 50/60Hz

Features

Applications

Frequently asked questions

Why is this test important for meters?

Smart meters share the mains with power-line communication and converter noise in the 2–150kHz band, which IEC 61000-4-19 was written to cover.

Common mode or differential mode?

For common-mode disturbances from DC to 150kHz, see the LFCI61000-16 (IEC 61000-4-16).
