LISUN LEDRACK LED driver burn-in racks: 48 to 240 load channels, 65W to 1000W per channel, CC/CV/CR/CP/LED load modes, PC monitoring software.
Enquire About This Product
LEDRACK racks run accelerated aging and reliability burn-in on LED drivers in production and R&D. Electronic load channels with CC, CV, CR, CP and LED modes stand in for the LED load, and channels can be paralleled in any mode for higher-power drivers. PC software sets the load for each channel and logs voltage, current and power in real time, with programmable on/off timing.

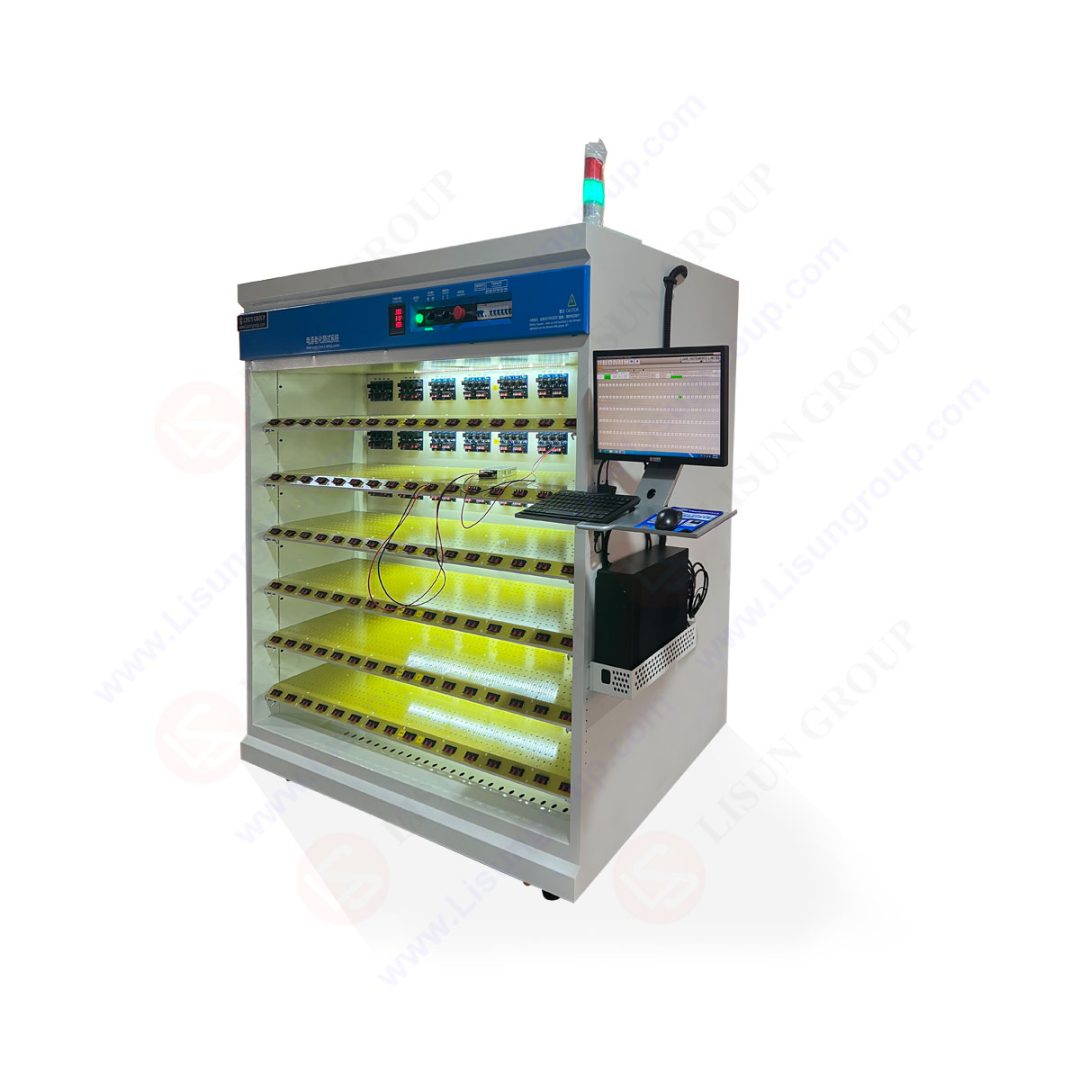

The test area has six shelves behind double folding tempered glass doors, with temperature held from ambient to 45°C, exhaust for over-temperature and heating for low temperature. Over-temperature and smoke protection are built in, and DC adapter boards suit different driver output connectors. The LEDRACK-100W192P (192 channels of 100W) is one of five models from 65W to 1000W per channel. An optional LS-RT30KVA-3G transformer module adds multi-voltage on/off surge aging (90V, 110V and 220V as standard).
| Specification | LEDRACK-65W240P | LEDRACK-100W192P | LEDRACK-300W120P | LEDRACK-500W96P | LEDRACK-1000W48P |
|---|---|---|---|---|---|
| Power per channel | 65W | 100W | 300W | 500W | 1000W |
| Load channels | 240 | 192 | 120 | 96 | 48 |
| Load voltage | 1~500V | 1~500V | 5~430V | 5~430V | 5~430V |
| Load current per channel | 0.05~5A | 0.05~10A | 0.1~12A | 0.1~15A | 0.1~30A |
| Load accuracy | ±(1%+0.1FS) | ||||
| Load module type | Energy consuming | Energy saving (regenerative) | |||
| Load modes | CC, CV, CR, CP, LED; channels can be paralleled in any mode | ||||
| Test area | 6 tiers, each 170mm high × 360mm wide | ||||
| Test area temperature | Ambient to 45°C ±5°C; tempered glass doors; exhaust and heating | ||||
| Control | PC with English/Chinese burn-in software; voltage/current setting and monitoring; programmable on/off timing | ||||
| Connections | AC input and DC output via speaker-wire clips (custom on request) | ||||
| Rack supply | Three-phase 380~415V (220~240V version available) | ||||
| Surge aging option | LS-RT30KVA-3G transformer module, 30kVA (40/50/60kVA options), three surge voltages | ||||
Choose by driver output power and quantity: for example the LEDRACK-100W192P runs up to 192 drivers of 100W, while the LEDRACK-1000W48P runs 48 drivers of up to 1000W.
LISUN lists energy-saving load modules on the 300W, 500W and 1000W models, versus energy-consuming loads on the 65W and 100W models. Ask Finch for running-cost details.
