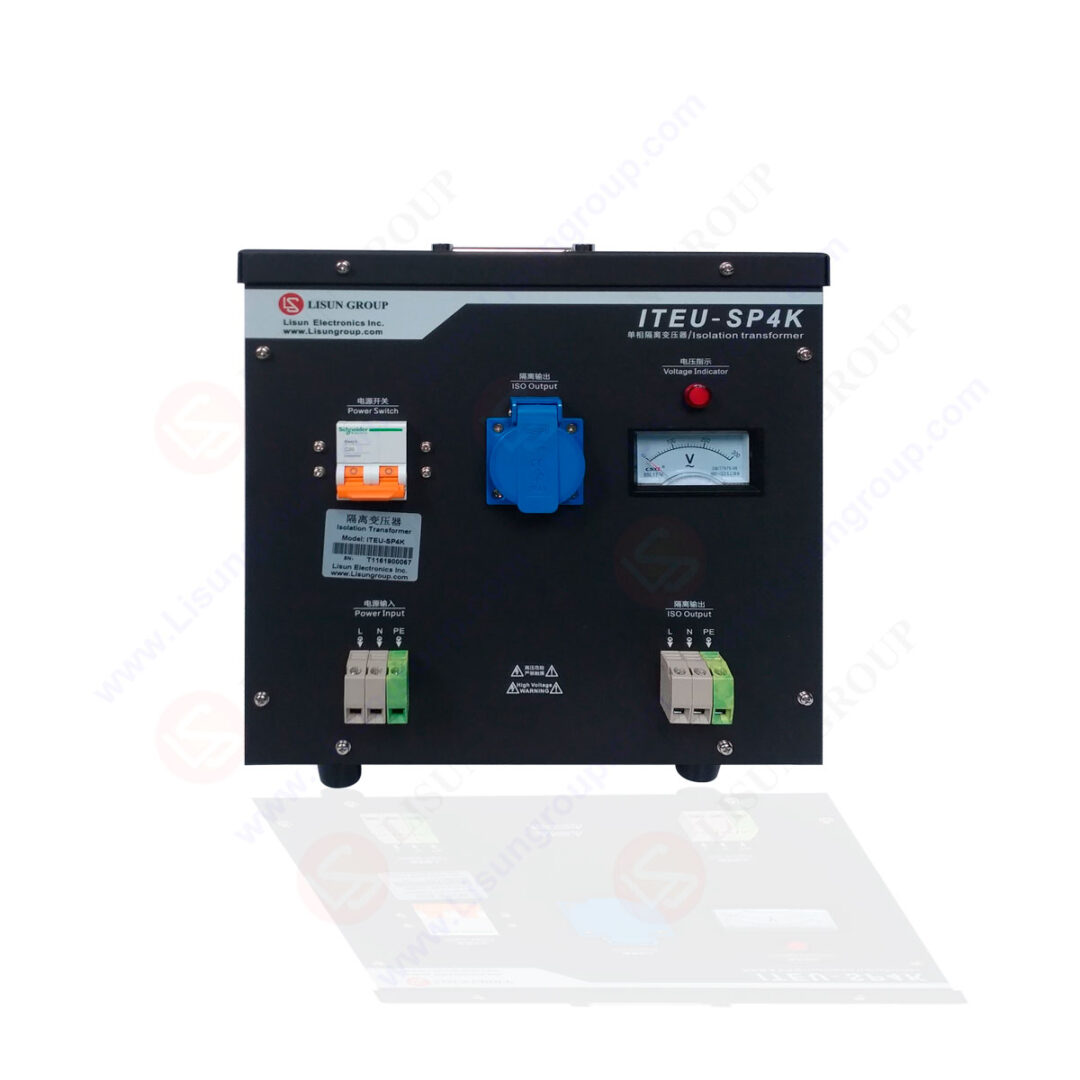

LISUN ITEU-SP4K Isolation Transformer for EMC Testing

Overview

An isolation transformer electrically separates its input winding from its output winding, so equipment connected to the output is isolated from the mains. This protects against accidental contact with live parts and keeps test energy and noise from coupling back into the building supply.

LISUN's surge generators must be used with a matching isolation transformer to work properly, and the transformers are also used across industry, electronics, precision instruments, medical equipment and machine tools. Input and output voltages match the customer's local mains: ITEU models for 220–240V single phase or 316–480V three phase, and ITUS models for 110–120V single phase or 200–260V three phase.

Sizing

Key Specifications

ModelInput voltageOutput voltagePhase / power
ITEU-SP1KS220~240V220~240VSingle phase / 1kVA
ITEU-SP4K220~240V220~240VSingle phase / 4kVA
ITEU-SP5K220~240V220~240VSingle phase / 5kVA
ITEU-SP10K220~240V220~240VSingle phase / 10kVA
ITUS-SP1KS110~120V110~120VSingle phase / 1kVA
ITUS-SP2K110~120V110~120VSingle phase / 2kVA
ITUS-SP5K110~120V110~120VSingle phase / 5kVA
ITEU-TP10K316~480V316~480VThree phase / 10kVA
ITEU-TP20K316~480V316~480VThree phase / 20kVA
ITUS-TP5K200~260V200~260VThree phase / 5kVA
ITUS-TP10K200~260V200~260VThree phase / 10kVA

Features

Applications

Frequently asked questions

Why does a surge generator need an isolation transformer?

LISUN states that its surge generators must be used with a matching isolation transformer to work properly; it keeps the surge energy and EUT faults isolated from the building supply.

Which size do I need?

Pick a rating of at least 1.5 times the power drawn by your equipment under test, using the current formulas above.
