IS-*MA**C/P Side-Opening Integrating Spheres – LISUN

IS-1.0MA33C/P / IS-1.5MA55C/P / IS-1.75MA66C/P / IS-2.0MA77C/P / IS-2.5MA88C/P / IS-3.0MA1010C/P

LISUN side-opening integrating spheres for IES LM-79 Clause 9.1.2 4π and 2π testing: round (C) or square (P) side ports from 300mm to 1000mm.

Lighting & Photometric Test Instruments
Integrating Sphere
Sphere System (floor-standing with side opening)
IES LM-79 Clause 9.1.2; CIE 84:1989
Enquire About This Product

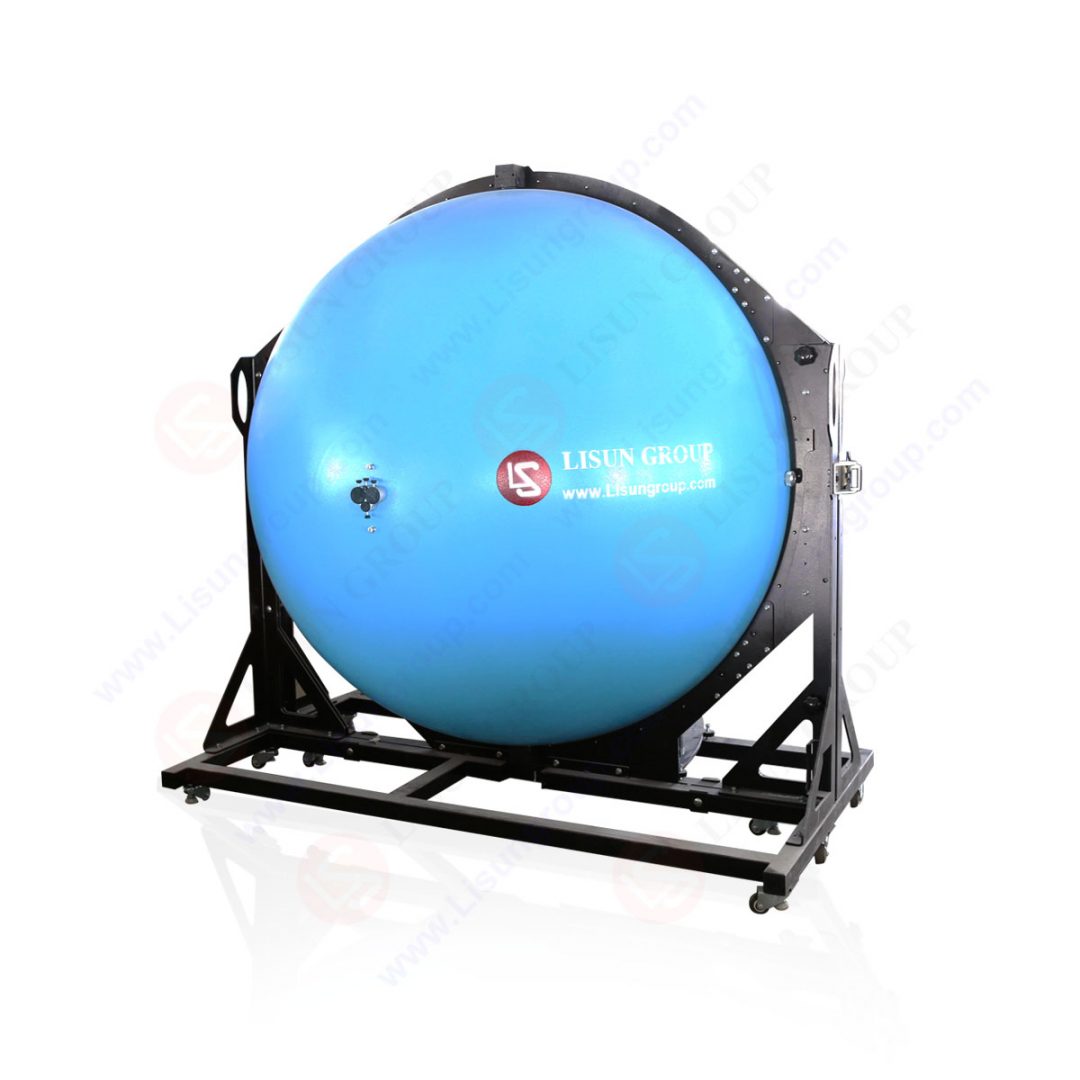

LISUN IS-*MA**C/P Side-Opening Integrating Spheres

Overview

IES LM-79 Clause 9.1.2 calls for both 4π geometry (the sample inside the sphere) and 2π geometry (the sample mounted on the sphere wall) for LED testing. LISUN's IS-*MA**C and IS-*MA**P spheres add a side opening for 2π measurement of directional luminaires such as downlights and panels, while keeping all the features of the standard IS-*MA sphere for 4π work.

The "C" models have a circular side opening and the "P" models a square one, from 300mm up to 1000mm depending on sphere size. Like the IS-*MA range they are made with LISUN's A-Molding process for a rounder sphere, coated with BaSO4 to CIE 84 and IES LM-79, and fitted with lamp jigs, a luminaire holder base, power connections, detector, fibre and temperature ports, and a cross laser on spheres over 1m.

Key Specifications

Side opening sizes

ModelSide opening
IS-1.0MA33C / IS-1.0MA33PΦ300mm round / 300×300mm square
IS-1.5MA55C / IS-1.5MA55PΦ500mm round / 500×500mm square
IS-1.75MA66C / IS-1.75MA66PΦ600mm round / 600×600mm square
IS-2.0MA77C / IS-2.0MA77PΦ700mm round / 700×700mm square
IS-2.5MA88C / IS-2.5MA88PΦ800mm round / 800×800mm square
IS-3.0MA1010C / IS-3.0MA1010PΦ1000mm round / 1000×1000mm square

Sphere specifications

SpecificationIS-*MA**C / IS-*MA**P
CoatingBaSO4 to CIE Pub. No. 84 (1989) and IES LM-79
Spectral reflectanceρ(λ) ≥0.96 (450~800nm); ρ(λ) ≥0.92 (380~450nm)
Diffuse reflectanceρ≈0.8, accuracy of ρ(λ) <1.5%
Sample mountingE27 and T5/T8/T12 jigs; holder base for LED luminaires; up or down orientation
Built-inPower cable and terminal, auxiliary lamp position (lamp optional), 2 detector ports, 1 fibre port, 1 temperature sensor port
AlignmentCross laser (spheres larger than 1m)

Features

Applications

Frequently asked questions

When should I use 2π geometry?

IES LM-79 allows 2π geometry for luminaires that emit only forward, such as downlights and panels, mounted on the sphere wall port. Omnidirectional lamps are measured in 4π geometry inside the sphere.

Round or square opening?

Choose the C (round) or P (square) version to suit the shape of the luminaires you test most.
