IS-*MA Integrating Sphere with Holder Base – LISUN

IS-0.3M / IS-0.5M / IS-1.0MA / IS-1.5MA / IS-1.75MA / IS-2.0MA

LISUN IS-*MA molded integrating spheres for 4π LED testing: built-in holder base for luminaires to 20kg, BaSO4 coating ρ≥0.96, 0.3m to 2.0m diameters.

Lighting & Photometric Test Instruments
Integrating Sphere
Sphere System (floor-standing)
CIE 84:1989; IES LM-79
Enquire About This Product

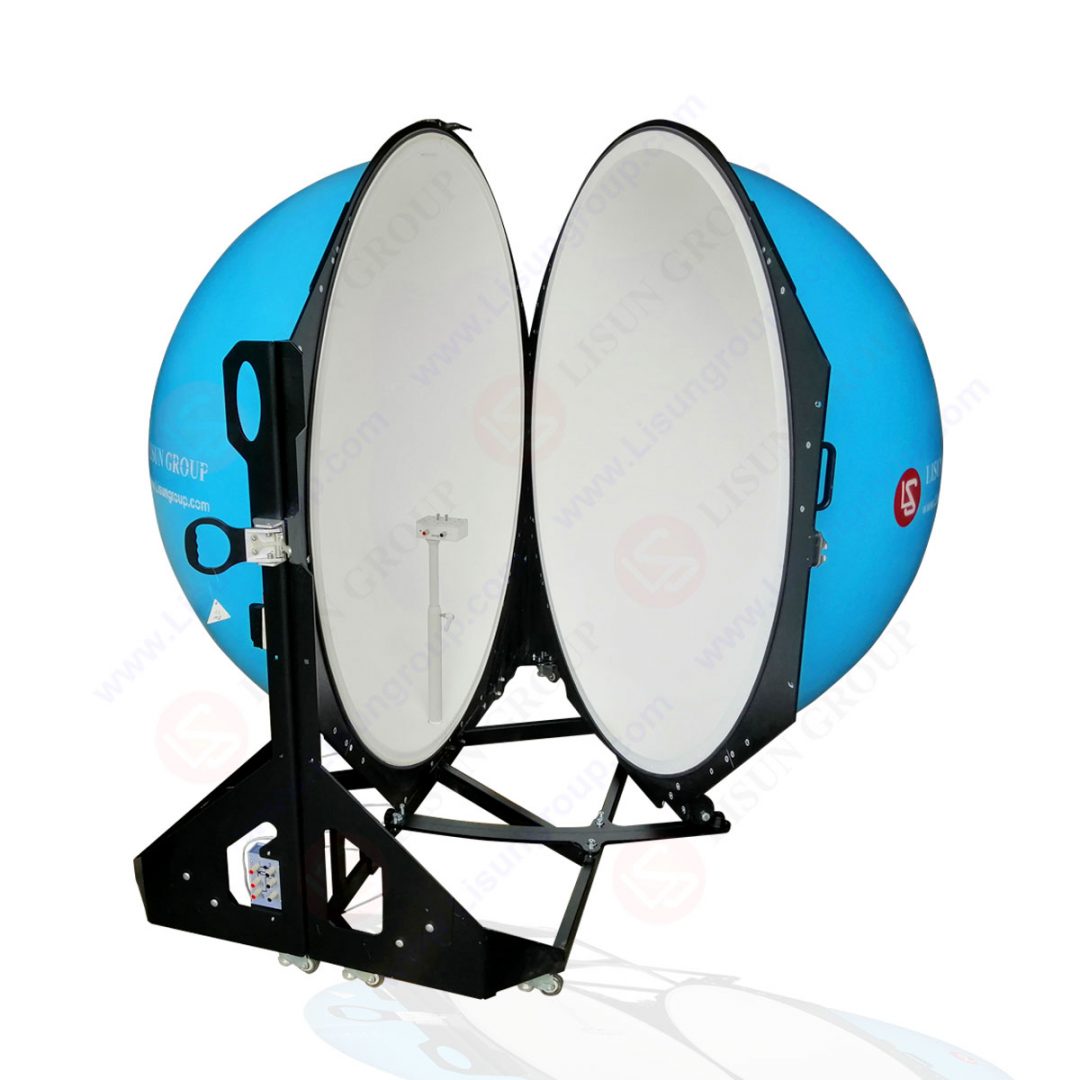

LISUN IS-*MA Integrating Sphere with Holder Base

Overview

Large LED luminaires such as street lights, floodlights and panel lights are hard to mount inside a traditional integrating sphere for 4π testing, because there is nowhere to support their weight. LISUN's IS-*MA spheres solve that with a built-in holder base that carries luminaires up to 20kg, plus jigs for E27 lamps and T5, T8 and T12 tubes. Samples can be mounted facing up or down.

The spheres are made with LISUN's A-Molding process rather than bolted together from segments, so they are rounder and give more accurate results than traditional multi-piece spheres. The BaSO4 coating follows CIE 84 and IES LM-79, with reflectance of at least 0.96 from 450nm to 800nm. Power cables and sockets, an auxiliary lamp position, two detector ports, a fibre port and a temperature sensor port are built in, and spheres over 1m have a cross laser for centring the standard lamp and the sample.

The sphere works with a LISUN spectroradiometer (as in the LPCE-2 and LPCE-3 systems) to measure luminous flux, colour and electrical parameters.

Key Specifications

Sphere sizes

ModelTypical samplesLuminous flux range
IS-0.3M / IS-0.5MLEDs, LED modules, mini LED bulbs and other small lamps0.001~1,999 lm
IS-1.0MACFL and LED bulbs0.1~199,990 lm
IS-1.5MA / IS-1.75MACFL, LED bulbs and tubes, fluorescent lamps, CCFL0.1~1,999,900 lm
IS-2.0MAHID and high-power lamps0.1~1,999,900 lm

Specifications

SpecificationIS-*MA series
CoatingBaSO4 to CIE Pub. No. 84 (1989) and IES LM-79
Spectral reflectanceρ(λ) ≥0.96 (450~800nm); ρ(λ) ≥0.92 (380~450nm)
Diffuse reflectanceρ≈0.8, accuracy of ρ(λ) <1.5%
Sample mountingHolder base for LED luminaires up to 20kg; E27 and T5/T8/T12 jigs; up or down orientation
Built-inPower cable and socket, auxiliary lamp position (lamp optional), 2 detector ports, 1 fibre port, 1 temperature sensor port
AlignmentCross laser (spheres larger than 1m)

Features

Applications

Frequently asked questions

What size sphere do I need?

LISUN recommends 0.3–0.5m for LEDs and small lamps, 1.0m for bulbs, 1.5–1.75m for tubes and fluorescent lamps, and 2.0m for HID and high-power lamps. Larger spheres can be made to order.

What is A-Molding?

LISUN's process for forming the sphere as a moulded shell instead of assembling several pieces. The result is closer to a true sphere, which improves measurement accuracy.
