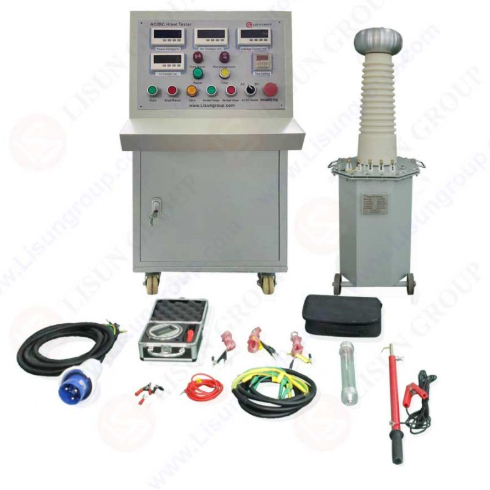

LISUN HIPOT series power-frequency withstand voltage test sets: 2 to 100kVA, up to 150kV AC and 210kV DC, cascadable to 300kV AC, for high-voltage testing.
Enquire About This Product
High-voltage equipment, cables, motors and insulating materials need withstand voltage tests well beyond the 5kV range of benchtop hipot testers. The LISUN HIPOT series are power-frequency test transformer sets for this work, from 10kV AC up to 150kV AC and 210kV DC.
Output voltage is adjusted with an autotransformer, so it can be set anywhere within the transformer's rating. A high-voltage output voltmeter and low-voltage input ammeter give direct readings, and built-in overcurrent protection trips the output if the test object breaks down.
The sets have 200V cascade taps, so two or three units can be connected in series to reach AC 100, 150, 200 or 300kV and DC 140, 210, 280 or 420kV. A 5 to 15kV medium-voltage tap can be provided for AC testing of high-voltage motors, and special ratings can be customised.
| Model | Capacity (kVA) | AC output (kV) | DC output (kV) | AC current (mA) | DC current (mA) | Input |
|---|---|---|---|---|---|---|
| HIPOT2-10KVAC | 2 | 10 | – | 200 | – | 200V, 10A |
| HIPOT5-50KV | 5 | 50 | 70 | 100 | 15 | 200V, 25A |
| HIPOT10-100KV | 10 | 100 | 140 | 100 | 50 | 200V, 50A |
| HIPOT50-100KV | 50 | 100 | 140 | 500 | 100 | 380V, 132A |
| HIPOT100-100KV | 100 | 100 | 140 | 1000 | 100 | 380V, 250A |
| HIPOT50-150KV | 50 | 150 | 210 | 333 | 100 | 380V, 132A |
| HIPOT100-150KV | 100 | 150 | 210 | 667 | 100 | 380V, 263A |
The capacity must supply the charging current of the test object, which rises with its capacitance. Long cables and large motors need the higher kVA models.
Yes. Two or three units can be cascaded to reach up to 300kV AC or 420kV DC.
