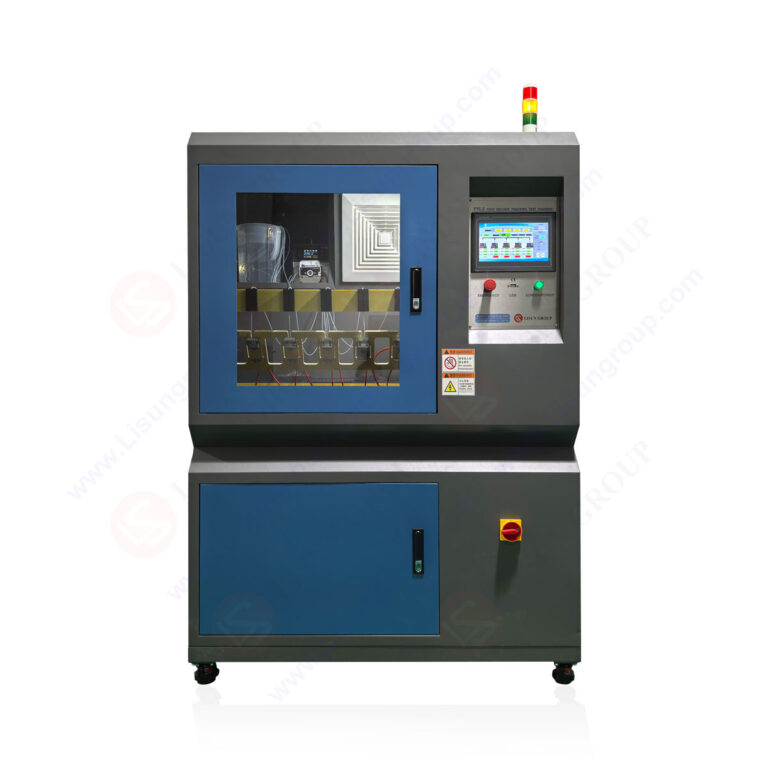

LISUN TTC-2 High Voltage Tracking Tester (IEC 60587)

Overview

Insulating materials used outdoors or in polluted, humid conditions, such as in high-voltage insulators, cable accessories and EV and rail components, can form conductive carbon tracks and erode under high voltage. IEC 60587 (the inclined plane test) evaluates this by running a contaminant solution down a sloped sample between two electrodes while high voltage is applied.

The TTC-2 tests five samples at the same time, each with its own control. It outputs 1 to 6kV AC or DC from an oil-immersed transformer for low voltage drop, and supports both the constant voltage and stepwise voltage methods. A peristaltic pump sets the contaminant flow, adjustable on the touch screen. Leakage current, voltage and maximum current are displayed in real time for each sample, and if a sample exceeds the set leakage threshold (0 to 100mA), only that channel is switched off.

Key Specifications

ItemSpecification
Capacity7kVA
SupplyAC 220~240V, 50/60Hz
Output voltageAC/DC 1000~6000V
Voltage drop≤5%
Short circuit≥60mA for ≥2s
Test methodsConstant voltage and stepwise voltage
Samples5, each controlled independently
Contaminant flowPeristaltic pump, set on touch screen
Electrodes304 stainless steel, spacing 50 ±0.5mm
Filter paper0.2mm thick, with 304 stainless steel template
Leakage alarm0~100mA, per-channel cut-off
Chamber≥0.75m³, glass observation door
Liquid handlingSeparate test liquid and waste tanks

Features

Applications

Frequently asked questions

What is the difference from a CTI tracking tester?

CTI testing (IEC 60112) drops electrolyte between two electrodes on a flat sample at up to 600V. IEC 60587 uses an inclined sample, continuous contaminant flow and voltages of several kilovolts for severe outdoor conditions.

Can samples be stopped individually?

Yes. Each of the five channels has its own leakage threshold and cuts off without affecting the others.
