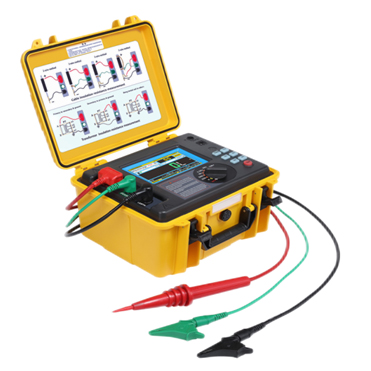

LISUN LS-IR1515Y 15kV Insulation Resistance Tester

Overview

Large high-voltage equipment such as power transformers, generators, switchgear and long cables needs insulation testing at several kilovolts, often in substations where induced voltages and electrical noise upset ordinary megohmmeters. The LS-IR1515Y is a battery-powered high-voltage insulation resistance tester built for these conditions.

It tests at 50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV or 15kV, or at any voltage from 40V to 15kV, and measures from 0.005MΩ to 30TΩ. Its 7mA output charges high-capacitance loads such as long cables quickly. Besides insulation resistance it measures polarization index (PI), dielectric absorption ratio (DAR), step voltage, ramp and dielectric discharge (DD) tests, capacitance and AC/DC voltage.

For safety, it blocks testing if more than 36V is present on the object and discharges the object automatically after the test. Results are stored with date and time (1000 records) and uploaded by USB or Bluetooth. The double-layer case is IP65 with the lid closed, and a 14.8V 6400mAh lithium pack powers long test sessions.

Key Specifications

Measuring range

Test voltage50V250V500V1kV2.5kV5kV10kV15kV
Range at ±5%10.0GΩ50.0GΩ100GΩ200GΩ500GΩ1.00TΩ4.00TΩ6.00TΩ
Range at ±10%100GΩ500GΩ1.00TΩ2.00TΩ5.00TΩ10.0TΩ20.0TΩ30.0TΩ

General specifications

ItemSpecification
Insulation resistance range0.005MΩ~30.0TΩ
Custom test voltage40V~15kV
Output voltage accuracy(5%~10%) ±10V
Short-circuit current7mA max
Current display0.001nA~7.5mA
Voltage measurementDC 0~1000V, AC 0~700V; ±5% rdg ±3V
Capacitance measurement10nF~200μF; ±10% rdg ±10nF
TestsIR, PI, DAR, step, ramp, DD
Custom test time10~3600s
Live voltage lockoutTesting blocked above 36V
Storage1000 records with date and time
InterfacesUSB, Bluetooth
Display5-inch colour touch screen
BatteryLithium, 14.8V 6400mAh
ProtectionIP65 lid closed, IP40 lid open
Size / weightAbout 280 × 260 × 160mm; about 3.4kg (5.7kg with accessories)

Features

Applications

Frequently asked questions

What is the polarization index?

The ratio of insulation resistance after 10 minutes to that after 1 minute. A low value suggests moisture or contamination in the insulation.

Can it be used in substations?

Yes. It is designed for strong induced voltage and interference, and blocks testing if more than 36V is present on the object.
