AGM-500, AGM-500PRO and AGM-580 Gloss Meters – LISUN

AGM-500 / AGM-500PRO / AGM-580

LISUN gloss meters to ISO 2813, ASTM D523 and DIN 67530: single-angle 60° AGM-500/500PRO and three-angle 20°/60°/85° AGM-580, with Bluetooth and USB.

Material & Optical Analysis
Object Color & Glossiness Test
Handheld Instrument
DIN 67530; ISO 2813; ASTM D523; JIS Z8741; BS 3900 Part D5; JJG 696 (first-level gloss meter)
Enquire About This Product

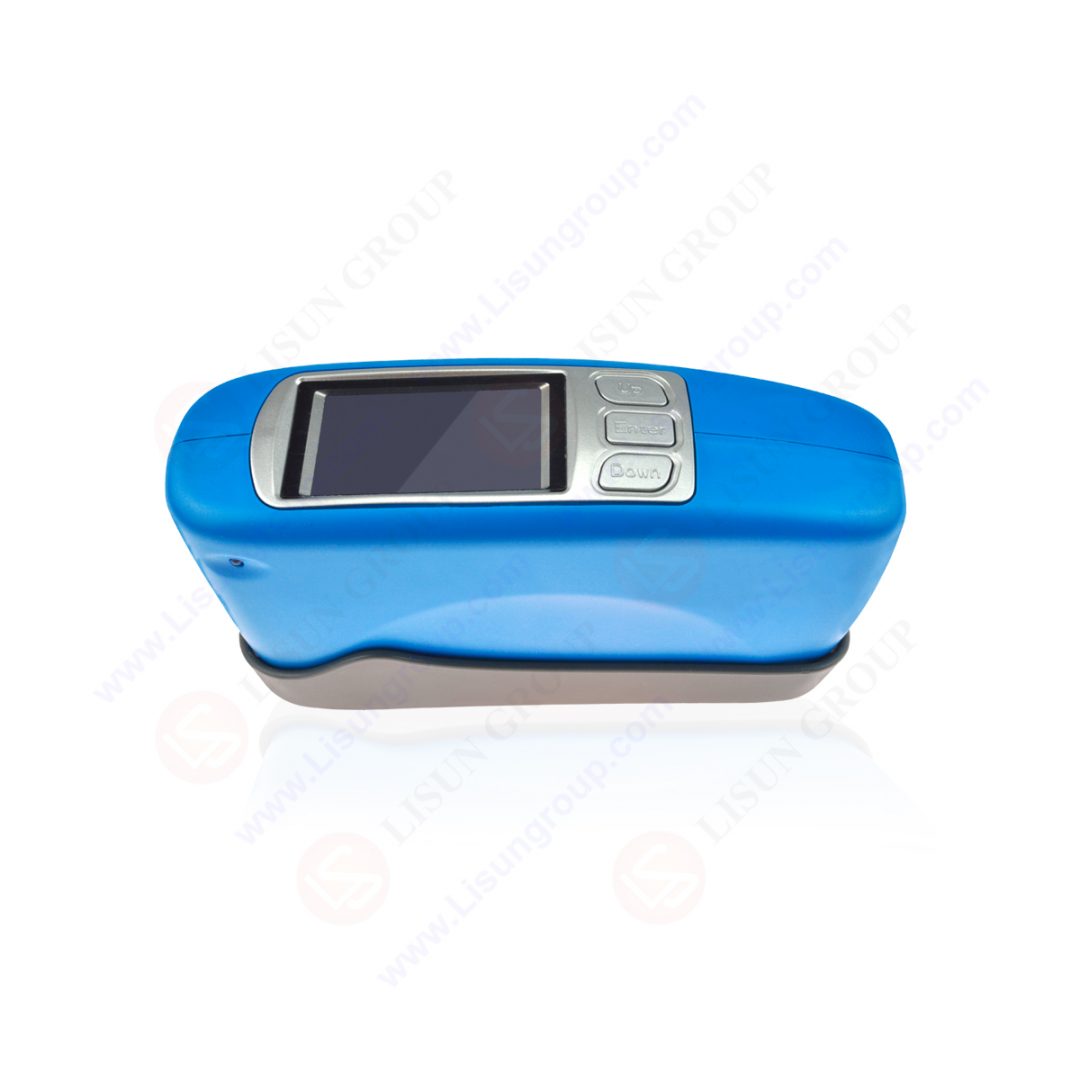

LISUN AGM-500, AGM-500PRO and AGM-580 Gloss Meters

Overview

Gloss is one of the first things a customer notices on a painted panel, moulded part or printed sheet, and it needs a number rather than an opinion. LISUN's AGM gloss meters measure specular gloss to DIN 67530, ISO 2813, ASTM D523, JIS Z8741 and BS 3900 Part D5. LISUN states the accuracy meets China's JJG 696 first-level gloss meter requirements, and the instruments can be calibrated by an ILAC-MRA ISO 17025 (CNAS) third-party laboratory.

Choosing a model

All three measure in under a second and connect over USB and Bluetooth. Typical users are coating and spraying lines checking gloss uniformity, plastics moulders, printers, and metal, ceramic, building-material and leather manufacturers.

Key Specifications

SpecificationAGM-580AGM-500AGM-500PRO
TypeThree-angle gloss meterSingle-angle gloss meterSingle-angle gloss meter
Measuring angles20°, 60°, 85°60°60°
Measuring spot20°: 10×10mm; 60°: 9×15mm; 85°: 5×38mm9×15mm5×10mm
Measuring range20°: 0~2,000 GU; 60°: 0~1,000 GU; 85°: 0~160 GU0~1,000 GU0~1,200 GU
Graduation0~100 GU: 0.1 GU; >100 GU: 1 GU
Measurement modeSimple mode; standard and sample measurementSimple mode; standard and sample measurementNot listed
Repeatability0~100 GU: 0.2 GU; 100~2,000 GU: 0.2%0~100 GU: 0.2 GU; 100~2,000 GU: 0.2%0.1 / 0.1%
AccuracyCan be calibrated by ILAC-MRA ISO 17025 (CNAS) third partyCan be calibrated by ILAC-MRA ISO 17025 (CNAS) third partyNot listed
Measuring timeLess than 1s
Data storage100 standards and 10,000 samples100 standards and 10,000 samplesNot listed
Dimensions (L×W×H)165×51×77mm165×51×77mm84×70×17mm
Weight400g400g116g
Battery3,000mAh lithium3,000mAh lithium15,000 measurements per charge
InterfaceUSB, Bluetooth
PC softwareIncludedIncludedNot listed

Features

Applications

Frequently asked questions

Which angle should I measure at?

60° is the standard starting geometry. Standards typically move to 20° for very high-gloss surfaces and 85° for matt surfaces, which is why the AGM-580 includes all three.

Can the gloss meters be calibrated in Australia?

LISUN states they can be calibrated by an ILAC-MRA ISO 17025 accredited third-party laboratory. Ask Finch about calibration options when ordering.
