LISUN GTS-LS Imaging Luminance Glare Test System

Overview

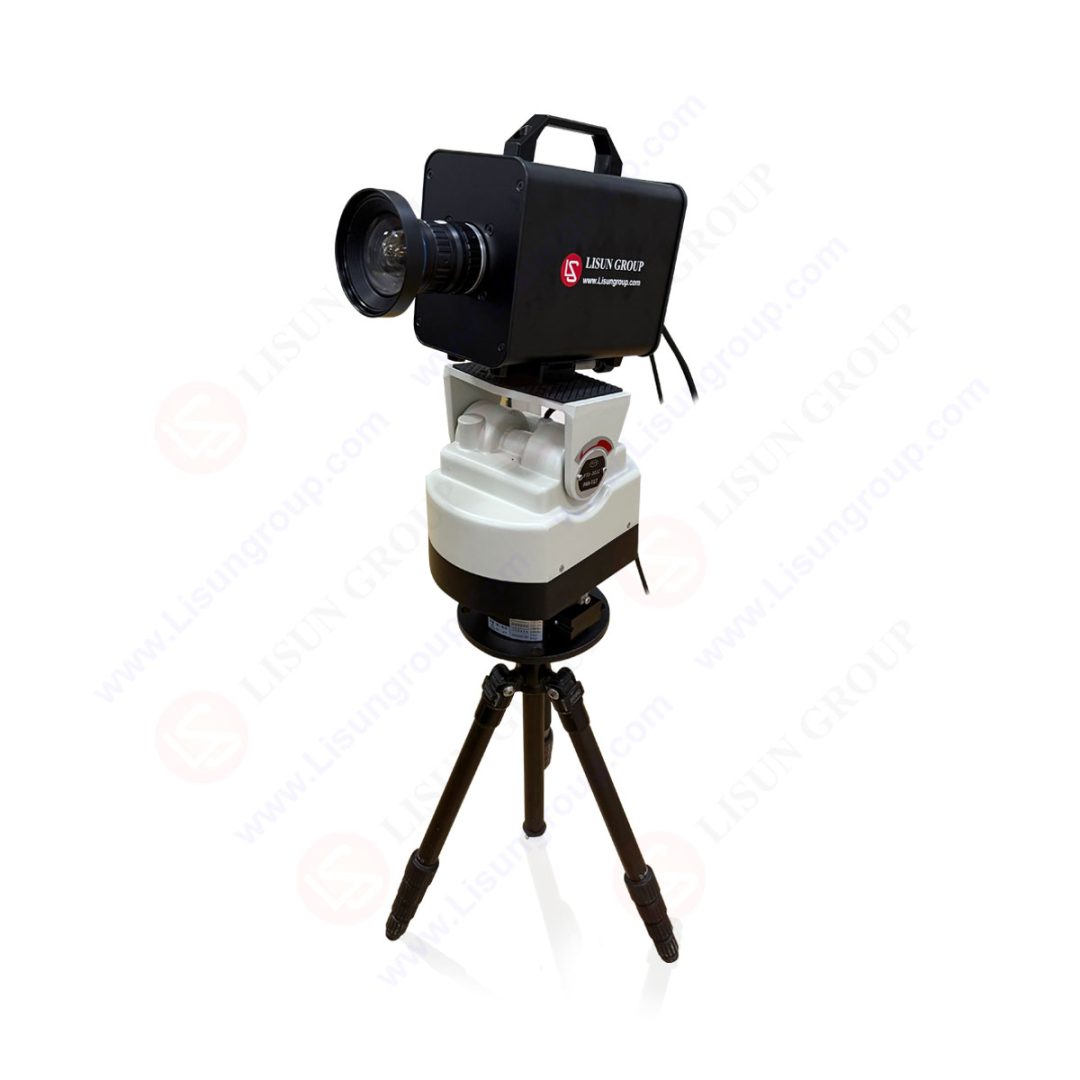

The GTS-LS measures glare in real lighting installations using an imaging luminance meter on a motorised pan/tilt head. From one luminance image it calculates unified glare rating (UGR) for interiors, threshold increment (TI) for roads and tunnels, glare rating (GR) for sports venues and daylight glare index (DGI) for windows, along with luminance, uniformity, maximum, minimum and average values, luminance distribution curves and false-colour maps.

The 16-megapixel camera has a filter matched to the eye's V(λ) response for true luminance readings. The software automatically finds and classifies each light source in the image, corrects for flickering sources, converts the trapezoidal image of a road surface into a rectangular grid for uniformity analysis, and lets you select individual luminaires to see their contribution to glare. I/O and PASS/NG outputs allow integration with PLCs, and an SDK is available.

Applications and parameters

Key Specifications

SpecificationGTS-LS
Sensor4/3-inch CMOS, Y camera, 16 megapixels (4112×4112), 3.45×3.45μm pixels
Frame rateUp to 23.5fps
Dynamic range / SNR73.6dB / 40dB
A/D width12-bit
Exposure time0.0141~29,546.9ms; any pixel area can be set
AcquisitionContinuous, soft trigger, hardware trigger
Lens12mm focal length; CS mount option
Spectral matchingColour filter matched to V(λ)
Luminance range0.01~100,000 cd/m²
Accuracy / repeatabilityClass A (±4% reading ±1 digit, Illuminant A) / ±0.1%
Interface / powerUSB 3.0; 5V, <2W
Size / weight155×131×126mm; 500g

Features

Applications

Frequently asked questions

Can the GTS-LS measure UGR on site?

Yes. It captures a luminance image of the room and calculates UGR from the luminance, size and position of each luminaire it detects.

Does flicker affect the measurement?

Mains-powered lights flicker faster than the camera's short exposures can average. The GTS-LS has a flicker measurement mode that corrects for this to keep results repeatable.
