LIS-APS Four-Quadrant Bipolar Voltage Simulator – LISUN

LIS-APS-4010K300 / LIS-APS-4030K300 / LIS-APS-8050K300 / LIS-APS-80100K300

LISUN LIS-APS four-quadrant bipolar power supplies for ISO 16750-2 and ISO 7637-2: ±40V or ±80V, up to ±100A, DC to 300kHz, adjustable source impedance.

EMC & EMI Test Equipment
EMS Test System
Bench-top Instrument
ISO 16750-2:2023; ISO 7637-2:2021; LV 124; LV 148-E09; VW 80000:2023; GS 95024-2:2011; GMW 3172:2023; GB/T 28046.2-2019; GB/T 21437.2-2021
Enquire About This Product

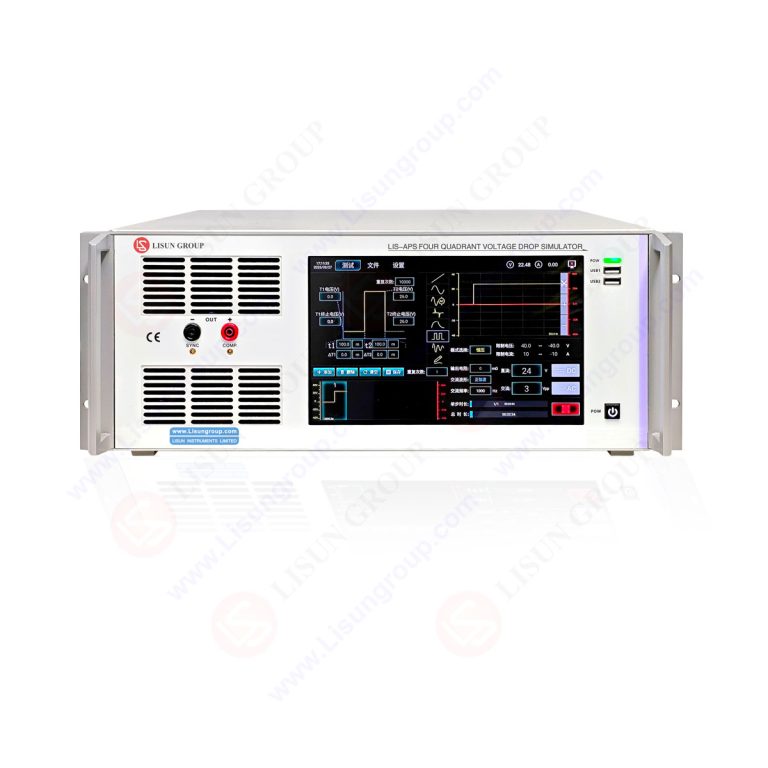

LISUN LIS-APS Four-Quadrant Bipolar Voltage Simulator

Overview

The LIS-APS series are four-quadrant bipolar power supplies, also called voltage drop or battery simulators. They can source and sink current at either polarity and switch seamlessly between positive and negative output, so they can reproduce a vehicle battery's voltage fluctuations, start-stop profiles, transient pulses and reverse polarity.

A fully controlled H-bridge with dual closed-loop voltage and current control runs from DC to 300kHz with a rise rate of at least 15V/μs. Source impedance is adjustable from 0 to 500mΩ to match carmakers' requirements, and arbitrary waveforms, ISO 7637-2 pulses 2b and 4, and ripple can be programmed and combined. The LIS-APS is the core of LISUN's LS-ISO16750 test system and is also used in rail, aerospace, industrial and medical electronics.

Key Specifications

SpecificationLIS-APS-4010K300LIS-APS-4030K300LIS-APS-8050K300LIS-APS-80100K300
OutputFour-quadrant, bipolar
Rated voltage±40V DC/AC±80V DC/AC
Rated current0~±10A0~±30A0~±50A0~±100A
Peak current2× rated for 20~200ms
Frequency rangeDC~300kHz
ModesConstant voltage, constant current; accuracy 0.05%, setting 1mV/1mA
Voltage rise rate≥15V/μs
AC amplitude>30Vpp at 100kHz; >10Vpp at 300kHz
Source impedance0~500mΩ, 1mΩ resolution
Ripple<10mVrms
WaveformsISO 7637-2 P2b and P4, linear, DC, sine, square, triangle, exponential, arbitrary

Features

Applications

Frequently asked questions

Why four-quadrant?

A four-quadrant supply can both deliver and absorb power at either polarity. That is needed for reverse polarity tests, fast voltage drops into capacitive loads and simulating energy fed back from motors.

Which model for 48V systems?

The ±80V models (LIS-APS-8050K300 and 80100K300) cover 48V system tests to LV 148.
