PM400F Flash Photometer – LISUN

PM400F

LISUN PM400F flash photometer: effective intensity of flashing and pulsed lights to ECE R65 and SAE J595, 1 MSPS sampling, 10μs resolution.

Lighting & Photometric Test Instruments
Other LED Test Equipments
Bench-top Instrument
ECE R65; SAE J595; SAE J845; MH/T 6012-2015; HB 6490-1991; JT/T 761-2022; JJF 1330-2011
Enquire About This Product

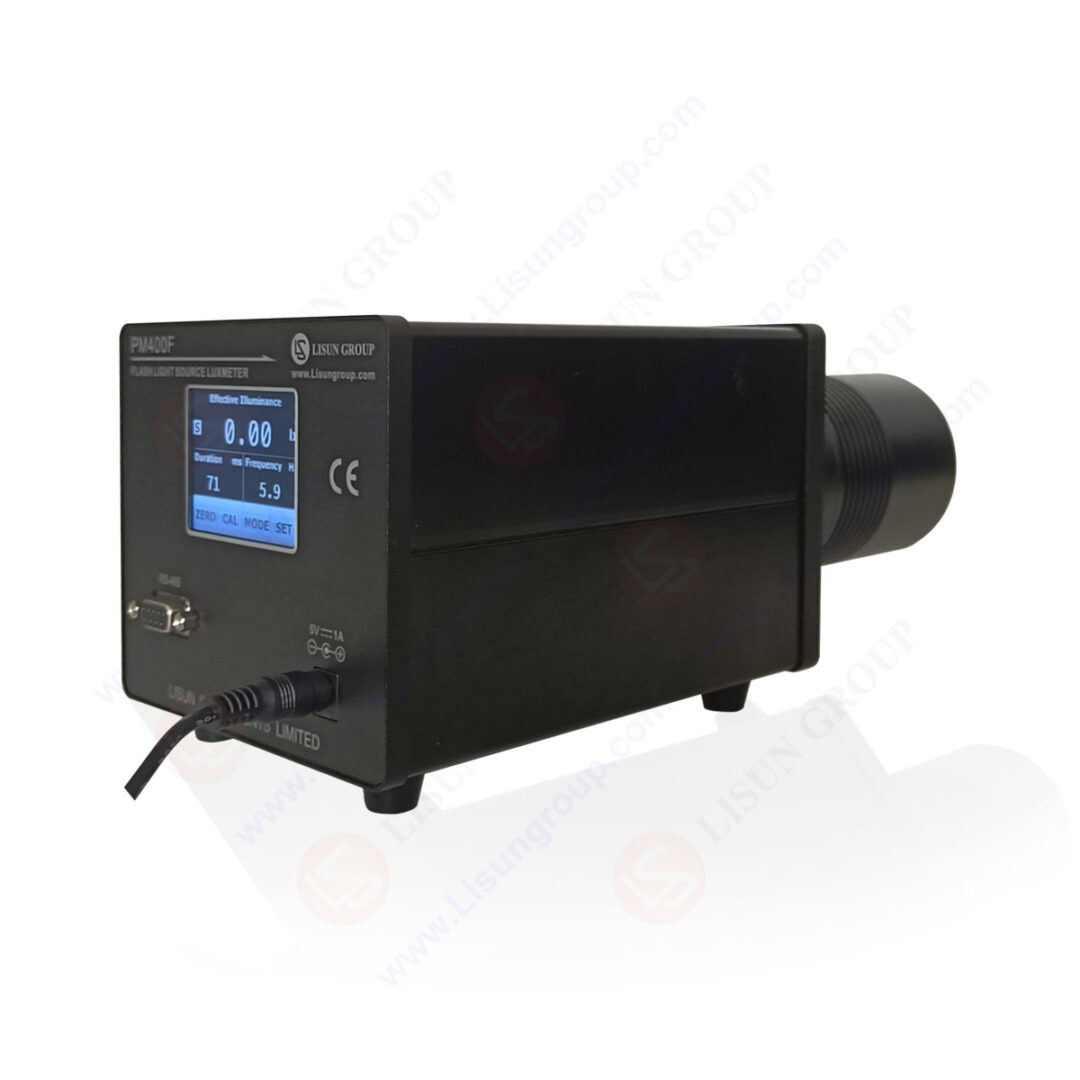

LISUN PM400F Flash Photometer

Overview

The PM400F measures the photometric output of flashing and pulsed light sources, where an ordinary photometer cannot keep up. It reports flash frequency, flash duration, effective luminous intensity, and instantaneous maximum, minimum and average intensity. Note that it is a flash (pulsed light) photometer, not a tester for handheld torches.

It is used for type and factory acceptance testing of aviation obstruction lights, aircraft anti-collision and navigation lights, traffic warning lights, emergency vehicle beacons, pulsed LEDs and signal flares. A 16-bit converter samples at up to 1 MSPS and stores up to 20 million points, and the detector has close V(λ) matching for square, irregular and pulse-train waveforms. It works on its own or with LISUN's LSG-1950 goniophotometers to map effective intensity over angle.

Key Specifications

SpecificationPM400F
Measured parametersFlash frequency, flash duration, effective intensity, instantaneous max/min intensity, average intensity
A/D conversion16-bit, up to 1 MSPS; stores up to 20 million samples
Illuminance range0.0001 lx~200 klx, 4 auto-switching ranges
Photometric probeCIE Class A (Class L optional)
Test time window100ms~10s
Time resolution10μs
InterfaceUSB; works with LISUN LSG goniophotometers
Display / powerLCD; DC 5V/1A
Size / weight170×120×120mm; about 1kg

Features

Applications

Frequently asked questions

Is the PM400F for testing torches?

No. Despite the "flashlight photometer" name, it measures flashing and pulsed lights such as warning beacons and aviation lights.

Can it measure effective intensity at different angles?

Yes, when used with a LISUN LSG-1950 or LSG-1950S goniophotometer.
