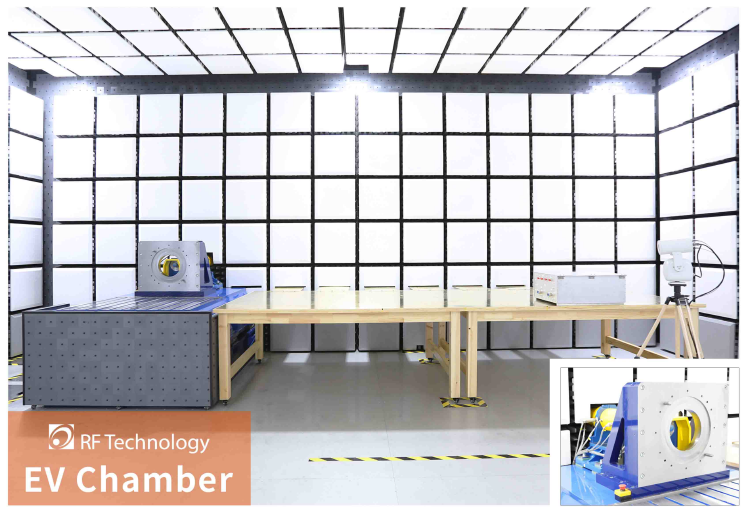

EVC-DA — RF Technology EV / Drivetrain EMC Chamber

Overview

The RF Technology EV Chamber is an integrated EMC test facility for electric and hybrid drivetrains. It combines an anechoic shielded chamber with a high-power dynamometer, a battery simulator and supporting infrastructure, so motor controllers and complete EV powertrains can be tested under real operating conditions, including torque control, speed control and power generation modes.

The chamber is built to CISPR 25 and GB/T 18655 and accommodates motors for buses, trucks and passenger vehicles. An insulated dynamometer motor spindle and insulated, metal-shielded long axis allow fast motor installation and alignment while keeping the chamber's EMC performance.

EVC-DA or EVC-DD?

The two versions differ only in the dynamometer. The EVC-DA uses a dual-axis loading dynamometer, suited to AWD and multi-motor drivetrains that need two shafts loaded together. The EVC-DD uses a direct-drive dynamometer for single-motor drivetrains. Both offer torque options of 570, 1000 and 4000 N·m, maximum speeds of 15,000, 12,000 or 8,000 rpm, and 250, 300 or 350 kW.

The integrated battery simulator provides up to 1500 V and ±1200 A, with zero-time charge/discharge switching and regenerative energy return. Finch supplies and installs the chamber in Australia as a complete turnkey project, including civil works coordination, installation and commissioning.

Key Specifications

SpecificationEVC-DAEVC-DD
DynamometerDual-axis loadingDirect drive
Torque570 / 1000 / 4000 N·m
Max. speed15,000 / 12,000 / 8,000 rpm
Power250 / 300 / 350 kW
Battery simulatorUp to 1500 V, ±1200 A, 250–350 kW; water-cooled; regenerative
Motor test modesTorque control, speed control, power generation
StandardsCISPR 25, GB/T 18655
ChamberHybrid absorbers; pan-type steel shielding; custom configuration on enquiry

Features

Applications

EV motor and motor controller EMC testing to CISPR 25 and GB/T 18655; drivetrain EMC characterisation under load; bus, truck and passenger EV powertrain development and pre-compliance; aviation and high-speed generator EMC testing.
