EMS-ISO7637 Automotive Transient Immunity Generator

Overview

A vehicle's power supply is full of transients: inductive loads switching off, the ignition being cut, fast switching bursts and load dump when the battery disconnects while the alternator is charging. ISO 7637-2 defines these as test pulses applied to the supply lines of electronic components, and ISO 7637-3 defines how fast transients are coupled onto signal lines.

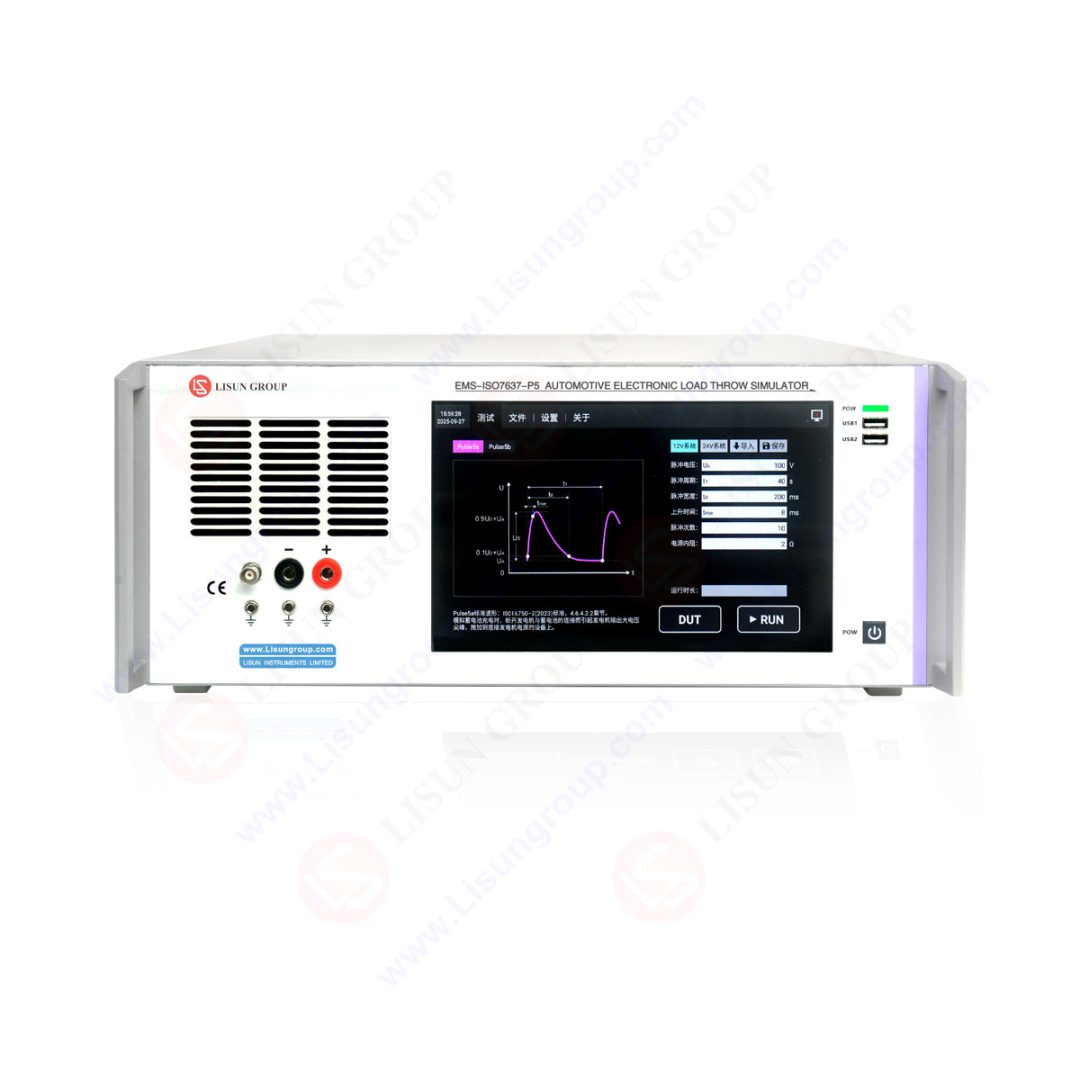

The EMS-ISO7637 combines the pulse generators, artificial network and coupling/decoupling network in one 4U chassis weighing no more than 15kg. It produces pulses 1, 2a, 3a, 3b, 5a and 5b for 12V, 24V and 48V systems, with Volkswagen and GM pulses 6 and 7 available as customisation. A 10.1-inch English/Chinese touch screen holds standard test templates, and PC software for Windows 7 to 11 records data, plots curves and exports reports.

Models

Key Specifications

PulseParameterSpecification
Pulse 1Voltage / impedance-10~-700V ±5%; Ri 2/4/10/30/50/60/100Ω
Pulse 1Timingtd 50~2000μs; tr 0.5~1μs (12V) or 1.5~3μs (24V); t1 0.2~999s; 1~9,999 pulses
Pulse 2aVoltage / impedance10~700V ±5%; Ri 2/4/10/30/50/60/100Ω
Pulse 2aTimingtd 50~2000μs; tr 0.5~1μs; t1 0.2~999s
Pulse 3a/3bVoltage / impedance±10~±700V ±5%; Ri 50Ω
Pulse 3a/3bTimingtr 5ns ±1.5ns; td 150ns ±45ns; burst 1~100ms; burst spacing 10~9,999ms; repetition 0.1~200kHz
Pulse 5a/5bVoltageUs 10~210V; clamp Uss 10~200V; Ri 0.5~40Ω
Pulse 5a/5bTiming / energytr 0.1ms~10s; td 10ms~9,999s; 200J max
AllEUT supplyBuilt-in CDN 80V/30A (80V/50A and 80V/100A optional)
AllControl / interfaces10.1-inch Android touch screen, PC software; LAN, USB, RS485
AllSize / weight460×180×550mm; 15kg (P5 model 10kg)
AllCalibrationISO 17025 CNAS certificate

Features

Applications

Frequently asked questions

Which model do I need?

The P1235 covers all ISO 7637-2 pulses including load dump. If you already have a load dump simulator choose the P123; if you only need load dump (also used for ISO 16750-2) choose the P5.

Can it test signal lines?

Pulses 3a and 3b can be coupled onto signal lines using the capacitive (CCC) and direct (DCC) coupling methods of ISO 7637-3, using LISUN's optional coupling accessories.
