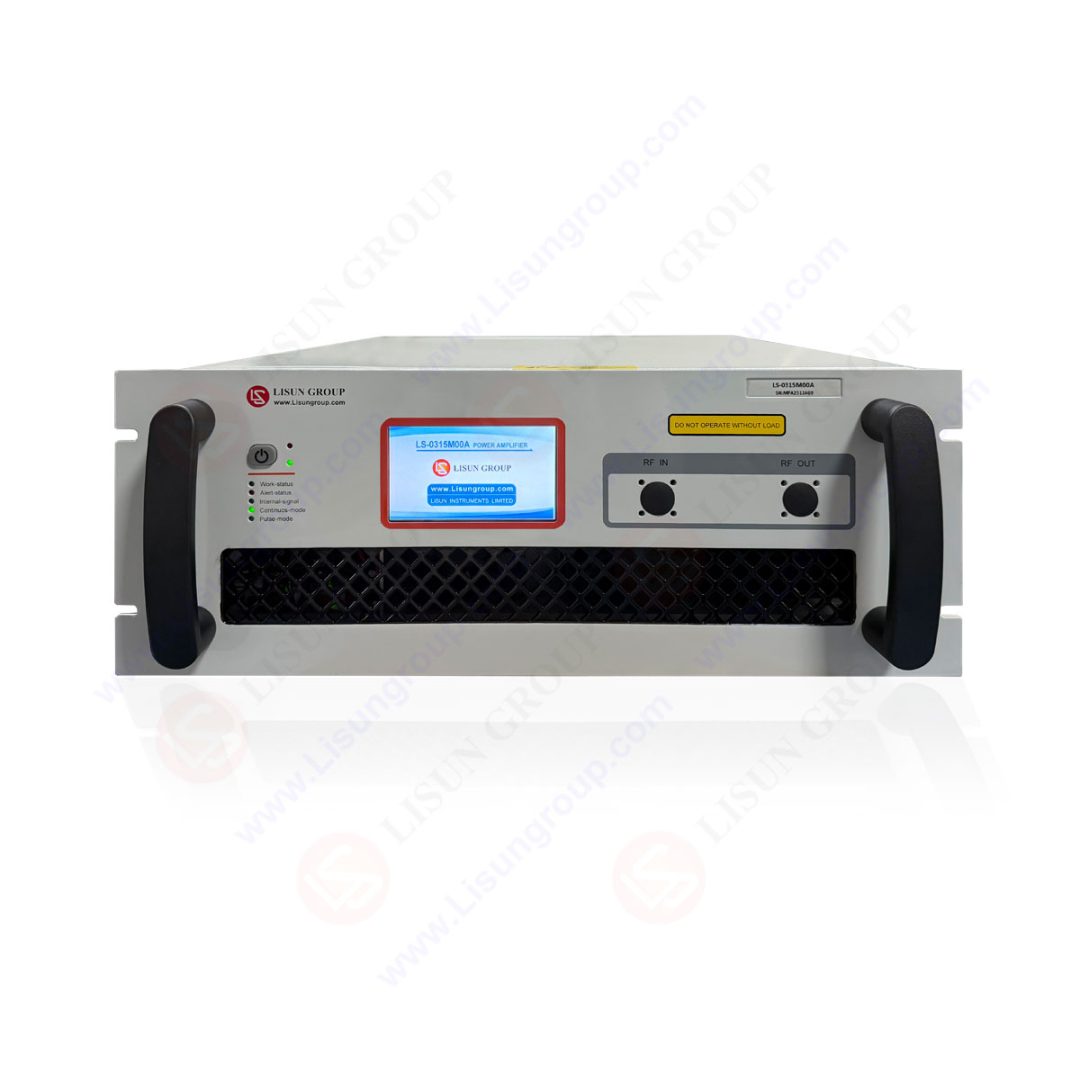

LISUN LS-PA Series EMC RF Power Amplifiers (to 18GHz)

Overview

RF immunity tests need a clean, powerful RF signal. The LS-PA series are linear RF power amplifiers that drive the antenna, CDN or injection probe in radiated immunity (RS), conducted immunity (CS) and bulk current injection (BCI) test systems, with good gain flatness, low harmonics and low noise.

Five models cover 150kHz–230MHz for IEC 61000-4-6 conducted immunity, 100kHz–400MHz for ISO 11452-4 BCI, and 80MHz–1GHz, 1–6GHz and 6–18GHz for IEC 61000-4-3 radiated immunity. Each has protection against high VSWR, over-drive, over-temperature, over-voltage and over-current, continuous gain adjustment, a 50dB sample port, and GPIB, RS232 and LAN interfaces.

Key Specifications

SpecificationLS-PA150K230M-80WLS-PA100K400M-200WLS-PA80M1G-300WLS-PA1G6G-100WLS-PA6G18G-100W
Frequency range150kHz~230MHz100kHz~400MHz80MHz~1000MHz1~6GHz6~18GHz
Rated power80W200W300W (500W, 1000W options)100W (200W, 400W options)100W (200W option)
P1dB powermin 50Wmin 150Wmin 250Wmin 80W–
Small signal gain49dB53dB55dB53dB53dB
Gain variation±3dB±3.5dB±4.5dB±5dB±5dB
Main useIEC 61000-4-6 conducted immunityISO 11452-4 BCIIEC 61000-4-3 radiated immunity
Size (W×H×D)48×17.8×55cm (4U)48×22.5×55cm (5U)48×17.8×55cm (4U)48×22.5×55cm (5U)48×22.5×55cm (5U)
Weight20kg30kg25kg30kg30kg
Harmonics at P1dBmax -15dBc
Spurious-50dBc-60dBc
Input for rated outputmax 0dBm
Input VSWRmax 2:1
Output VSWR tolerance5:1 typical
ModulationAM, FM, PM, OFDM
ConnectorsN-type female input, output and 50dB sample port
InterfacesGPIB, RS232, LAN
Supply / cooling100~240VAC, 50/60Hz; self-contained air cooling

Features

Applications

Frequently asked questions

How much power do I need for radiated immunity?

It depends on the field strength, test distance and antenna gain. For IEC 61000-4-3 at 10V/m, LISUN offers the 80MHz–1GHz amplifier from 300W up to 1000W; ask us to size it for your chamber.

Do these work with other brands' systems?

Yes. They have standard 50Ω N-type connectors and GPIB, RS232 and LAN control.
