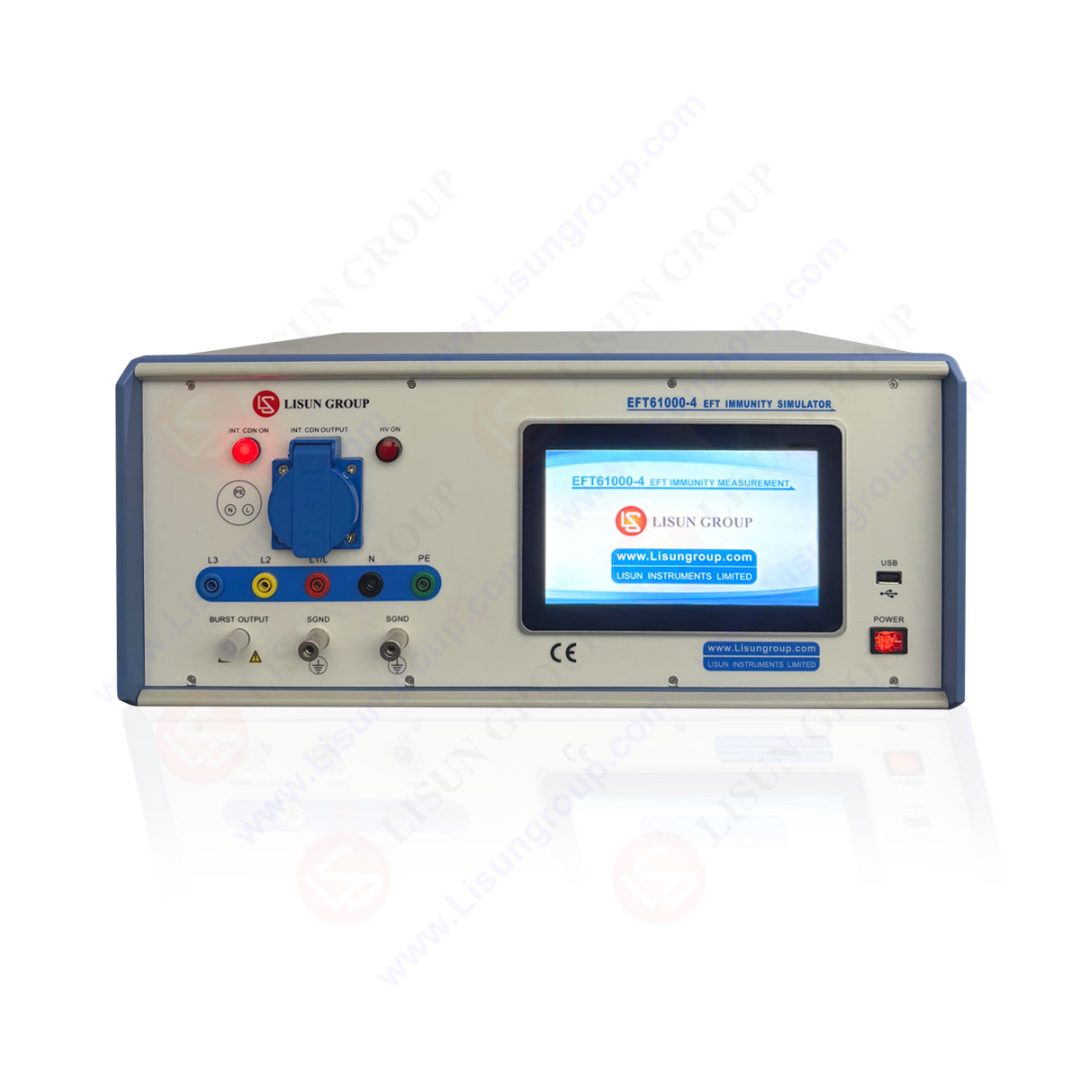

LISUN EFT61000-4 EFT/Burst Generator (IEC 61000-4-4)

Overview

Electrical fast transients, or bursts, are trains of very short pulses caused by things like relay contact bounce and switching inductive loads. The EFT61000-4 series generates the 5/50ns burst waveform of IEC 61000-4-4 so you can check that equipment keeps working when its power and signal lines are hit by them.

Output is up to 5kV (or 6kV on A models), with burst frequency adjustable from 1kHz to 1MHz and automatic polarity switching. A built-in three-phase CDN (16A or 32A) couples the burst onto mains lines, and an external 100A CDN is available for higher-current equipment. The Android touch screen in English and Chinese holds the IEC and GB test levels for one-touch setup.

Accessories

LISUN supplies the EFT-CLAMP capacitive coupling clamp for signal lines such as RJ45, the EFT-CAL calibration kit with 50Ω and 1000Ω attenuators, and the EFT-DESK test table.

Key Specifications

SpecificationEFT61000-4EFT61000-4AEFT61000-4-32AEFT61000-4A-32AEFT61000-4-100AEFT61000-4A-100A
Output voltage0~5kV0~6kV0~5kV0~6kV0~5kV0~6kV
Pulse frequency1kHz~1,000kHz, continuously adjustable
PolarityPositive, negative, automatic alternation
Internal resistance50Ω ±20%, 1,000Ω ±20%
Rise time5ns ±30%
Pulse width50ns ±30% (50Ω); 35~150ns (1kΩ)
Burst length0.01~20ms
Burst period100~500ms
Test time1~9,999s
CDNBuilt-in 3-phase 16ABuilt-in 3-phase 32AExternal 3-phase 100A
SupplyAC 220V (110V optional) ±10%, 50/60Hz

Features

Applications

Frequently asked questions

How do I test signal cables?

Use the EFT-CLAMP capacitive coupling clamp, which IEC 61000-4-4 Clause 6.4 specifies for signal and communication lines.

What if my product draws more than 32A?

Choose a 100A model, which uses an external 100A three-phase CDN.
