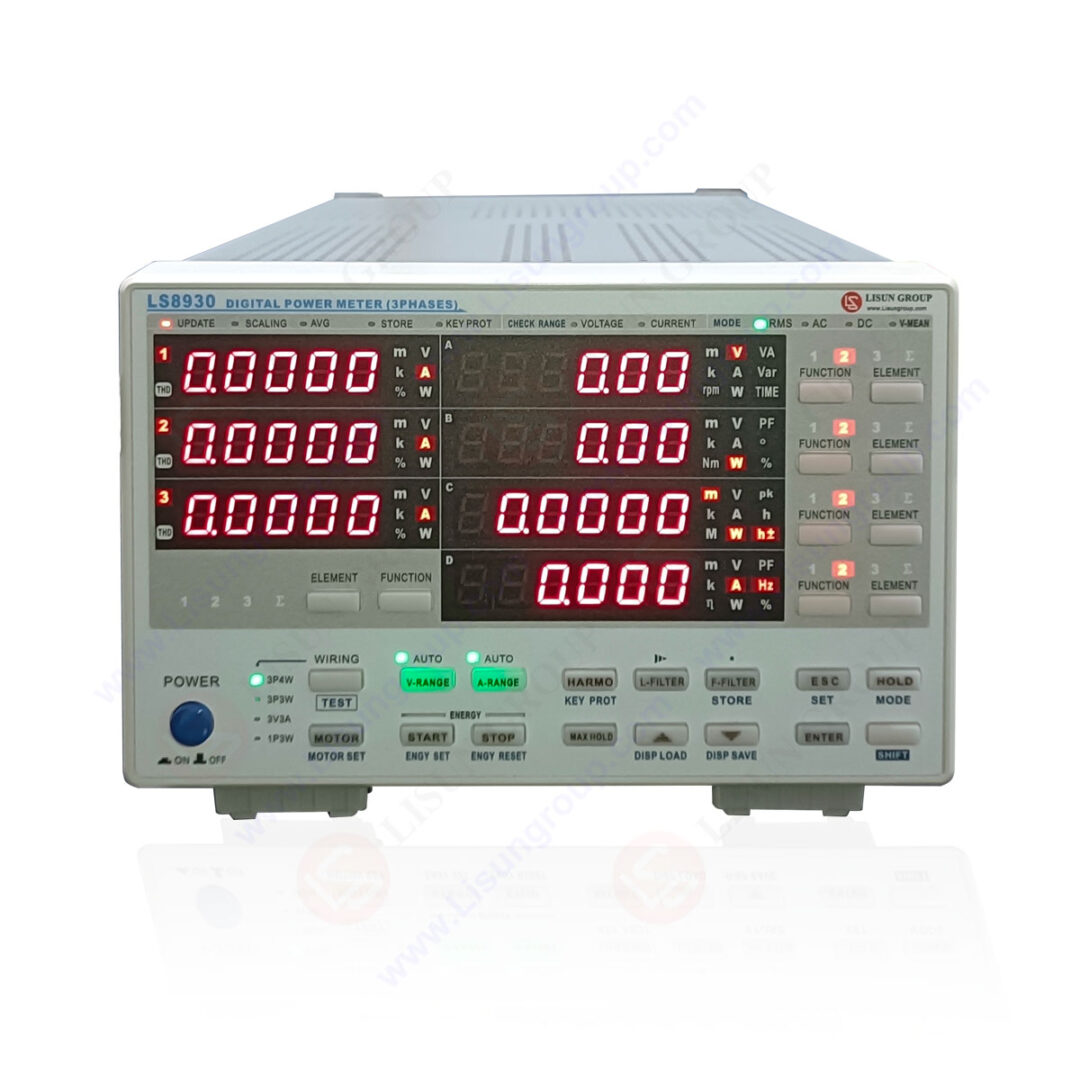

LISUN LS8930 three-phase power analyzer: 3 voltage and 3 current inputs, 1000V, 50A or 5A cards, DC to 100kHz, harmonics to the 50th, ±(0.1% rdg + 0.05% rng).
Enquire About This Product
Inverters, motor drives and switching power supplies produce distorted, high-frequency waveforms that ordinary power meters measure poorly. The LS8930 is a wideband three-phase power analyzer with three voltage and three current inputs, built to measure them accurately, for example to test a motor behind an inverter or evaluate the efficiency of a single-phase-in, three-phase-out inverter.
A 16-bit converter sampling every 10μs (100kS/s) gives a measurement bandwidth from DC to 100kHz, with direct voltage inputs up to 1000V, optional 50A or 5A current cards and fully floating, isolated channels. It measures true RMS, AC and DC components, peaks, power factor, phase, harmonics from the 1st to the 50th, and energy and amp-hour integration, with 500Hz and 5.5kHz hardware filters and automatic or manual ranging. Basic accuracy is ±(0.1% of reading + 0.05% of range).
| Item | Specification |
|---|---|
| Inputs | 3 voltage, 3 current, floating isolated |
| Voltage ranges | 30, 60, 150, 300, 600, 1000V |
| Current ranges (50A card) | 1, 2, 5, 10, 20, 50A |
| Current ranges (5A card) | 0.1, 0.2, 0.5, 1, 2, 5A |
| Input impedance | Voltage about 2MΩ; current about 4mΩ (low range) |
| Sampling | 16-bit, about 10μs (100kS/s), voltage and current sampled simultaneously |
| Bandwidth | DC~100kHz |
| Filters | 500Hz and 5,500Hz hardware filters |
| Accuracy | ±(0.1% rdg + 0.05% rng) |
| Ranging | Automatic or manual |
| Measured items | Urms, Umn, Udc, Uac; Irms, Imn, Idc, Iac; active, apparent and reactive power; PF; phase; frequency; peaks; crest factor; energy (WP, WP+, WP-) and amp-hours (q, q+, q-); harmonics 1st~50th |
Inverter outputs contain switching harmonics far above 50Hz. A meter with a narrow bandwidth misses that energy and reports the wrong power and efficiency. The LS8930 measures from DC to 100kHz.
The 50A card suits motors and inverters up to 50A per phase; the 5A card gives better resolution for small loads.
