DOW61000-18 Damped Oscillatory Wave Generator – LISUN

DOW61000-18 / DOW61000-18F

LISUN DOW61000-18 slow (100kHz/1MHz) and DOW61000-18F fast (3/10/30MHz) damped oscillatory wave generators to IEC/EN 61000-4-18, with built-in CDN.

EMC & EMI Test Equipment
EMS Test System
Bench-top Instrument
IEC 61000-4-18; EN 61000-4-18; GB/T 17626.18
Enquire About This Product

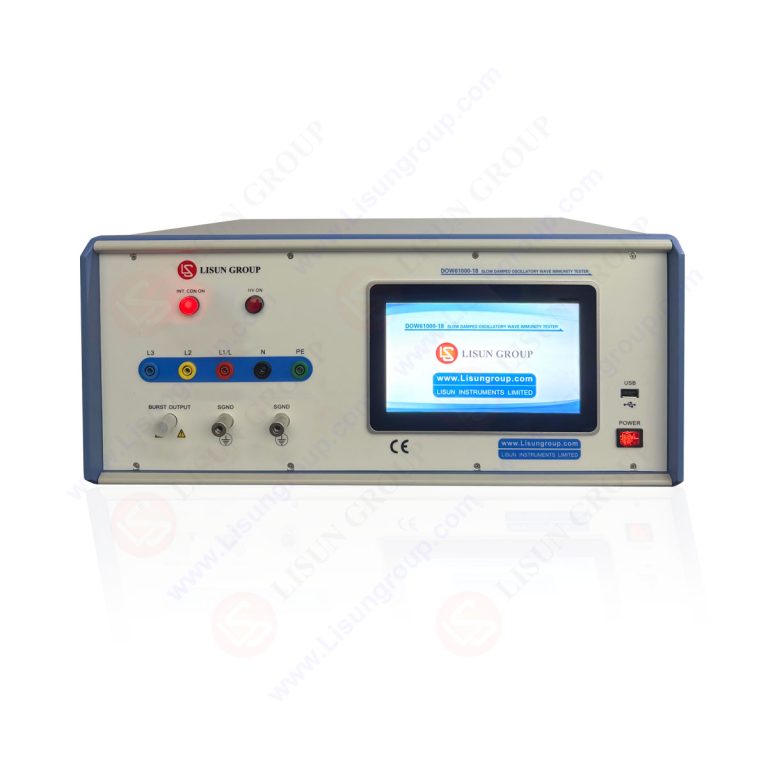

LISUN DOW61000-18 Damped Oscillatory Wave Generator

Overview

Switching in substations and high-altitude electromagnetic pulses (HEMP) create oscillating transients that die away over a few cycles. The DOW61000-18 series reproduces them by discharging a pre-charged capacitor into an RLC circuit, and injects the damped oscillatory wave into the EUT's power port through a built-in coupling/decoupling network, or into signal and control ports through optional CDNs.

The DOW61000-18 generates the slow damped oscillatory wave of IEC 61000-4-18 Clause 4.2 at 100kHz and 1MHz, which simulates disconnector operation and bus reflections, for substation primary equipment and power transformers. The DOW61000-18F generates the fast damped oscillatory wave of Clause 4.3 at 3, 10 and 30MHz, which simulates fast circuit breaker operation and HEMP, for secondary equipment in medium and high voltage substations and combiner cabinets in renewable energy plants.

Both have built-in IEC test levels, voltage stepping and an LCD touch screen, and come with a CNAS ISO 17025 calibration certificate. The optional CDN61000-18S-S and CDN61000-18S-A couple the slow wave onto unshielded signal and data lines.

Key Specifications

SpecificationDOW61000-18DOW61000-18F
TypeSlow damped oscillatory waveFast damped oscillatory wave
Open-circuit voltage (first peak)200V~3kV ±10%450V~4.4kV ±10%
Short-circuit current (first peak)1.25~12.5A ±20%5~80A ±20%
Output impedance200Ω50Ω
Oscillation frequency100kHz, 1MHz ±10%3MHz, 10MHz, 30MHz ±10%
Voltage rise time75ns ±20%5ns ±30%
Damping5th peak >50% of 1st peak; 10th peak <50% of 1st peak
Repetition rate40/s at 100kHz; 400/s at 1MHz5000/s
Burst duration1~9,999s50ms (3MHz), 15ms (10MHz), 5ms (30MHz)
Burst period1~9,999s300ms ±20%
PolarityPositive, negative, automatic
Built-in CDNAC three-phase five-wire 380V/16A or DC 300V/16A
CalibrationCNAS ISO 17025 certificate

Features

Applications

Frequently asked questions

Slow or fast damped wave?

Use the slow wave (100kHz/1MHz) for equipment exposed to disconnector switching, and the fast wave (3–30MHz) for equipment exposed to fast breaker operation or HEMP. Your product standard sets which is needed.

How do I test signal lines?

With the optional CDN61000-18S series, designed for unshielded symmetrical, asymmetrical and high-speed lines.
