Overview

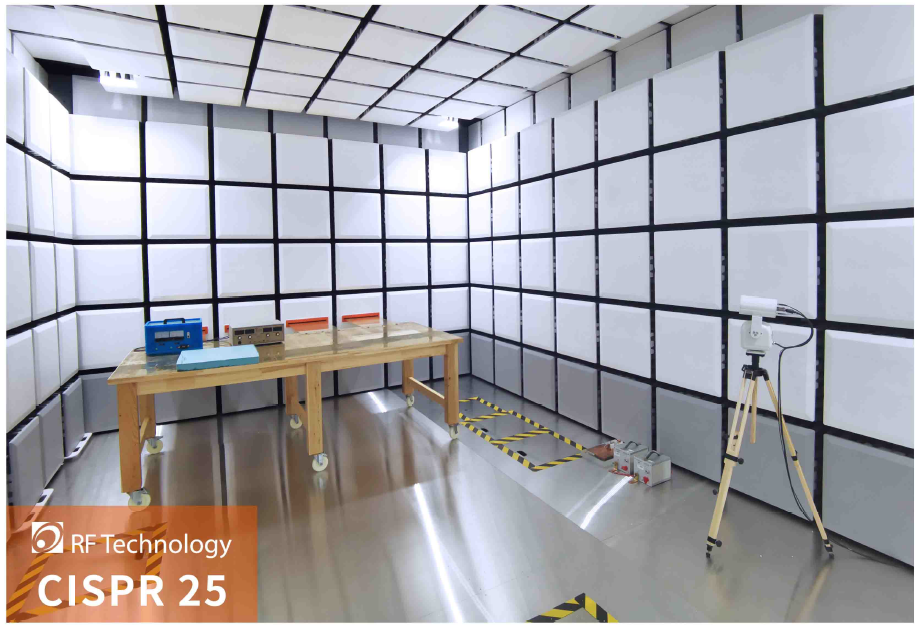

The RF Technology CISPR25 Automotive Chamber is a shielded anechoic chamber purpose-built for testing the electromagnetic emissions of automotive electronic components and modules to the CISPR25 standard. It provides a controlled, low-noise electromagnetic environment for measuring radiated and conducted emissions from vehicle components including infotainment systems, ECUs, sensors, electric motors, and associated wiring harnesses.
The chamber features a metallic ground plane simulating the vehicle floor, with absorber-lined walls and ceiling to control reflections. The layout accommodates CISPR25-compliant test setups including the 1m antenna-to-harness measurement geometry, artificial network (AN) connections, and standard component placement. Custom configurations are available to accommodate larger assemblies including full wire harnesses and engine subsystems.
Constructed with pan-type galvanised steel shielding and RF Technology absorbers, with shielded door options to suit the installation. Supplied and installed in Australia by Finch Electronic Solutions.
Key Specifications
Test standard: CISPR25 | Metallic ground plane | 1m antenna-to-harness geometry | Absorber-lined walls and ceiling | Custom sizing for wiring harness and subsystem assemblies | Shielding: pan-type galvanised steel | Custom dimensions on enquiry
Features
- Purpose-built for CISPR25 automotive component EMC testing
- Metallic ground plane replicating vehicle floor installation conditions
- Absorber-lined walls and ceiling; controlled low-noise measurement environment
- Accommodates 1m antenna-to-harness CISPR25 geometry
- Supports radiated and conducted emission measurements per CISPR25
- Custom sizing to accommodate full wiring harnesses and subsystem assemblies
- Pan-type galvanised steel shielding construction
- Shielded door options: swing or sliding
- Turnkey supply and installation by Finch Electronic Solutions
Applications
Automotive ECU, sensor, and module radiated emission testing; Infotainment and telematics system EMC compliance; Wiring harness emission characterisation; EV and HEV component EMC testing to CISPR25; Component-level automotive EMC pre-compliance and certification; OEM automotive supplier EMC laboratory
