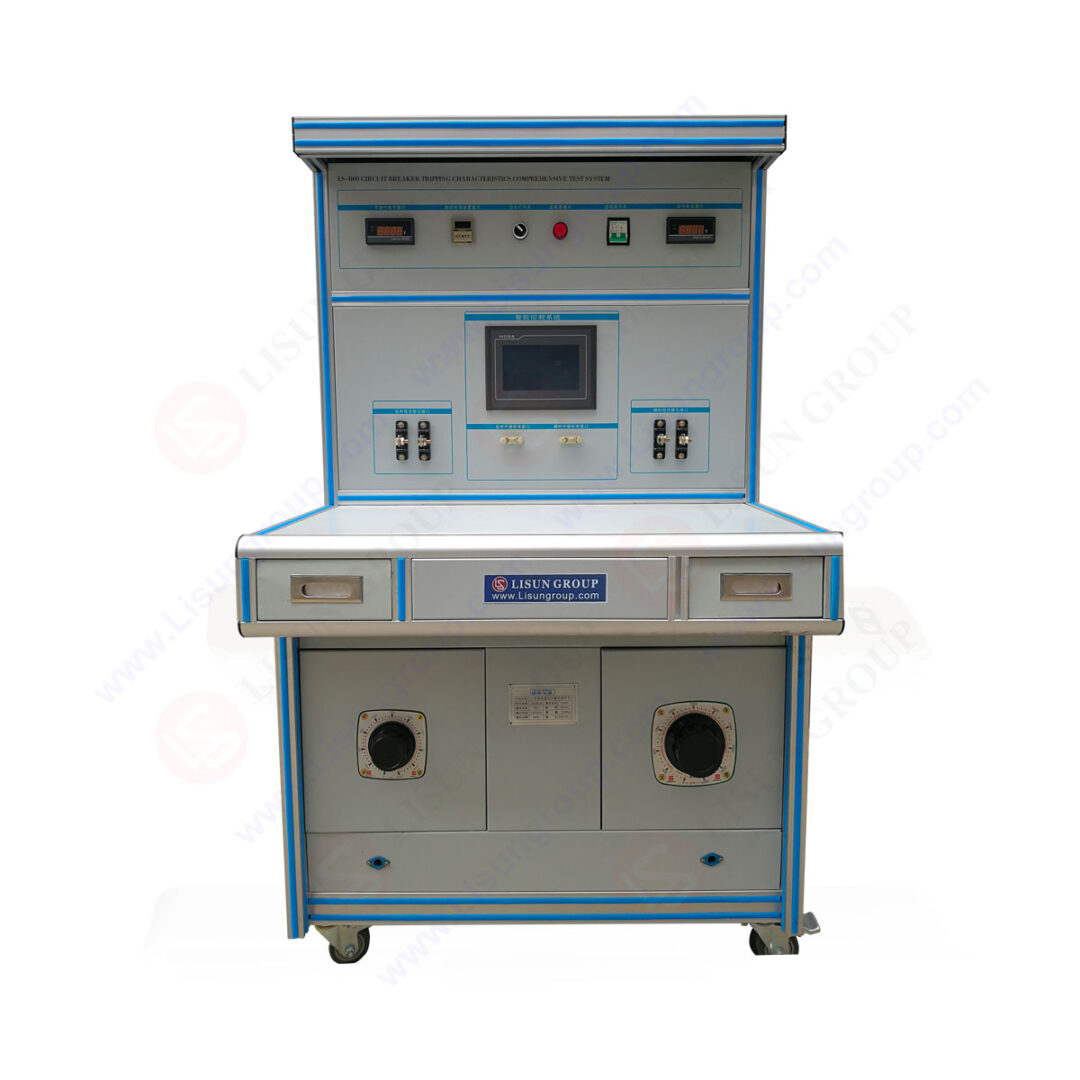

LISUN LS-B60 Circuit Breaker Trip Characteristic Tester

Overview

Miniature and moulded case circuit breakers must trip within set times at defined multiples of their rated current. The LS-B60 tests these characteristics: time-delay (thermal) tripping, instantaneous (magnetic) tripping and temperature rise.

It combines a test box and test machine under PLC control with a touch screen. Built-in time-delay and instantaneous stations accept 1- to 4-pole breakers through terminal connections, and the chamber can be heated from room temperature to 50°C with ±1°C stability for a stable test environment. Output current is set on the touch screen and regulated automatically. In the delay test, the system applies 1.13 times rated current and then automatically rises to 1.45 times after 5 seconds, as the standards require.

Key Specifications

ItemSpecification
General
ControlPLC with touch screen
Test itemsTime-delay tripping at 1.13, 1.45 and 2.55 × In; instantaneous tripping at 3~10 × In; temperature rise
ChamberRoom temperature to 50°C, 0.1°C resolution, ±1°C stability
Breakers1 to 4 poles
Time-delay tripping test
Output currentAC 10~350A
Output voltage0~5V
Sample rating3~125A
WaveformSine, distortion ≤5%
Current / voltage accuracyClass 0.5
Test time1s~9999h 59m 59s
Instantaneous tripping test
Output currentAC 100~1500A, 1A resolution
Current accuracyClass 0.5
Test time≤0.2s
Trip time limits1~200ms upper and lower
Timing1~9999ms

Features

Applications

Frequently asked questions

What current range does it cover?

Time-delay tests from 10A to 350A on breakers rated 3A to 125A, and instantaneous tests from 100A to 1500A.

Why does the chamber need heating?

Thermal tripping depends on ambient temperature, so the standards specify the reference temperature at which the test is run.
