CH316 Multiway Switch Life Tester – LISUN

CH316

LISUN CH316 16-channel switch life tester for lamps and luminaires to IEC 60598-1: independent counters, 1s to 99h on/off timing, up to 1,000,000 cycles.

Lighting & Photometric Test Instruments
Lamp Life Test
Bench-top Instrument
IEC 60598-1:2024; IEC 60432-1:2005; GB/T 7000.1-2023; GB/T 33721-2026
Enquire About This Product

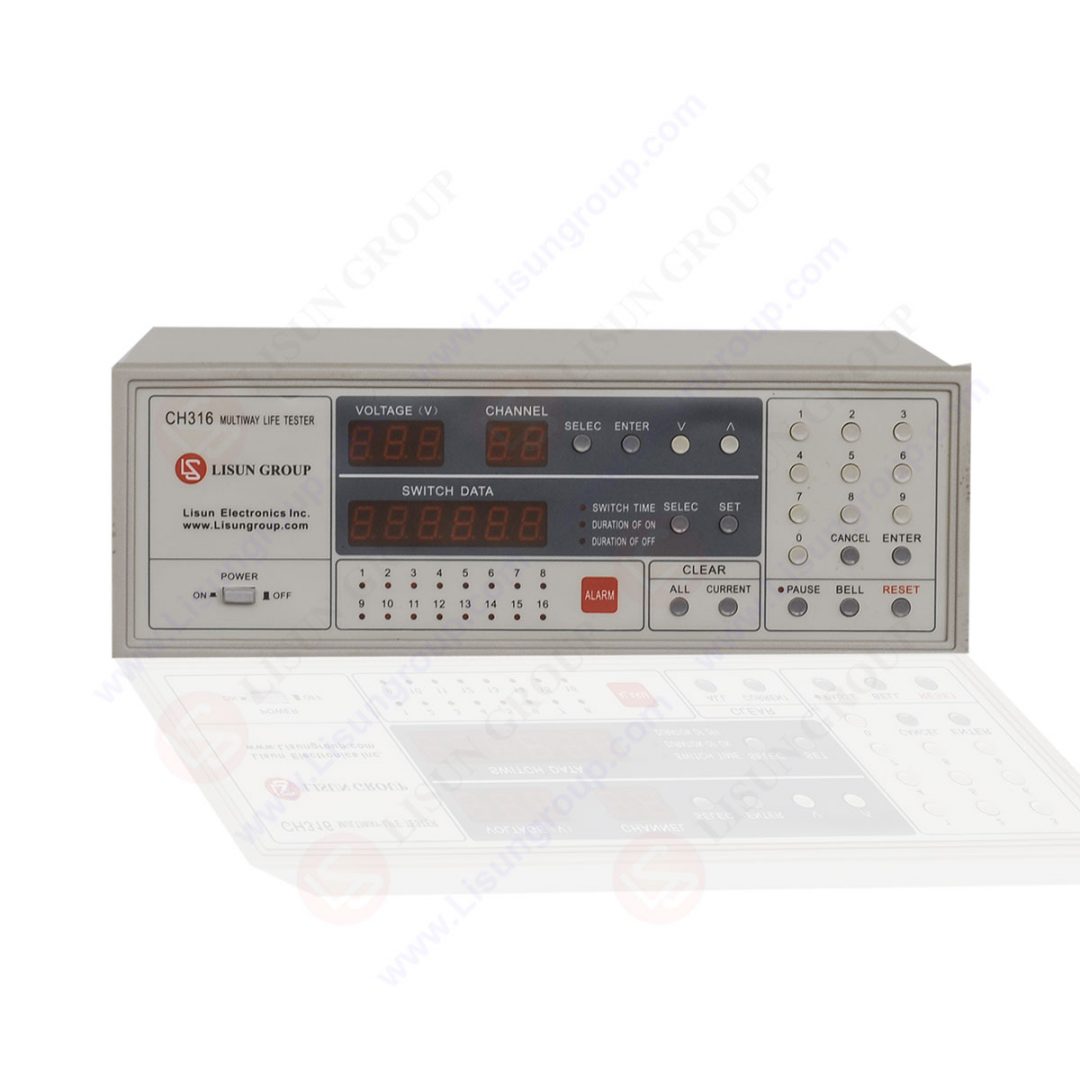

LISUN CH316 Multiway Switch Life Tester

Overview

The CH316 tests the on/off switching endurance of lamps and luminaires. Sixteen channels run independently, each counting the switching cycles of its own sample in real time, so a failure on one channel does not affect the others. Samples can be added or changed at any time without stopping the test.

On and off times are set anywhere from 1 second to 99 hours 59 minutes 59 seconds, and each channel counts up to 1,000,000 cycles. Data is saved automatically if power fails and the test resumes where it stopped. Lighting manufacturers' QC departments and test labs use it to verify switching durability.

Key Specifications

SpecificationCH316
Test channels16, independent counting
Load current30mA~1,000mA (RMS)
Maximum cycles0~1,000,000
On/off time1s to 99h 59min 59s, 1s steps
Power failureData saved; test resumes after power returns
Failure alarmAudible and visual; other channels keep running
SamplesCan be added or replaced during the test
DataCycle count for each sample readable at any time

Features

Applications

Frequently asked questions

What current can each channel carry?

30mA to 1,000mA RMS per channel.

What happens if a sample fails?

The channel raises an audible and visual alarm, and the other 15 channels keep running.
