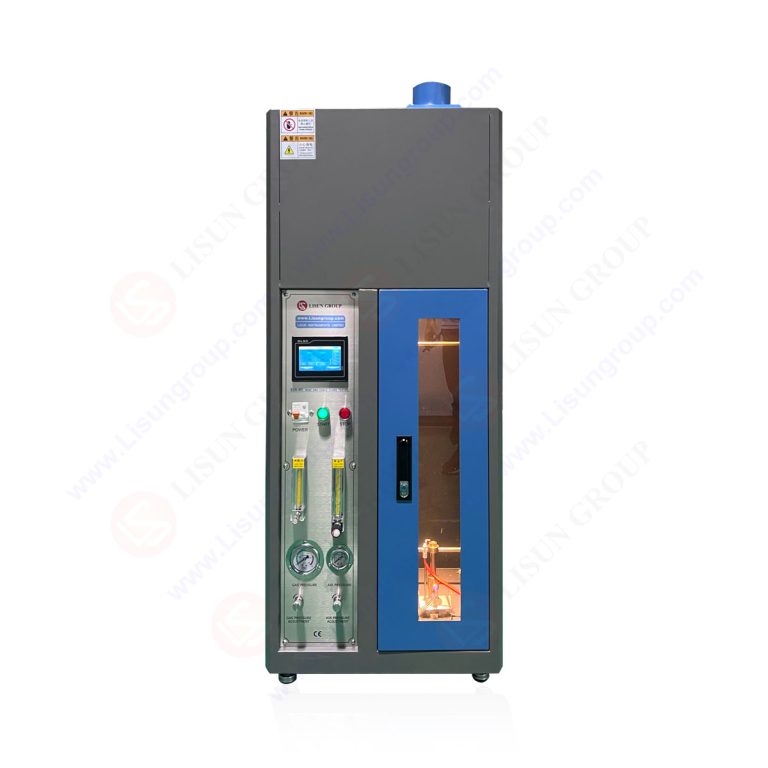

LISUN RSB-ISO19642 Automotive Cable Flame Tester

Overview

Automotive cable insulation must not carry a flame along the harness. ISO 19642-2, ISO 6722-1 and SAE J1128 test this by holding the cable at 45° in a draught-free metal enclosure and applying a Bunsen flame to it for a set time.

The RSB-ISO19642 provides that setup. Its Bunsen burner (9mm bore, to ISO 19642-2) gives an inner blue flame stabilised at 950 ±50°C, applied at 90° to the sample axis with the inner cone tip touching the insulation 500 ±5mm from the top. Flame time is 15s for conductors under 2.5mm² and 30s for 2.5mm² and above, after which the conductor must not have broken. Burn time is preset, flame parameters are easy to adjust, and the stainless steel chamber is separated from the control box.

Key Specifications

ItemSpecification
Burn time setting0.1~999.9s
GeometrySample at 45° to horizontal; burner at 90° to the sample
Gas flow160~1600ml/min
Chamber (L×D×H)(300±25) × (600±25) × (1175±75)mm
GasPropane and air mixture
Calibration blockCopper to IEC 60695-11-2 Fig. A.7, Ø5.5mm, 1.76g
ThermocoupleType K, 0.5mm
Flame temperature950 ±50°C
Flame heightOuter 100mm, inner 50mm
Burner9mm bore, to ISO 19642-2
Construction1.2mm 304 stainless steel; separate control box

Features

Applications

Frequently asked questions

How long is the flame applied?

15 seconds for conductors under 2.5mm² and 30 seconds for 2.5mm² and above.

How is the flame calibrated?

With the supplied copper block and type K thermocouple to IEC 60695-11-2, confirming 950 ±50°C.
