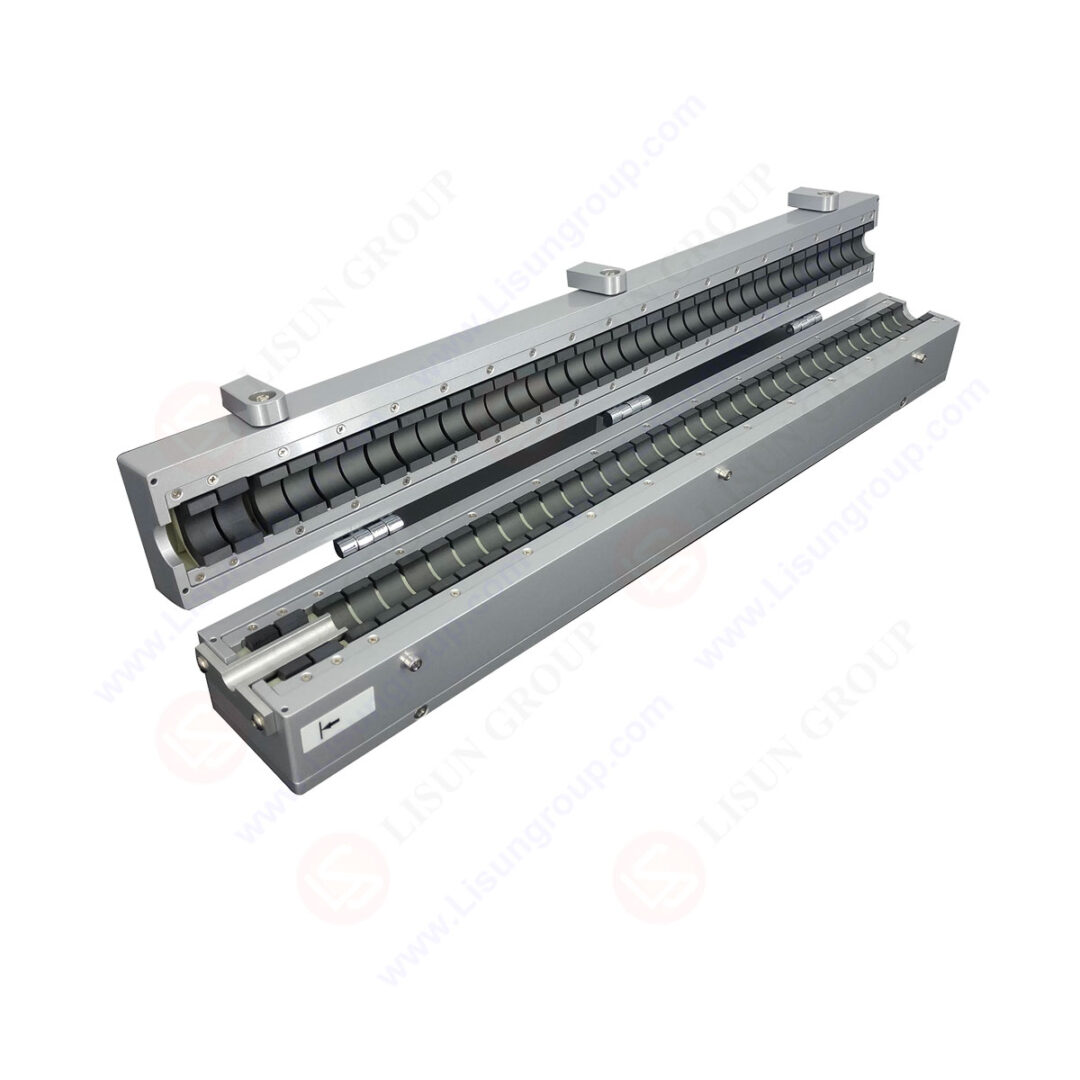

LISUN AB-CLP Absorbing Clamp (CISPR 16-1-3)

Overview

Small household appliances and power tools mainly radiate interference through their mains lead. CISPR 14-1 measures this as disturbance power from 30MHz to 1GHz, using an absorbing clamp moved along the lead. The AB-CLP is built for that method.

It has three parts: a current transformer that samples the interference, a clamp-on ferrite absorber, and a ferrite tube absorber that isolates the measurement from the rest of the cable. Its N-type output connects to LISUN EMI-9K receivers or any other EMI receiver.

How the test works

Key Specifications

ItemSpecification
Frequency range30MHz~1000MHz
Output impedance50Ω
Cable diameter≤20mm
ConnectorN type
Insertion loss13~21dB
Clamp factor-4~+4dB
Decoupling factor DF≥21dB
Decoupling factor DR≥30dB
Size (L×W×H)640×109×100mm
Weight5kg
CalibrationISO 17025 CNAS calibration certificate optional

Features

Applications

Frequently asked questions

Do I need a slide rail?

Yes. CISPR 16-2-2 requires the clamp to be moved along the lead on an insulated rail 0.8m high so the maximum reading can be found.

Does it work with other brands of receiver?

Yes. It has a standard 50Ω N-type output.
