LISUN AC-3M / AC-5M Semi and Full Anechoic Chambers

Overview

An anechoic chamber is a sealed, shielded room that recreates open-field conditions indoors, so radiated emissions (EMI) and radiated immunity (EMS) can be measured without outside signals getting in. It has two parts: the shielded room itself (shell, shielding door, ventilation waveguide windows and power filters) and the absorbers inside it, made of ferrite tiles and carbon-loaded foam cones.

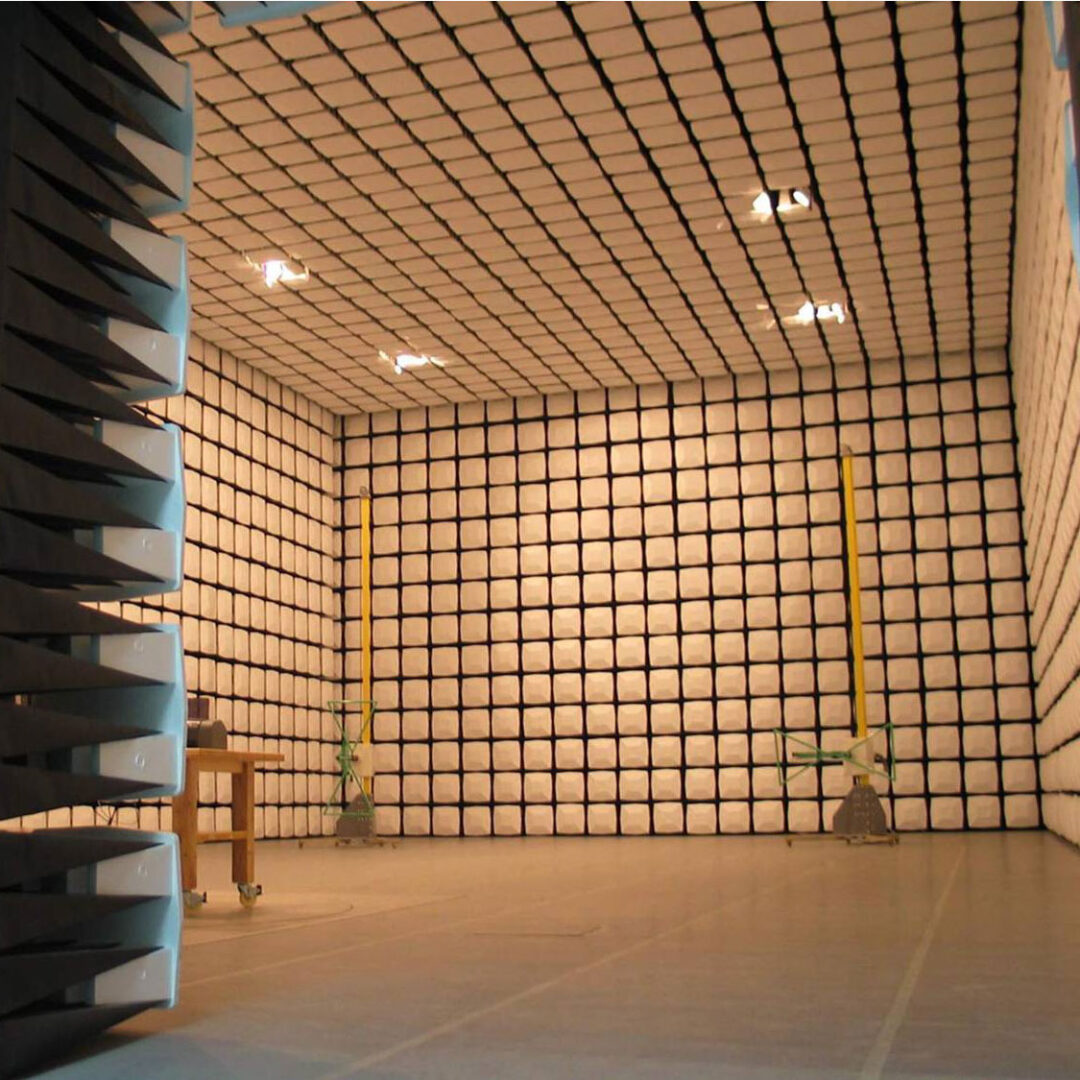

In the AC-3M and AC-5M semi-anechoic chambers, absorbers cover five sides and the conductive floor is left bare. This reproduces an ideal open-area test site with a ground plane, where the antenna sees both the direct and the floor-reflected signal. In the AC-3MF and AC-5MF full-anechoic chambers, all six surfaces are covered, removing reflections to simulate free space.

Chamber size depends on the size of the equipment under test and on whether you test at 3m or 5m. The 3m chambers suit consumer electronics, small appliances and small industrial equipment; the 5m chambers suit automotive electronics, large industrial equipment and communication terminals.

Options

Key Specifications

SpecificationAC-3MAC-3MFAC-5MAC-5MF
TypeSemi-anechoicFull-anechoicSemi-anechoicFull-anechoic
External size (L×W×H)9.5×6.5×6.5m12.5×8.5×7.5m
Quiet zone and test distanceØ2.0m at 3mØ3.0m at 3m and 5m
Frequency range9kHz/30MHz~18GHz
AbsorbersFerrite tiles plus 300mm (3m) or 500mm (5m) EPP hybrid absorbers; semi-anechoic models have bare floor with 9/12m² movable floor absorbers, full-anechoic models cover all six sides
Absorber fire ratingUL94 V-0; EN 13501-1 / DIN 4102 A2
Shielding effectivenessMagnetic: 10kHz ≥80dB, 100kHz ≥100dB, 1MHz ≥100dB; plane wave: 100MHz ≥110dB, 400MHz ≥110dB; microwave: 18GHz ≥90dB
Normalised site attenuation±3.5dB (30MHz~1GHz)
Site VSWR+5.5dB (1GHz~18GHz)
Field uniformity0/+6dB at 75% of 16 points (26/80MHz~18GHz)
VentilationHoneycomb 400×400mm waveguide windows, air conditioning flange
MonitoringCCTV camera and colour monitor rated to 100V/m
Connector panel300×300mm with 6 N(f)-N(f), 2 SMA(f)-SMA(f) and 2 Ø35mm waveguides
FiltersTelephone, network, single-phase 16A and three-phase 32A power filters
ConstructionPrefabricated modular galvanised shielding panels sealed with conductive mesh gaskets; raised floor 1,000kg load
Environment15~30℃, ≤75% RH non-condensing

Features

Applications

Frequently asked questions

Semi-anechoic or full-anechoic?

Most commercial radiated emission standards measure over a ground plane, which needs a semi-anechoic chamber. A full-anechoic chamber simulates free space and suits radiated immunity work and tests where floor reflections must be removed.

3m or 5m?

Choose by the size of the equipment you test and the distance your standard calls for. The 3m chambers have a Ø2m quiet zone; the 5m chambers have a Ø3m quiet zone and support both 3m and 5m.
