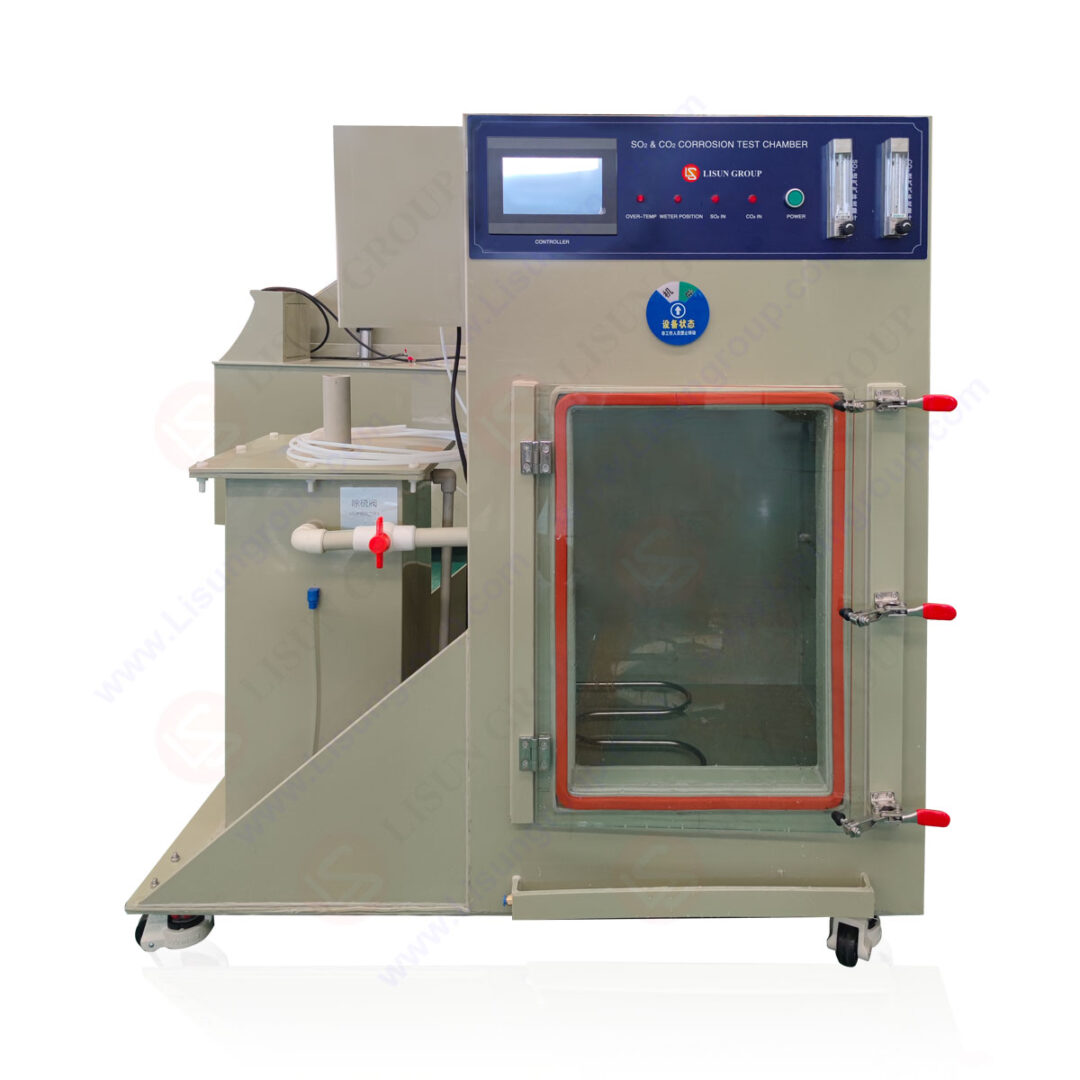

LISUN SQCO-300 300L mixed-gas corrosion chamber for the UL 50E 8.8.2 1200-hour moist CO2/SO2/air test: 0.1–1% SO2 and CO2, 20–50°C, mass flow control.
Enquire About This Product
The LISUN SQCO-300 is a mixed-gas corrosion chamber for the 1200-hour moist carbon dioxide, sulphur dioxide and air test of UL 50E Clause 8.8.2. UL 50E uses this test to check the corrosion protection of enclosures for electrical equipment, and the chamber is also used to compare protective coatings and to evaluate the corrosion resistance of components, electronic parts, metals and industrial products in a polluted, humid atmosphere.
The chamber heats its 300-litre working space to the set temperature and holds it there. Water in a tray in the base keeps the air humid. Sulphur dioxide and carbon dioxide from gas cylinders are metered in through corrosion-resistant mass flow meters until the required concentration is reached, and the test then runs for the set time, up to 9999 hours.
Gas flow is calculated from the chamber volume and the target volume ratio and set on the controller, so concentrations from 0.1% to 1% of each gas can be held.
| Parameter | Value |
|---|---|
| Working volume | 300L; inside 900 × 600 × 550mm |
| External size | 1400 × 730 × 1550mm |
| Temperature range | 20–50°C, adjustable |
| Temperature uniformity | ≤±2°C |
| Temperature fluctuation | ≤±0.5°C |
| Temperature resolution | 0.01°C |
| Humidity | Water tray in chamber base |
| SO2 concentration | 0.1–1% by volume |
| CO2 concentration | 0.1–1% by volume |
| Gas supply | Cylinders, metered by corrosion-resistant mass flow meters |
| Test time | Up to 9999h |
| Power | Single-phase 220V (110V available), 2kW |
| Installation | Ambient 5–30°C, ≤85%RH, well ventilated, no corrosive or flammable gases |
UL 50E Clause 8.8.2 specifies a 1200-hour exposure; the chamber can run up to 9999 hours.
The chamber uses bottled SO2 and CO2; cylinders are normally sourced locally by the user.
