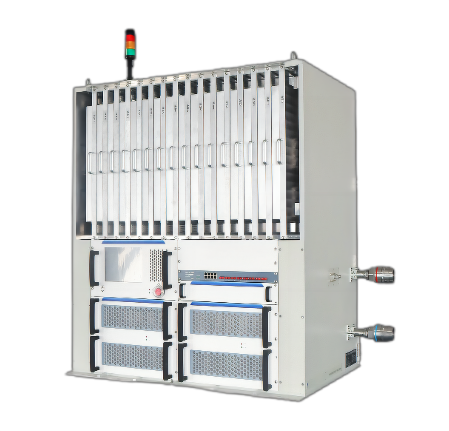

10kHz-150MHz CW Radiation System — RFlight HIRF System
RFlight 10kHz–150MHz Continuous Wave HIRF Radiation System — high-power CW radiation system for low and medium frequency HIRF testing. For aircraft, military and large-system HIRF susceptibility.
Enquire About This Product
Overview
RFlight's 10kHz–150MHz Continuous Wave Radiation System provides the lower-frequency portion of HIRF testing capability. This frequency range is covered by large loop antennas and rod antennas for generating the required high-field strengths needed for aircraft and military system HIRF testing.
The system is designed for outdoor or large indoor HIRF test environments where the test object (aircraft, vehicle or large system) is surrounded by antenna structures. High-power amplifiers drive the antennas to achieve the required field strengths specified in DO-160, GJB151C and related HIRF standards.
Key Specifications
Frequency: 10kHz–150MHz | Type: CW radiation | Application: HIRF susceptibility testing of aircraft and large systems | High-power amplifiers + antennas
Features
- 10kHz–150MHz CW HIRF radiation
- High-field strength generation
- For aircraft and large system HIRF testing
- Outdoor and indoor HIRF environments
- High-power amplifier driven antenna system
Applications
Aircraft low-frequency HIRF susceptibility; Military ground vehicle HIRF testing; Ship electromagnetic hardening; Large system HIRF certification
