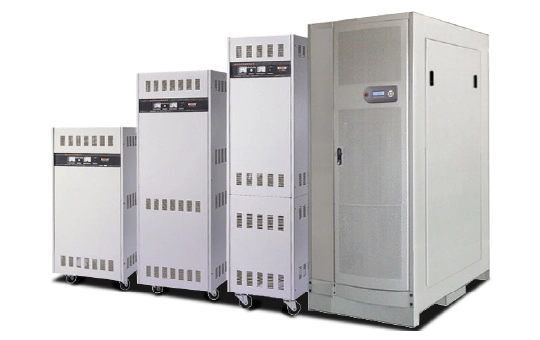

Preen APS Series

Solid State Power Conditioner

Not every power quality problem calls for the same fix. Where the issue is fast voltage fluctuation — sags, surges, and rapid variation that disrupts sensitive equipment — a solid-state power conditioner using electronic compensation responds quickly, correcting the output before the fluctuation reaches the load. Preen's APS series is built for exactly this: fast-response voltage regulation holding ±2-4% line and load regulation, with a response time of 500ms or less.

That speed matters most in applications where even a brief voltage excursion causes a problem — SMT production lines, where voltage instability can affect process consistency; medical equipment, where power quality has direct safety implications; telecom stations, where continuous stable power is operationally critical; and EMC labs, where the test environment's own power quality needs to be clean enough not to interfere with the measurements being made. Efficiency reaches up to 98% at full load, and the range covers single-phase (1-100kVA) and three-phase (10-300kVA) configurations, with overload capability of 150% for 15 seconds, 130% for 30 seconds or 110% for 300 seconds covering transient demand spikes.

For sites without dedicated indoor equipment space — telecom base stations, outdoor enclosures, and other remote installations — a customised outdoor cabinet rated to IP54 is available, extending the same fast-response conditioning capability to locations where a standard indoor-rated unit wouldn't be appropriate.

Preen APS Series
Inquire About This Range →
APS Series
Available as a Containerized / IP54 Option
Like Preen's BPS shore power series, the APS Series can be built into a customized outdoor container or upgraded to an IP54-rated enclosure as an optional configuration — useful for ports, construction sites, remote installations, and other high humidity, heat, dust, or corrosion-exposed environments. Standard indoor chassis remain the default; contact Finch to configure a containerized or IP54 version for your application.
Preen APS Series

APS Series — All Models

Solid-state power conditioner, up to 98% efficiency, ±18% (opt. ±25%) input range.
Enquire About This Series →

Technical Specifications

Output PowerSingle-phase and three-phase models up to 300kVA
Input Voltage RangeRated voltage ±18% to ±25% (wide input tolerance)
Regulation AccuracyLine and load regulation ±2% to ±4%
Response Time≤ 500ms
Overload Capability150% for 15s · 130% for 30s · 110% for 300s
EfficiencyUp to 98% at full load
Input Power Factor≥0.95
ProtectionsOvervoltage, overcurrent, overload, input under-voltage and over-temperature protection
Optional FeaturesEMI filter, surge protection (selectable levels), customised outdoor cabinet rated IP54 (IEC 60529)
CertificationsCE marked for electromagnetic compatibility
Typical ApplicationsMobile/laptop SMT production lines, medical equipment, communications equipment and stations, EMC testing/laboratory use
ModelPowerConfigurationVoltageMax CurrentWeight
APS-110011kVA1Φ2W+G220V4A10kgSpecs
APS-110022kVA1Φ2W+G220V9A—Specs
APS-110033kVA1Φ2W+G220V13A20kgSpecs
APS-110055kVA1Φ2W+G220V22A—Specs
APS-110077.5kVA1Φ2W+G220V33A35kgSpecs
APS-1101010kVA1Φ2W+G220V43A—Specs
APS-1101515kVA1Φ2W+G220V65A45kgSpecs
APS-1102020kVA1Φ2W+G220V87A—Specs
APS-1103030kVA1Φ2W+G220V130A200kgSpecs
APS-1104040kVA1Φ2W+G220V174A—Specs
APS-1105050kVA1Φ2W+G220V217A—Specs
APS-1106060kVA1Φ2W+G220V261A350kgSpecs
APS-1108080kVA1Φ2W+G220V348A—Specs
APS-11100100kVA1Φ2W+G220V435A430kgSpecs
APS-3301010kVA3Φ4W+G220V43A80kgSpecs
APS-3301515kVA3Φ4W+G220V65A—Specs
APS-3302222kVA3Φ4W+G220V96A—Specs
APS-3303030kVA3Φ4W+G220V130A150kgSpecs
APS-3304545kVA3Φ4W+G220V196A—Specs
APS-3306060kVA3Φ4W+G220V261A230kgSpecs
APS-3307575kVA3Φ4W+G220V326A—Specs
APS-33100100kVA3Φ4W+G220V435A430kgSpecs
APS-33120120kVA3Φ4W+G220V522A—Specs
APS-33150150kVA3Φ4W+G220V652A—Specs
APS-33180180kVA3Φ4W+G220V783A660kgSpecs
APS-33240240kVA3Φ4W+G220V1043A—Specs
APS-33300300kVA3Φ4W+G220V1304A750kgSpecs

Frequently Asked Questions

What's the difference between the APS (solid-state) and APH (inductive) voltage regulators?
The APS uses solid-state electronic compensation (response time ≤500ms per Preen), suited to applications where quick correction of fluctuation matters most. The APH uses an inductive, brushless design that responds more slowly but sustains higher overload for longer periods, suited to motor and industrial applications where raw overload capacity matters more than millisecond-level response speed.
Why would I need the IP54 outdoor cabinet option instead of a standard indoor unit?
Telecom base stations and similar remote sites often don't have climate-controlled indoor equipment space available. The IP54-rated outdoor cabinet lets the same voltage conditioning function be deployed directly at the site without needing to build or lease indoor housing purely to accommodate the equipment.
What kind of voltage problems is the APS actually correcting?
The APS addresses input voltage fluctuation — sags, surges, and variation from the incoming supply — correcting it to a stable, regulated output before it reaches connected equipment. It's a power conditioning function, distinct from backup power (which the APS doesn't provide) or from AC source/simulation functions used in product test applications.
