RFlight Microwave Power Amplifier Modules, 1–40GHz
RFlight solid-state microwave power amplifier modules from 1GHz to 40GHz: driver modules up to ≥45dB gain, final-stage modules up to ≥50W, and -4C assemblies with CAN communication.
Enquire About This Product
Overview
When an amplifier has to sit inside a system rather than on a bench, such as a radar or communications transmitter, an EMC test system or a custom RF build, it is usually integrated as a module. RFlight's NTMPA modules are all-solid-state amplifiers with built-in voltage, current and temperature detection and switching control, and protection functions for reliable long-term operation.
The range falls into three groups:
- Front-end / driver modules (NTMPA-2018010, NTMPA-1804008) are compact (48 × 48mm), high-gain modules that raise a low-level signal to around 8–10W. They often drive a final-stage module.

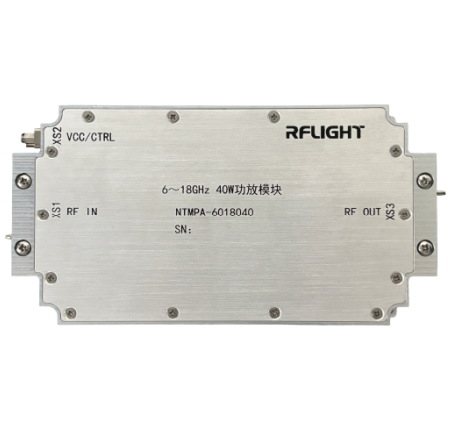

- Final power amplifier modules (NTMPA-106050, NTMPA-6018040, NTMPA-18026540, NTMPA-26540030) deliver 30–50W with lower gain, and sit at the end of the chain, just before the antenna or load.
- -4C power amplifier modules (NTMPA-104030-4C, NTMPA-1802658-4C) are larger high-gain assemblies with CAN communication and specified harmonic suppression, for system builds that need control over a bus.
How to choose
Start with the frequency band, then the output power you need at the end of the chain. Check the gain against your available drive level: a final-stage module with ≥18dB gain needs a much stronger input than a ≥45dB driver. Allow for the supply current and heat dissipation of the final-stage modules in your mechanical design.
Key Specifications
| Model | Type | Frequency | Output power | Gain | Flatness / harmonics | Supply | Size | Weight |
|---|---|---|---|---|---|---|---|---|
| NTMPA-2018010 | Driver | 2–18GHz | ≥10W | ≥39dB | ≤±3dB | ≤28V / 2.3A | 48 × 48 × 20.5mm | ≤0.13kg |
| NTMPA-1804008 | Driver | 18–40GHz | ≥8W | ≥45dB | ≤±5.5dB | ≤18V / 5A | 48 × 48 × 20.5mm | ≤0.13kg |
| NTMPA-106050 | Final | 1–6GHz | ≥50W | ≥21dB | ≤±4dB | ≤28V / 12.5A | 218.74 × 140.04 × 20.5mm | ≤1.5kg |
| NTMPA-6018040 | Final | 6–18GHz | ≥40W | ≥18dB | ≤±3.5dB | ≤28V / 12A | 150 × 78 × 32mm | ≤0.8kg |
| NTMPA-18026540 | Final | 18–26.5GHz | ≥40W | ≥14.5dB | ≤±3dB | ≤22V / 10A | 76 × 78 × 28mm | ≤0.38kg |
| NTMPA-26540030 | Final | 26.5–40GHz | ≥30W | ≥9dB | ≤±5dB | ≤20V / 11.5A | 76 × 78 × 28mm | ≤0.38kg |
| NTMPA-104030-4C | -4C, CAN | 1–4GHz | ≥30W | ≥52dB | Harmonics ≥13.6dBc | ≤28V / 7A | 298 × 300 × 28mm | ≤5kg |
| NTMPA-1802658-4C | -4C, CAN | 18–26.5GHz | ≥8W | ≥38dB | Harmonics ≥20dBc | ≤20V / 15A and ≤12V / 1A | 195 × 161.5 × 16mm | ≤1kg |
Specifications from RFlight's published technical indicators.
Features
- All-solid-state design covering 1GHz to 40GHz
- Driver modules with ≥39–45dB gain in a 48 × 48mm package
- Final-stage modules from ≥30W to ≥50W
- Integrated voltage, current and temperature detection with switching control
- Built-in protection for high reliability
- -4C modules with CAN communication
Applications
RF and microwave system integration; radar and wireless communications transmitters; EMC radiated immunity test systems; driver and final stages for high-power amplifier racks; medical microwave applications.
