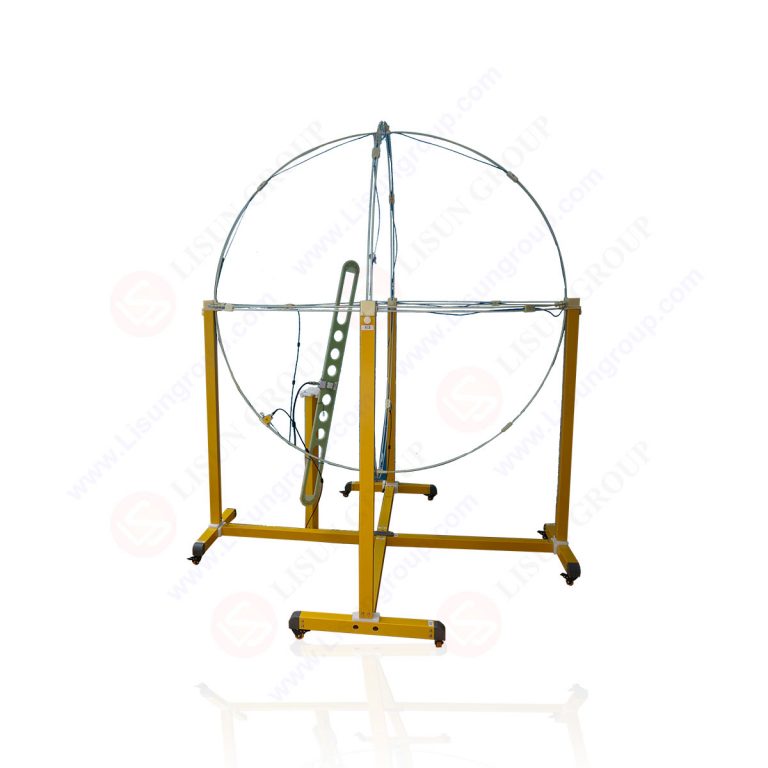

LISUN VVLA-30M Triple Loop Antenna (Van Veen Loop), 9kHz–30MHz
LISUN VVLA-30M triple loop (Van Veen) antenna for magnetic-field radiated emission testing of lighting and similar equipment from 9kHz to 30MHz, to CISPR 15 / EN 55015.
Enquire About This Product
Overview
Lighting products and similar equipment must be tested for the magnetic-field emissions they radiate between 9kHz and 30MHz. At these frequencies the test uses a triple loop antenna, also called a Van Veen loop: three large orthogonal loops surround the equipment under test, so the magnetic field is picked up on all three axes without moving the product.
LISUN's VVLA-30M is built for this test. The X, Y and Z loops can be switched freely, so full-angle measurements need no repositioning, which removes displacement errors. It assembles without screws, comes with a height-adjustable, expandable test platform (up to 50kg), and is factory-calibrated with a built-in calibration antenna. Its 50Ω N-type output connects to LISUN EMI-9K series EMI receivers or other receivers of the same specification. LISUN recommends using it in an RF shielded room or a 3m semi-anechoic chamber.
How to choose
The VVLA-30M has 2m loops for typical luminaires and lighting equipment. The VVLA-30MA has 3m loops for larger products. For weak signals, LISUN offers the optional LS-LNA09K1000 preamplifier (9kHz–1GHz, gain above 30dB, 2.5dB noise figure).
Key Specifications
| Specification | VVLA-30M | VVLA-30MA |
|---|---|---|
| Frequency range | 9kHz–30MHz | 9kHz–30MHz |
| Loop diameter | 2m | 3m |
| Test axes | X/Y/Z, freely switchable | X/Y/Z, freely switchable |
| Current probe coefficient | 0dB | 0dB |
| Connector | 50Ω N-type | 50Ω N-type |
| Assembled size (Ø × H) | 2100 × 2550mm | 3200 × 3750mm |
| Packed size (L × W × H) | 2000 × 400 × 400mm | 2500 × 400 × 400mm |
| Packed weight | 40kg | 60kg |
| Calibration | Factory-calibrated (ISO 17025 third-party report optional), built-in calibration antenna | Factory-calibrated (ISO 17025 third-party report optional), built-in calibration antenna |
| Test platform | Integrated, height-adjustable and expandable, max 50kg | Integrated, height-adjustable and expandable, max 50kg |
Specifications from LISUN's published data.
Features
- Magnetic-field radiated emission testing from 9kHz to 30MHz
- X/Y/Z three-axis loops, switchable without moving the product
- Screwless quick assembly
- Integrated height-adjustable test platform (max 50kg)
- Factory-calibrated with built-in calibration antenna
- 50Ω N-type output for LISUN EMI-9K and other EMI receivers
Applications
Magnetic-field radiated disturbance testing of electrical lighting and similar equipment (CISPR 15 / EN 55015); EMC pre-compliance and compliance labs; use inside an RF shielded room or 3m semi-anechoic chamber with an EMI receiver or spectrum analyser.
