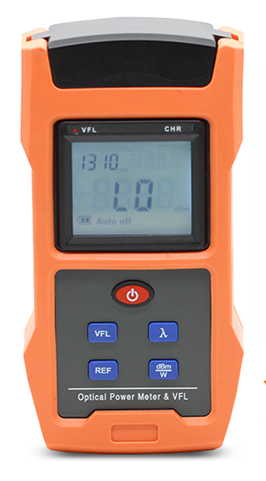

X-0563 — XHFiber Optical Power Meter + VFL
SHINHO X-0563 Optical Power Meter and VFL — combined OPM and Visual Fault Locator, 240+ hour battery, dBm/mW/dB, for Telecom/CATV/lab. Up to 4 wavelengths.
Enquire About This Product
Overview
The SHINHO X-0563 combines an optical power meter and Visual Fault Locator (VFL) in a single compact unit. Measures absolute power in dBm/mW and insertion loss in dB. More than 240 hours continuous operation. Up to 4 wavelength measurement. Tone generation at 270Hz, 1kHz and 2kHz. USB communication for PC data transfer. User auto-calibration function. Broad power measurement range with high precision. For Telecom, CATV and Fiber Optic Lab testing.
Key Specifications
Functions: OPM + VFL | Power units: dBm, mW, dB | Battery: 240+ hours | Wavelengths: up to 4 | Tone: 270Hz, 1kHz, 2kHz | USB PC interface
Features
- Combined optical power meter and VFL
- 240+ hours continuous operation
- dBm, mW and dB measurement
- Up to 4 wavelengths
- Tone generation 270Hz/1kHz/2kHz
- USB PC interface
- User auto-calibration
Applications
Telecom and CATV fiber testing; Fiber optic laboratory; Insertion loss measurement; Link power level verification; VFL fault location
