XHFiber
X-0512 — XHFiber Optical Light Source
X-0512
SHINHO X-0512 Mini Optical Light Source — 850/1300nm or 1310/1550nm wavelengths, tone generation 270Hz/1kHz/2kHz, pocket size, stable output power. For insertion loss testing.
Enquire About This Product
📷 View Gallery
Overview

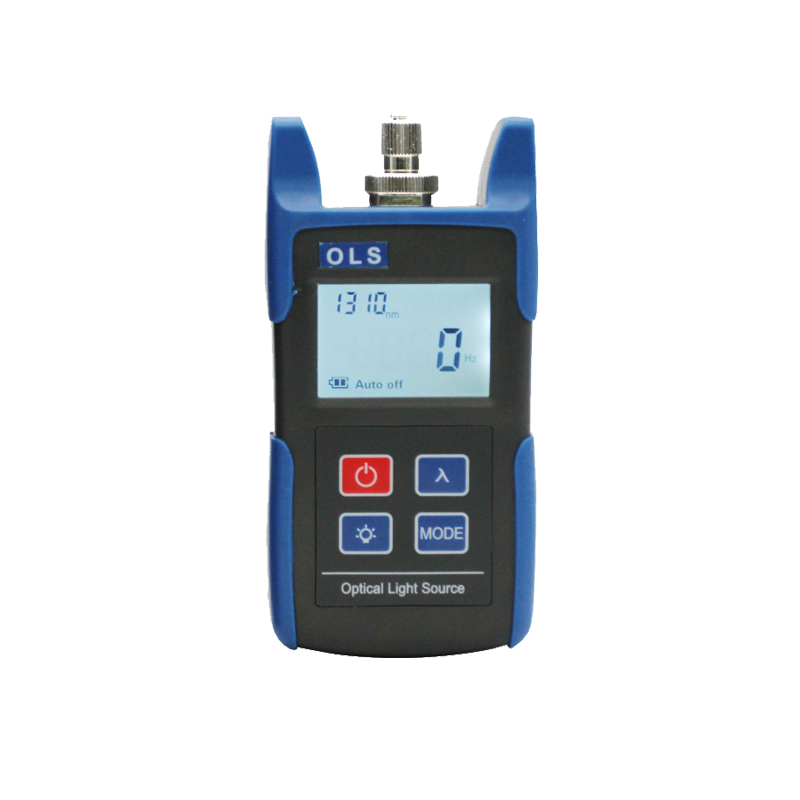

The SHINHO X-0512 is a mini optical light source with 850/1300nm (MM) or 1310/1550nm (SM) wavelength options. Tone generation at 270Hz, 1kHz and 2kHz. Constant and stable output power. Pocket size and light weight. For use with optical power meters in insertion loss testing.
Key Specifications
Wavelengths: 850/1300nm or 1310/1550nm | Tone: 270Hz, 1kHz, 2kHz | Size: pocket (mini) | Output: constant and stable
Features
- Mini pocket optical light source
- 850/1300nm or 1310/1550nm options
- Tone generation 270Hz/1kHz/2kHz
- Constant stable output power
- For insertion loss testing with power meter
Applications
Fiber insertion loss measurement; OTDR dead zone companion; Cable plant acceptance testing; Telecom and CATV field testing
