Overview

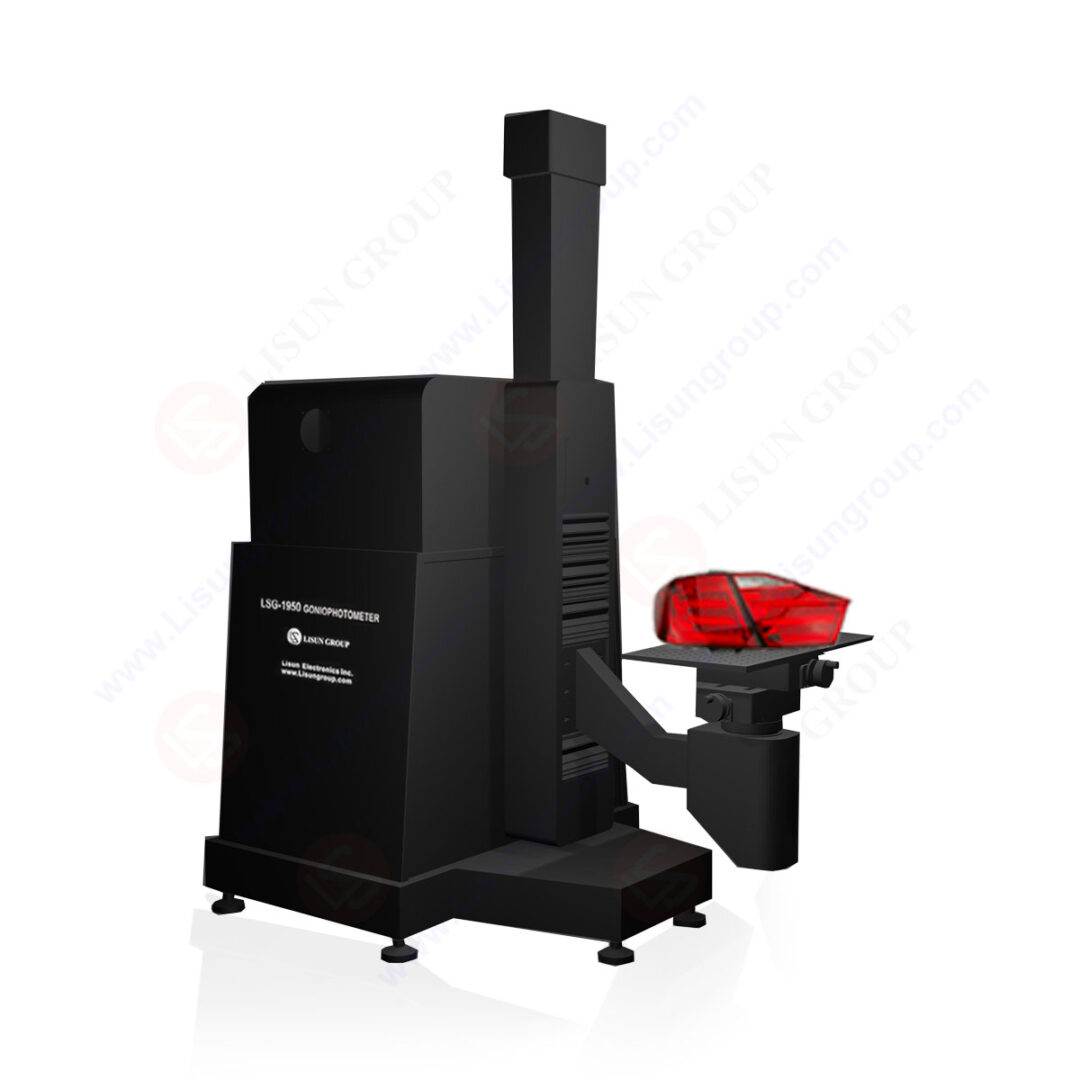

The LSG-1950 is a CIE A-α Goniophotometer specifically designed to test automotive lighting, traffic signals, bus, train, ship and aircraft lighting. The photometer head remains static facing the test sample while the sample rotates around both horizontal and vertical axes, enabling measurement of luminous intensity and illuminance.
Designed to EN, IEC, GB, ECE, SAE and FMVSS108 standards, the LSG-1950 provides angle accuracy of 0.01° and angle resolution of 0.001°, with Class A photometry accuracy. Testing accuracy is 2% under standard lamp, with stray light less than 0.1%. The instrument can test lamps weighing up to 35kg.
English software runs on Windows 7, 8, 10 and 11.
Key Specifications
Angle accuracy: 0.01° | Angle resolution: 0.001° | Photometry accuracy: CIE Class A (Class L optional) | Testing accuracy: 2% (under standard lamp) | Stray light: <0.1% | Max lamp weight: 35kg | OS: Win7/8/10/11
Features
- CIE A-α measurement geometry — static photometer head, rotating sample
- Angle accuracy 0.01°; resolution 0.001°
- CIE Class A photometry (Class L optional)
- Stray light < 0.1%
- Tests lamps up to 35kg
- English software, Windows 7–11
Applications
Automotive lighting (headlamps, rear lamps); Traffic signal lamps; Bus, train, ship, aircraft lighting; Compliance testing to ECE and FMVSS108
