LSG-1200A — LISUN Goniophotometer

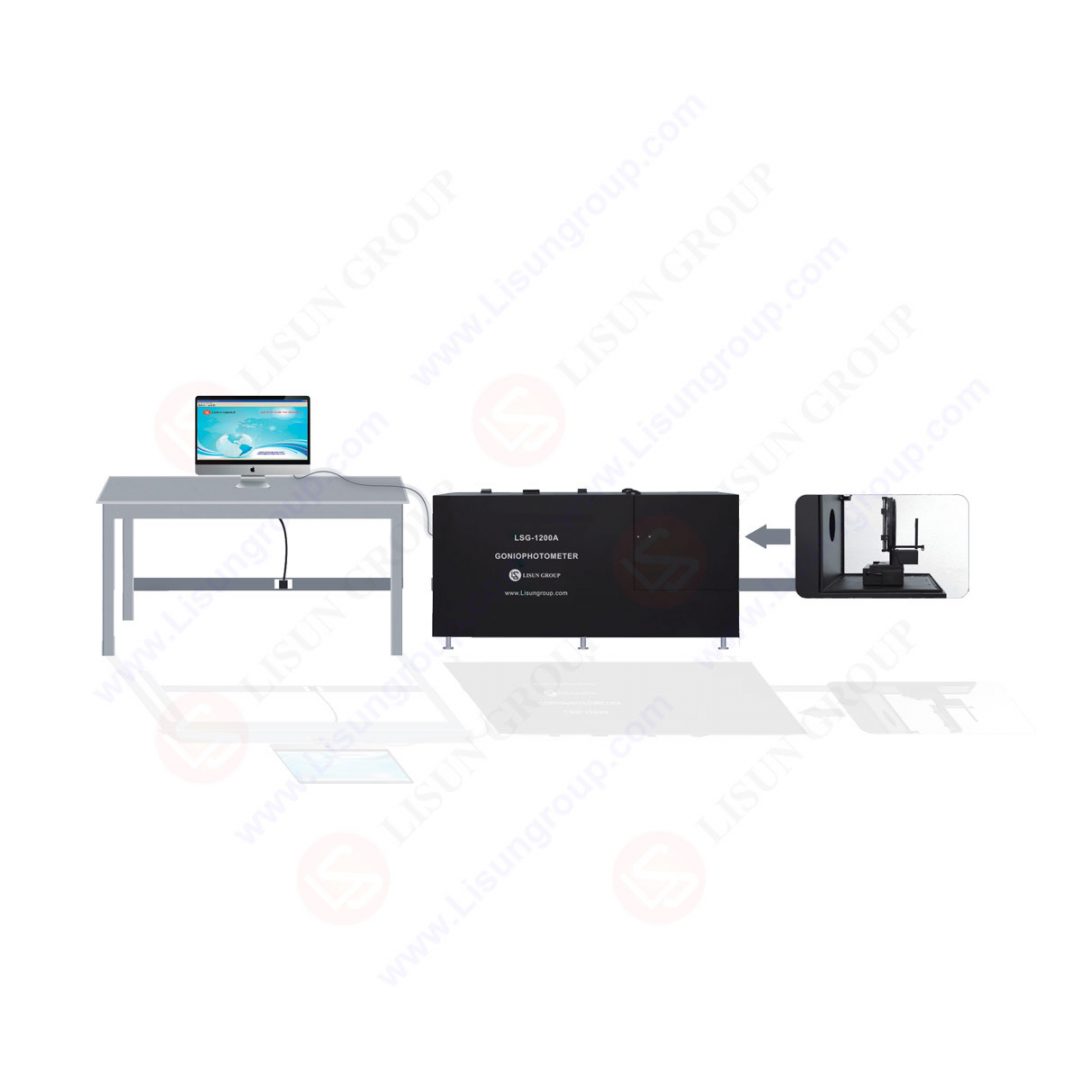

The LSG-1200A compact goniophotometer measures luminous intensity distribution, intensity data, spread angle and other parameters for chip LEDs, LED modules, LED spotlights and all lights with a beam angle no greater than 180 degrees. The instrument includes its own dark chamber.

Measurement outputs include Illuminance at a Distance, Photometric (luminous intensity distribution), and Isocandela diagrams. The system automatically measures beam angles including standard half-intensity angle, plus 1/4, 3/4 and 1/10 intensity angles.

Measured data is output in IES format and compatible with DiaLux. The detector has a test range of 0.1–30,000cd at Class A accuracy. Horizontal and vertical rotation are fully automated (0–360° and -90° to +90° respectively). Can interface with LISUN Digital Power Meters and AC/DC Power Sources.

Test range: 0.1–30,000cd | Detector accuracy: Class A | Max lamp size: 180mm | Detector distance: 316mm / 1000mm | Horizontal rotation: 0–360° automatic | Vertical rotation: -90° to +90° automatic | Angle accuracy: ±0.2° | Horizontal angle intervals: 1°/5°/10°/15°/22.5°/30°/45°/90° | Vertical angle intervals: 0.5°/2°/1.5°

• Compact self-contained unit with dark chamber included
• Measures chip LEDs, LED modules, LED spotlights up to 180° beam
• Auto beam angle measurement: half, 1/4, 3/4, 1/10 intensity angles
• Class A detector; range 0.1–30,000cd
• Full horizontal (0–360°) and vertical (-90° to +90°) auto rotation
• IES export format (DiaLux compatible)
• Integrates with LISUN power meters and power sources

Chip LED and LED module characterisation; LED spotlight and downlight testing; Beam angle measurement; R&D and production QC for LED products
