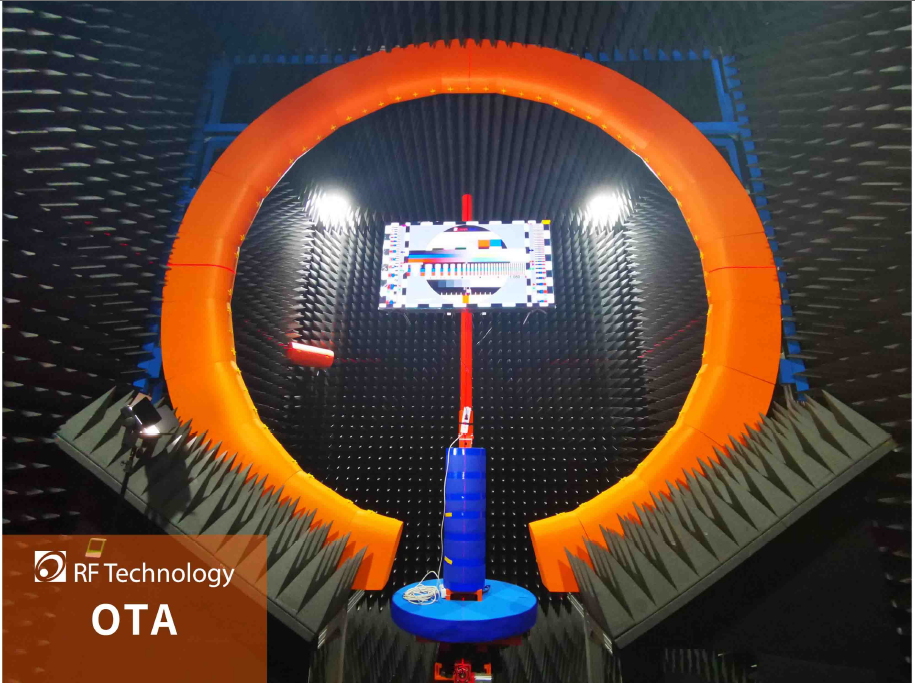

ANT-OTA — RF Technology Antenna / Microwave Anechoic Chamber
RF Technology OTA Testing Chamber — Over-the-air testing; 5G and wireless device performance. Turnkey supply and installation by Finch.
Enquire About This Product
Overview
The RF Technology Antenna Chamber range provides specialist microwave anechoic environments for antenna measurement, radar, and high-frequency electromagnetic testing. The range includes Near Field Testing Chambers, Far Field Testing Chambers, and Compact Range/RCS Testing Chambers, each tailored to specific antenna measurement methodologies.
Near Field Chambers collect near-field amplitude and phase data and derive far-field radiation characteristics through mathematical transformation, accommodating planar, cylindrical, and spherical near-field scanning configurations. Far Field Chambers provide direct far-field antenna pattern measurement at sufficient separation distance. Compact Range Chambers use a precision parabolic reflector to create a planar wave in a compact space, enabling far-field testing of large antennas and RCS measurements of aircraft, satellites, and vehicles in a much smaller facility.
All chambers feature dense microwave absorber treatment for high performance at millimetre-wave frequencies, with shielding construction and door systems appropriate to the test requirement. Suitable for 5G millimetre-wave antenna testing, satellite payload testing, radar system characterisation, and high-performance antenna R&D. Supplied and installed in Australia by Finch Electronic Solutions.
Key Specifications
Type: OTA Testing Chamber | Over-the-air testing; 5G and wireless device performance | Microwave absorber treatment | Custom frequency range and quiet zone | Shielding: pan-type galvanised steel | Custom dimensions on enquiry
Features
- Near Field Chamber: planar, cylindrical, and spherical scanning configurations
- Far Field Chamber: direct far-field antenna pattern measurement
- Compact Range/RCS Chamber: planar wave generation for large-antenna and RCS testing
- Suitable for 5G mmWave, satellite, radar, and high-frequency antenna measurement
- Dense microwave absorber treatment for high performance at mmWave frequencies
- Shielding and door systems to suit measurement methodology
- Custom sizing and absorber specification available
- Turnkey supply and installation by Finch Electronic Solutions
Applications
Antenna radiation pattern measurement; Antenna gain, directivity, and efficiency characterisation; Near-field to far-field transformation; Radar Cross Section (RCS) measurement; 5G millimetre-wave antenna testing; Satellite antenna and payload testing; Compact range system testing for large aperture antennas; Whole-satellite star testing; Aircraft scattering characteristics measurement
