ActionPower HELION Hybrid AC/DC Modular System

One Mainframe, Interchangeable PV, DC, and AC Modules for Combined Inverter Test

The HELION Hybrid AC/DC Modular System combines a shared rack-mount mainframe with interchangeable PV simulation, bidirectional DC, and AC modules, letting a single chassis be configured for the exact mix of solar array simulation, battery/DC bus emulation, and AC grid interaction a test program needs — without committing to a fixed configuration upfront or running separate standalone instruments.

Every module shares the same fast 0.8ms transient response and tight ±(0.02% + 30mV) voltage accuracy, so labs can scale from PV-only testing today to combined PV + battery + AC grid validation tomorrow. The mainframe itself hosts up to 6 independent channels and 9.9kW total capacity across any mix of module types, with up to 3kW available per channel.

ActionPower HELION Hybrid AC/DC Modular System

Shared mainframe hosts any combination of HELION AC, DC, and PV modules
Up to 6 independent channels per mainframe, 9.9kW total capacity, 3kW max per channel
PV modules reproduce I-V curve behaviour directly for realistic MPPT validation
DC modules provide true two-quadrant bidirectional battery and DC bus emulation
AC modules extend frequency range to 5000Hz for combined AC/DC inverter test
All modules share 0.8ms transient response and ±(0.02% + 30mV) voltage accuracy

Mainframe (Chassis Platform)

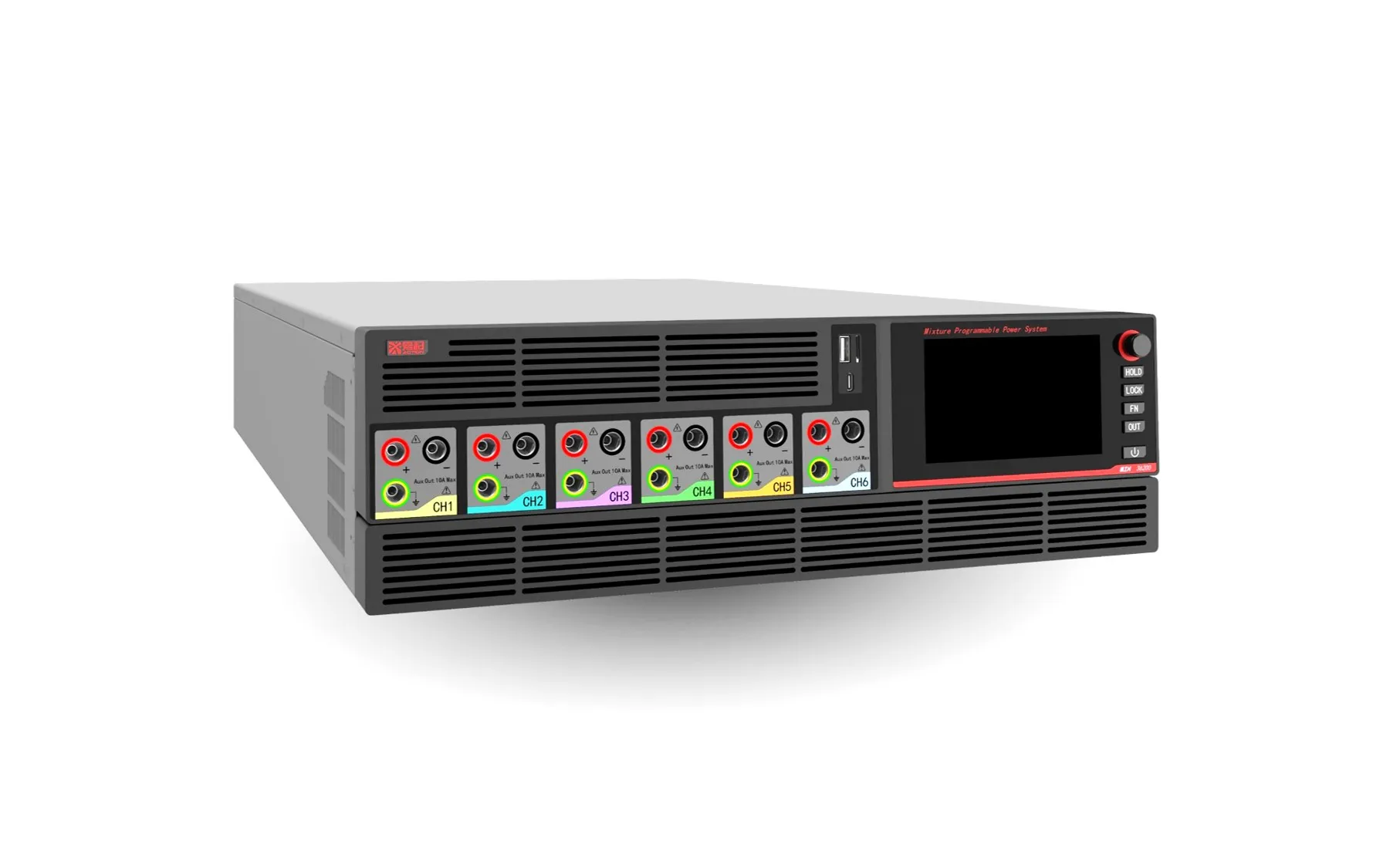

6-channel modular chassis that accepts any combination of PV, bidirectional DC, and AC modules below.

Enquire

Model	Total Power	Channels	Max Channel Power
H-C6-9.9	9.9kW	6	3kW	Enquire
H-C6-6.6	6.6kW	6	3kW	Enquire

PV Simulation DC Module

Unidirectional DC source channels that simulate photovoltaic I-V curves for inverter and MPPT testing.

Enquire

Model	Power	Voltage	Current
D2-3.0-100-60	3.00kW	0–100V	60A	Enquire
D2-3.0-160-50	3.00kW	0–160V	50A	Enquire
D2-1.6-100-45	1.65kW	0–100V	45A	Enquire
D2-1.6-160-30	1.65kW	0–160V	30A	Enquire
D2-0.8-100-30	0.85kW	0–100V	30A	Enquire
D2-0.8-160-15	0.85kW	0–160V	15A	Enquire

Bidirectional DC Module

Two-quadrant DC channels for battery, motor, and general bidirectional DC load/source testing.

Enquire

Model	Power	Voltage	Current
D1-3.0-100-60	±3.00kW	0–100V	±60A	Enquire
D1-3.0-160-50	±3.00kW	0–160V	±50A	Enquire
D1-1.6-100-45	±1.65kW	0–100V	±45A	Enquire
D1-1.6-160-30	±1.65kW	0–160V	±30A	Enquire
D1-0.8-100-30	±0.85kW	0–100V	±30A	Enquire
D1-0.8-160-15	±0.85kW	0–160V	±15A	Enquire

AC Module

AC/DC output channels covering DC to 5000Hz for power quality and frequency-sensitive testing.

Enquire

Model	Power	AC/DC Current	Frequency
A1-3.0-450-16	3kVA	±16A	DC, 0.001Hz–5000Hz	Enquire
A1-1.6-450-16	1.6kVA	±16A	DC, 0.001Hz–5000Hz	Enquire
